Page | 44

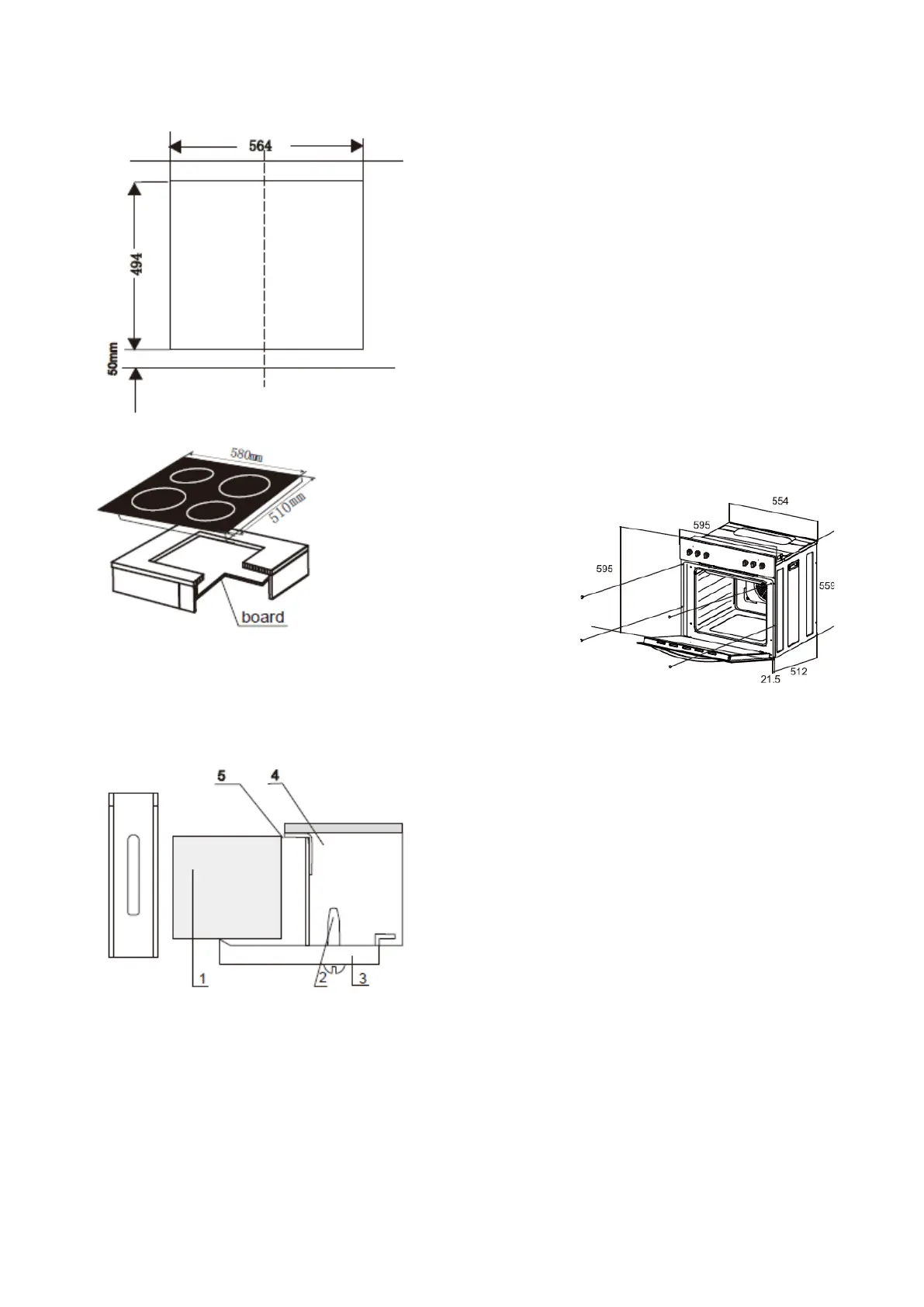

Figure 5 Worktop section
Figure 6 Glass ceramic hob
All dimensions in mm
Saw out worktop according to
dimensions 564 x 494 mm
Glass Ceramic Hob
Outer dimensions (frame)
Oven dimensions
in mm
Figure 7 Side of oven
