Dalbach HE01 - The Right Installation Location

EN
Page | 43

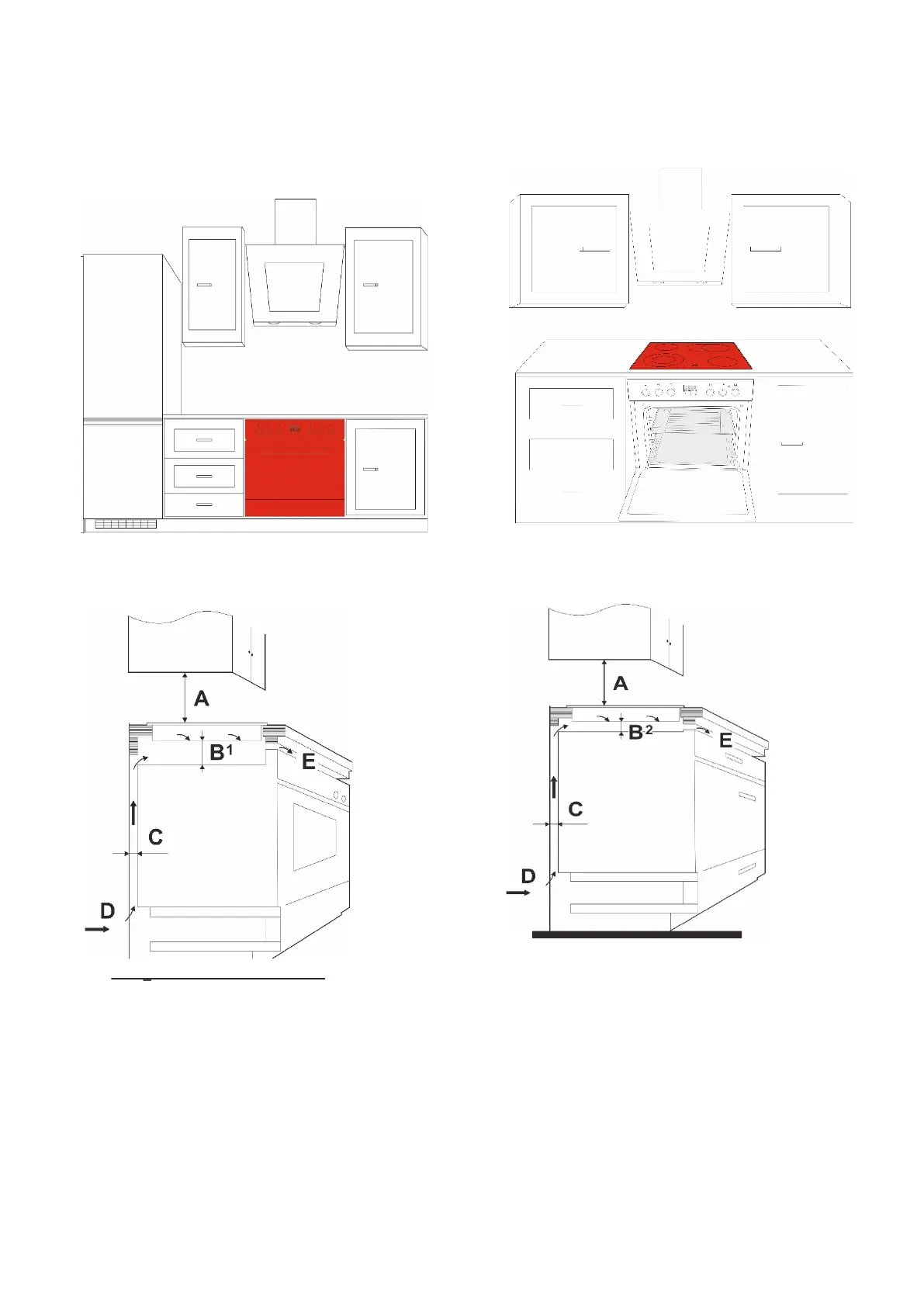

12.1 The right installation location
A760 mm_B2 15 mm /50 mm min
C 20 mm min_
D Air inlet_
E air outlet min 5 mm
Figure 1 Oven position
Figure 2 Glass ceramic hob position
A760 mm_B1 50 mm /50 mm min
C 20 mm min_
D Air inlet_
E air outlet min 5 mm
Figure 7 Without heat source
Figure 8 Without heat source
