Danby DPAC8KDB - Installation Guide; Installation Accessories; Window Kit Installation

INSTALLATION
sj| ELECTRIC SHOCK HAZARD: To avoid the possibility of personal injury, disconnect power to
V the unit before installing or servicing.

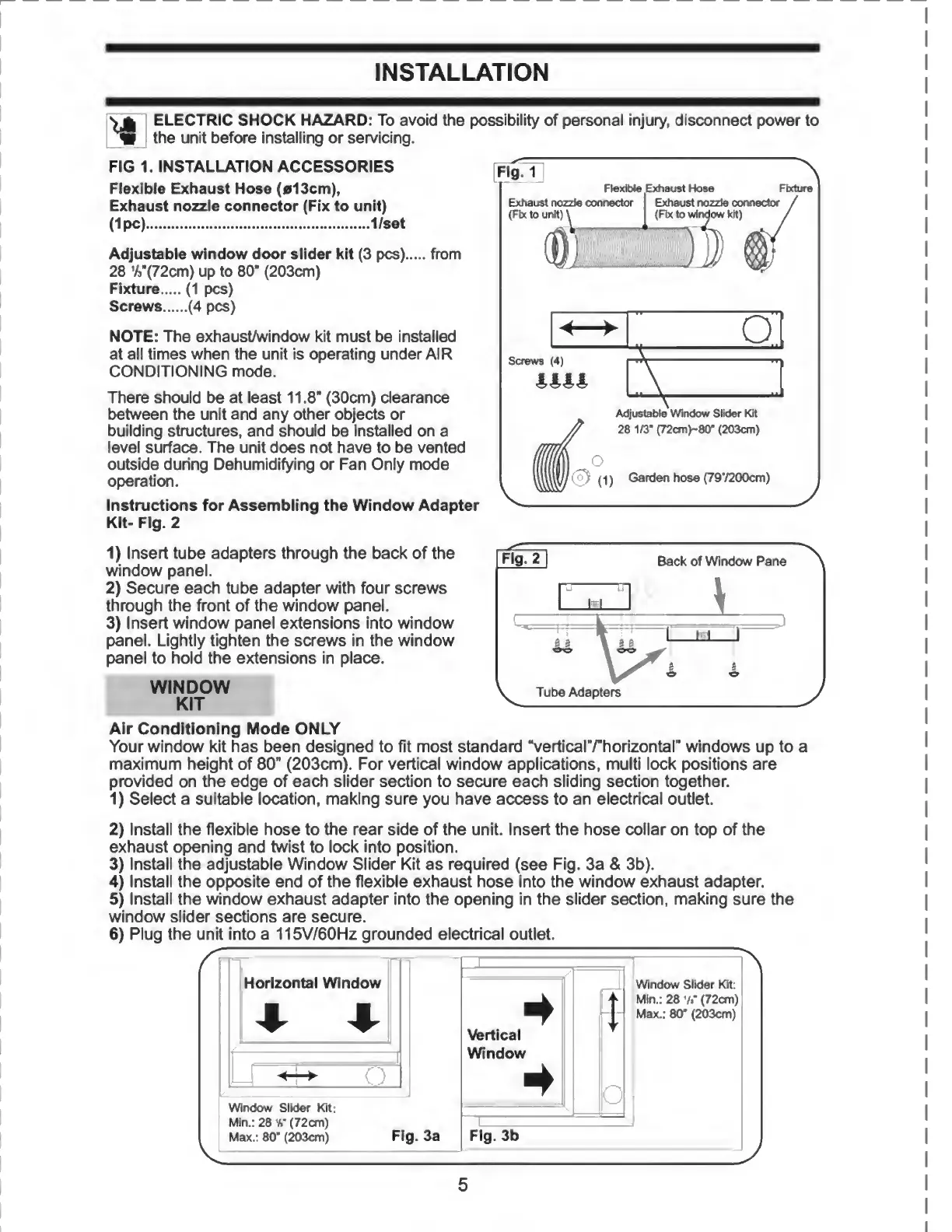

FIG 1. INSTALLATION ACCESSORIES
Flexible Exhaust Hose (0l3cm),
Exhaust nozzle connector (Fix to unit)
(Ipc).1/set
Adjustable window door slider kit (3 pcs).from
28 ’A’(72cm) up to 80" (203cm)
Fixture ( 1 pcs)
Screws .(4 pcs)
NOTE: The exhaust/window kit must be installed
at all times when the unit is operating under AIR
CONDITIONING mode.
There should be at least 11.8" (30cm) clearance
between the unit and any other objects or
building structures, and should be installed on a
level surface. The unit does not have to be vented
outside during Dehumidifying or Fan Only mode
operation.
Instructions for Assembling the Window Adapter
Kit- Fig. 2
1) Insert tube adapters through the back of the
window panel.
2) Secure each tube adapter with four screws
through the front of the window panel.
3) Insert window panel extensions into window
panel. Lightly tighten the screws in the window
panel to hold the extensions in place.
WINDOW
KIT
Air Conditioning Mode ONLY
Your window kit has been designed to fit most standard “verticalThorizontar windows up to a
maximum height of 80" (203cm). For vertical window applications, multi lock positions are
provided on the edge of each slider section to secure each sliding section together.
1) S elect a suitable location, making sure you have access to an electrical outlet.
2) Install the flexible hose to the rear side of the unit. Insert the hose collar on top of the
exhaust opening and twist to lock into position.
3) Install the adjustable Window Slider Kit as required (see Fig. 3a & 3b).
4) Install the opposite end of the flexible exhaust hose into the window exhaust adapter.
5) Install the window exhaust adapter into the opening in the slider section, making sure the
window slider sections are secure.
6) Plug the unit into a 115V/60Hz grounded electrical outlet.
Horizontal Window
.
Window Slider Kit:
Min.: 28 V (72cm)
Max.: 80' (203cm)
Fig. 3a Fig. 3b
Window Slider Kit:
Min.: 28 7.* (72cm)
Max.: 80* (203cm)
