d&b audiotechnik Q Series - The Q1 rigging system

10 d&b Q-Series

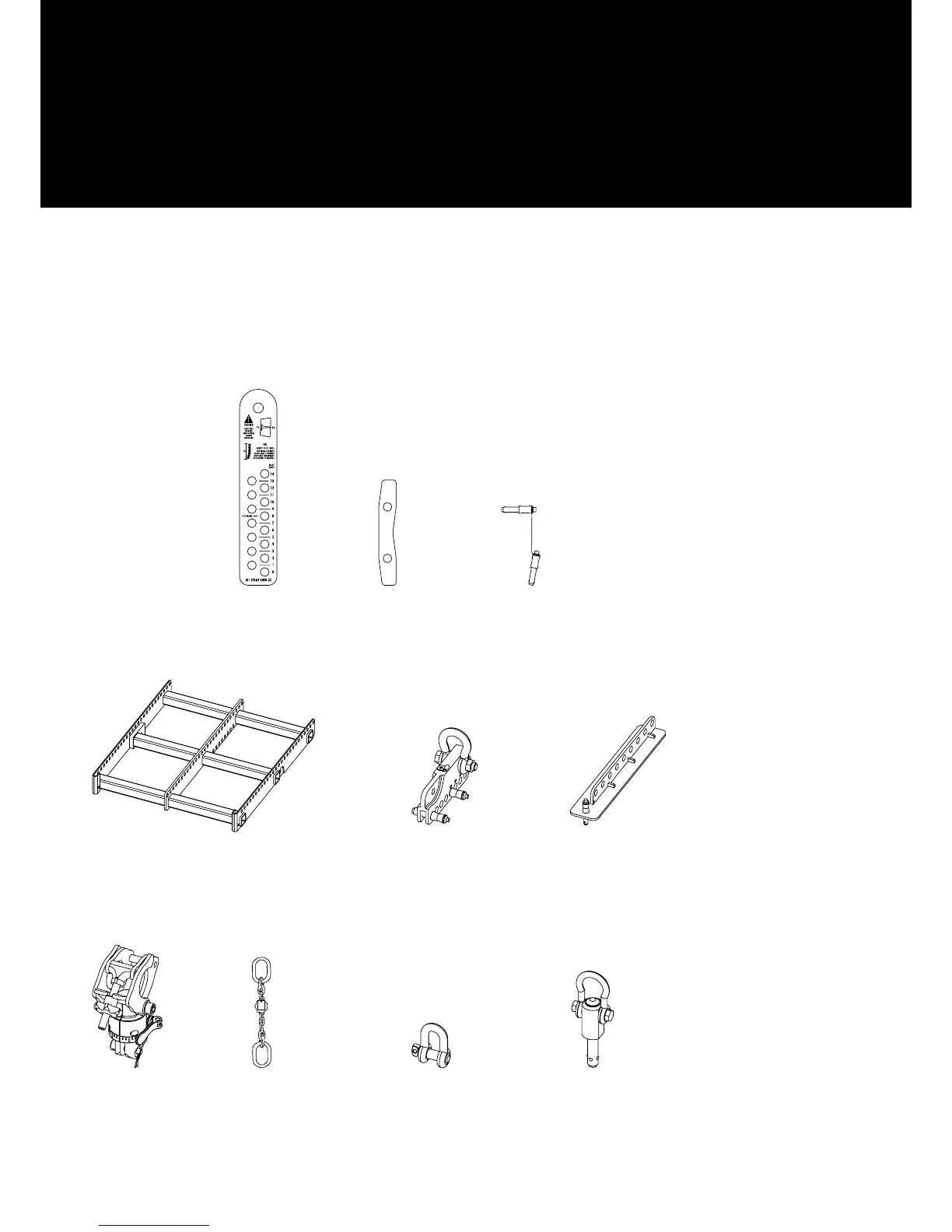

The Q1 rigging system
Safety approval
d&b loudspeakers and accessories are designed for set up and
use within situations requiring compliance with the provisions and
directives of BGV C1 Rule for the Prevention of Accidents.
Z5156
Q Flying adapter
For three Q1 loudspeakers
maximum
Z5048
Flying pin 10 mm
Z5151
Q Splay link
Z5154 Q Rigging set:
Z5160
Q Load adapter
WLL: 480 kg/1058 lb
or twenty Q1 loudspeakers;
aiming of a column by 1/1,
1/2 or 1/4 detents
Z5152
Q Front link
Z5155
Q Hoist connector chain
WLL: 480 kg/1058 lb
or twenty Q1 loudspeakers
E6507
1t Shackle
Z5153
Locking pins 8 mm
Z5159
Q Flying frame
WLL: 480 kg/1058 lb
or twenty Q1 loudspeakers
Z5147
Rota clamp
WLL: 500 kg/1100 lb;
for a tube diameter up to
51 mm/2”
