d&b audiotechnik Q Series User Manual

12 d&b Q-Series

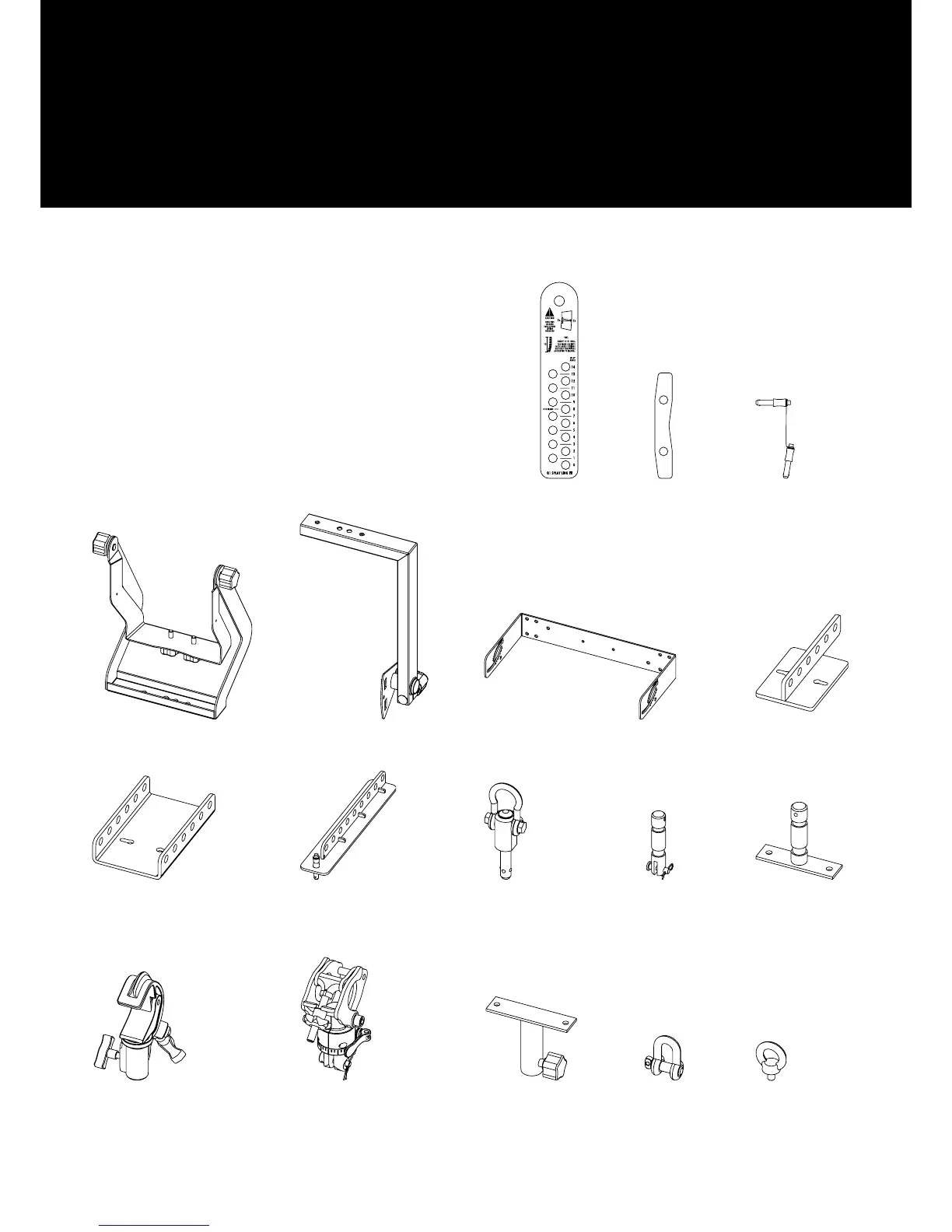

The Q7/Q10 mounting accessories
Safety approval
d&b loudspeakers and accessories are designed for set up and
use within situations requiring compliance with the provisions and
directives of BGV C1 Rule for the Prevention of Accidents.
Z5156
Q Flying adapter
For three Q7 loudspeakers
maximum
Z5048
Flying pin 10 mm
Z5150
Q Swivel bracket
Z5020
Flying adapter 02
Z5161
Q Flying bracket
Z5025
Flying adapter 03
Z5012
Pipe clamp for TV spigot
WLL: 100 kg/220 lb;
for a tube diameter up to
70 mm/2.75”
Z5015
TV spigot 02
Z5147
Rota clamp
WLL: 500 kg/1100 lb;
for a tube diameter up to
51 mm/2”
Q9032
Safety eyebolt M10
E6507
1t Shackle
Z5010
TV spigot with
fixing plate
Z5024
Loudspeaker
stand adapter
Z5175
Qi Horizontal bracket
Z5151
Q Splay link
Z5154 Q Rigging set: Z5152
Q Front link
Z5153
Locking pins 8 mm
