d&b Q-Series 11
The Q1 rigging examples
With a 15° vertical HF dispersion per cabinet, the Q1 can be
used to construct vertical columns that produce a curved coherent
wave front. The mechanical and acoustical design of the cabinet
enables vertical splay angles to be set between 0° and 14°. Q1
cabinets can therefore be used in vertical configurations starting
from two cabinets with a 15° to 30° dispersion, up to twenty
cabinets with a fully user and venue defined vertical profile.
For further information please refer to the TI 385 d&b Line array
design and Q-Series Rigging manual, which are available for
download at www.dbaudio.com.

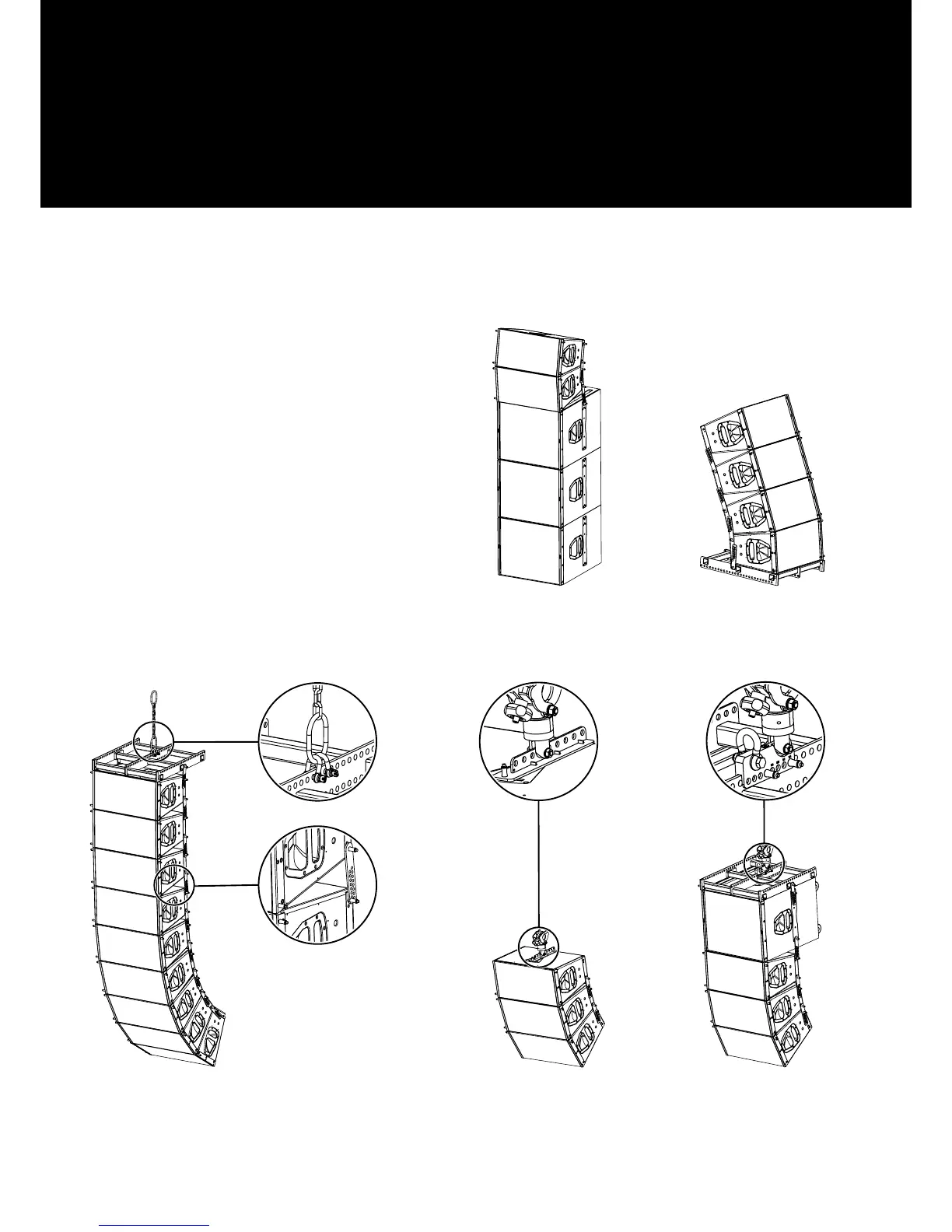

Q1 array with
Z5156 Q Flying adapter
Z5154 Q Rigging set
Z5147 Rota clamp
Q1 line array with
Z5159 Q Flying frame
Z5154 Q Rigging set
Z5155 Q Hoist connector chain
E6507 1t Shackles
Q1/Q-SUB array with
Z5159 Q Flying frame
Z5154 Q Rigging set
Z5147 Rota clamp
Z5160 Q Load adapter
Q1/Q-SUB ground stack with
Z5154 Q Rigging set
Q1 ground stack with
Z5159 Q Flying frame
Z5154 Q Rigging set
