Application Guide Heating Control Danfoss Ally™

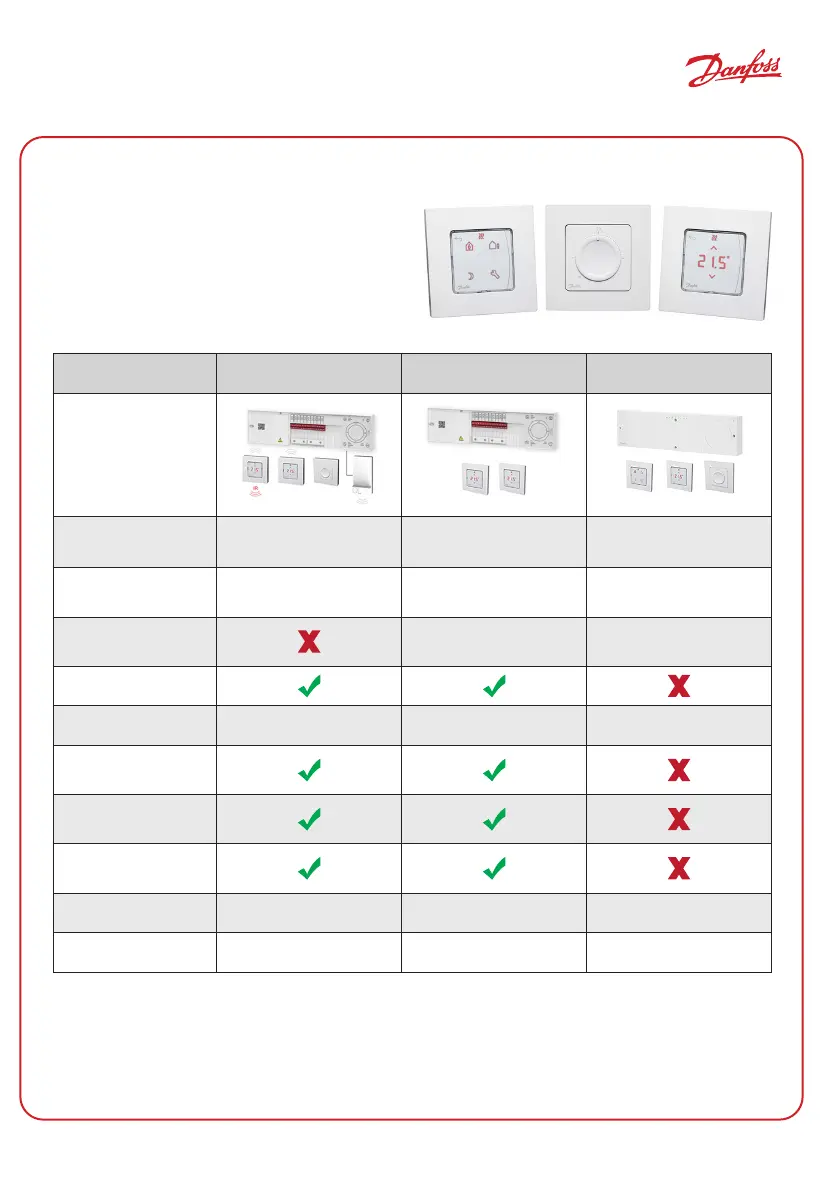

3.5 Danfoss Icon™/Icon 2™ – room thermostats for floor heating
Danfoss Icon™ comes in 3 modular concepts
to cover every application – Wireless, 24V and
230V
Wireless 24V 230V
Thermostat
models
Display + Display
infrared + Dial
Display
Programmable +
Display+ Dial
Thermostat
versions
On-wall On-wall + In-wall On-wall + In-wall
Exchangeable
frame
In-wall In-wall
Icon App
Cooling options Automatic + Manual Automatic + Manual Manual
Automatic
balancing
Supply temp.
control
Commissioning
test
Communication Wireless 2-way Star / daisy chain bus Wired 230V
Zones Up to 3x 15 = 45 Up to 3x 15 = 45 Up to 1x 8 = 8

Danfoss Ally Specifications

General

Accuracy	50 sec/month
Noise level	30 dB
Product color	White
Smart thermostat	Yes
Operating frequency	2400 MHz
Suitable for indoor use	-
Maximum water temperature	90 °C
Storage temperature (T-T)	-20 - 65 °C
Temperature control range	5 - 35 °C
Operating temperature (T-T)	0 - 40 °C
International Protection (IP) code	IP20
Package weight	250 g
Display type	LCD
Battery type	AA
Power consumption (typical)	1.2 W

Weight and Dimensions

Weight	198 g
Diameter	55 mm
