130BD573.10
1
2
5
6
7
10
11
15
17
3
4
8
9
13
14
16
18
12
1 Local control panel (LCP) 10 Line power bus bars to drive input
2 Active filter card (AFC) 11 Heatsink fans
3 Soft-charge resistors 12 Line power terminals (R/L1, S/L2, T/L3) from options cabinet
4 Metal oxide varistor (MOV) 13 RFI differential mode filter
5 AC capacitors discharge board 14 RFI common mode filter
6 LC inductor 15 Line power contactor
7 HI inductor 16 Power card
8 Mixing fan 17 Control card
9 IGBT fuses 18 LCP cradle

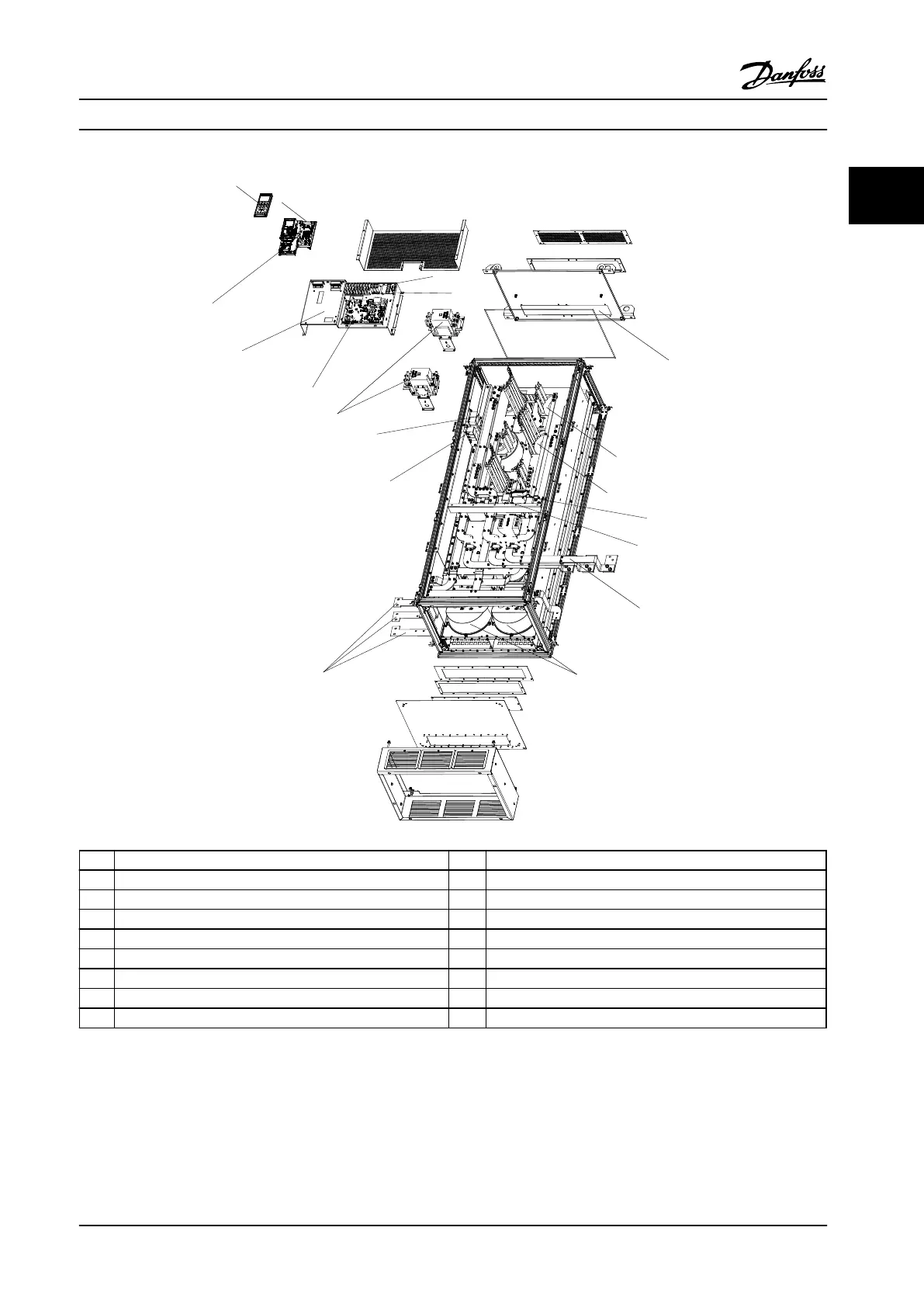

Figure 2.6 Frame Size F18 Filter Cabinet
Introduction
Instruction Manual
MG37A222 Danfoss A/S © Rev. 2014-02-07 All rights reserved. 11
