Danfoss DHP-L User Manual

Danfoss – 16 VUBMA102
2.9 Installation principle, DHP-L
The image shows the principles of a piping installation with all components.

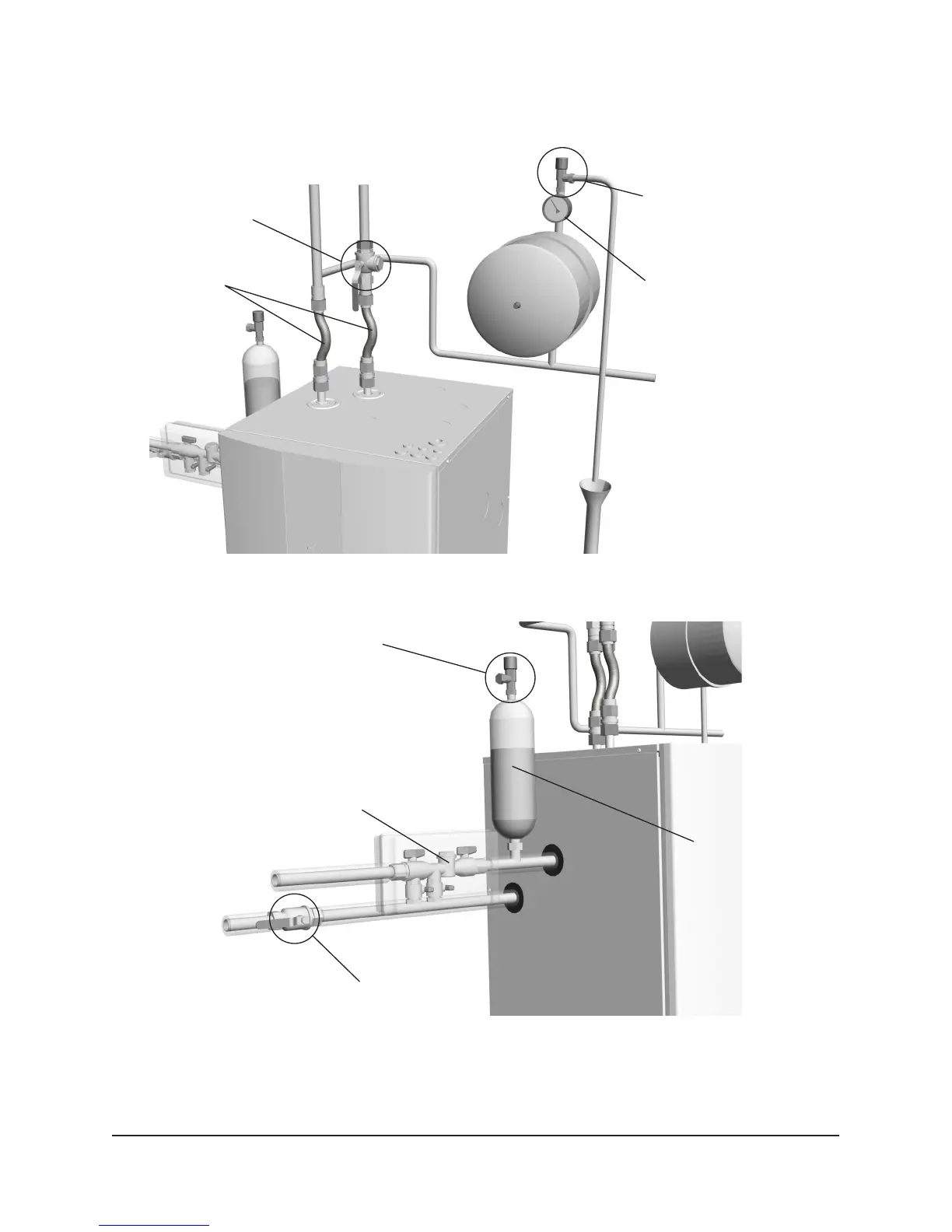

Figure 11: Principle solution for a piping installation.
Figure 12: Principle solution for a brine installation.
Supply pipe Return pipe
Connection to any
water heaters
Flexible hoses
Safety valve, 3 bar
Bleed and
expansion tank
Filling kit incl.
strainer
Shut-off valve
Strainer
Brine in
Brine out
Shut-off valve and
strainer
To
outlet
Expansion
tank
Pressure gauge
Safety valve
