1.3.2. Unpacking
• Place the box in position, with the top clearly visible and according to the arrow marking
on the packaging.
• Cut the seal, and open the box.
• Take out the lock clip, the bag with accessories and the Installation Guide lying on the
upper section of the foam packaging material.
• Remove the upper part of the foam packaging material.

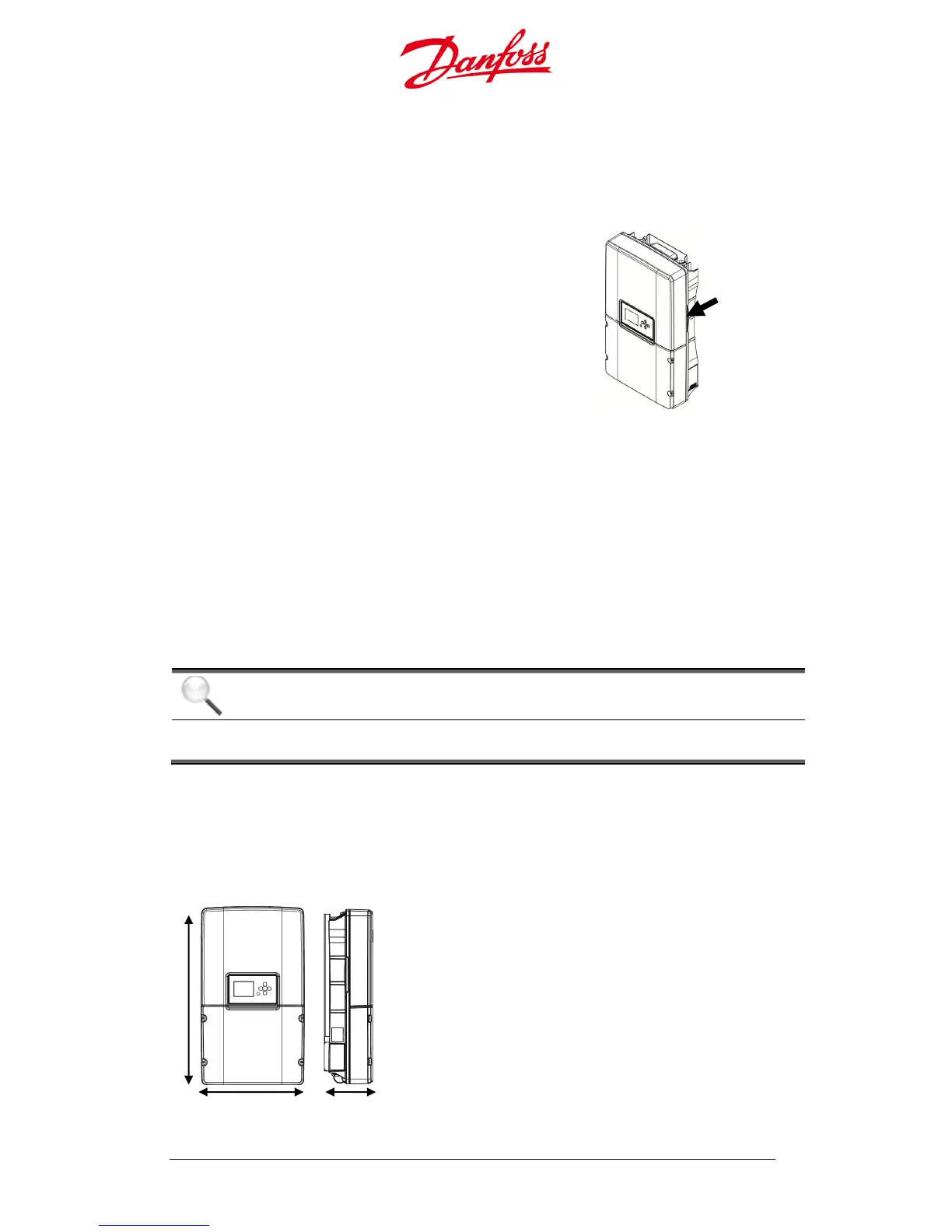

• Both sides of the inverter case are narrowed in order to get a
better grip on the device. Lift up the inverter carefully out of
the box using the “handles” illustrated in Figure 1.3.2.
• Remove the lower section of the foam packaging and take
out the inverter mounting bracket.
• Store all the original packaging for possible later reuse.
Figure 1.3.2: “Handles”
After unpacking the inverter safely, check that all components are present and in an
undamaged condition.
1.3.3. Scope of Delivery
• DLX single phase inverter
• Mounting bracket
• Installation Guide
• Accessories: grounding strap, bracket screws, lock clip, extra type label
NOTICE
The mating parts of the connectors are not part of the standard scope of supply,
and must be provided by the system installer.
1.3.4. Inverter Structure
The housing of the DLX series inverter is designed for indoor and outdoor use (IP65), and
provides a degree of protection from dirt, rain, sleet, snow, dust, water, and corrosion.
Figure 1.3.3: Mechanical dimensions
H: 610 mm
W: 353 mm
D: 158 mm
