Danfoss ECL Comfort 110 - Introduction; How to use this guide; Basic principles of application 130 for ECL Comfort 110

Data sheet
DH-SMT/DK
VD.KT.C3.02 © Danfoss 09/2008
5
ECL Comfort 110
General data
Ambient temperature 0 - 55 °C
Storage temperature -40 - + 70 °C
Enclosure DIN rail, wall or panel
Sensor type Pt 1000 (1000 Ω  0 °C)
Grade of enclosure IP 41 DIN 40050
- marking
in accordance with the standards
EMC-Directive: 2004/108/EC
Immunity: 61000-6-1
Emission: 61000-6-3
LVD-Directive: 2006/95/EC

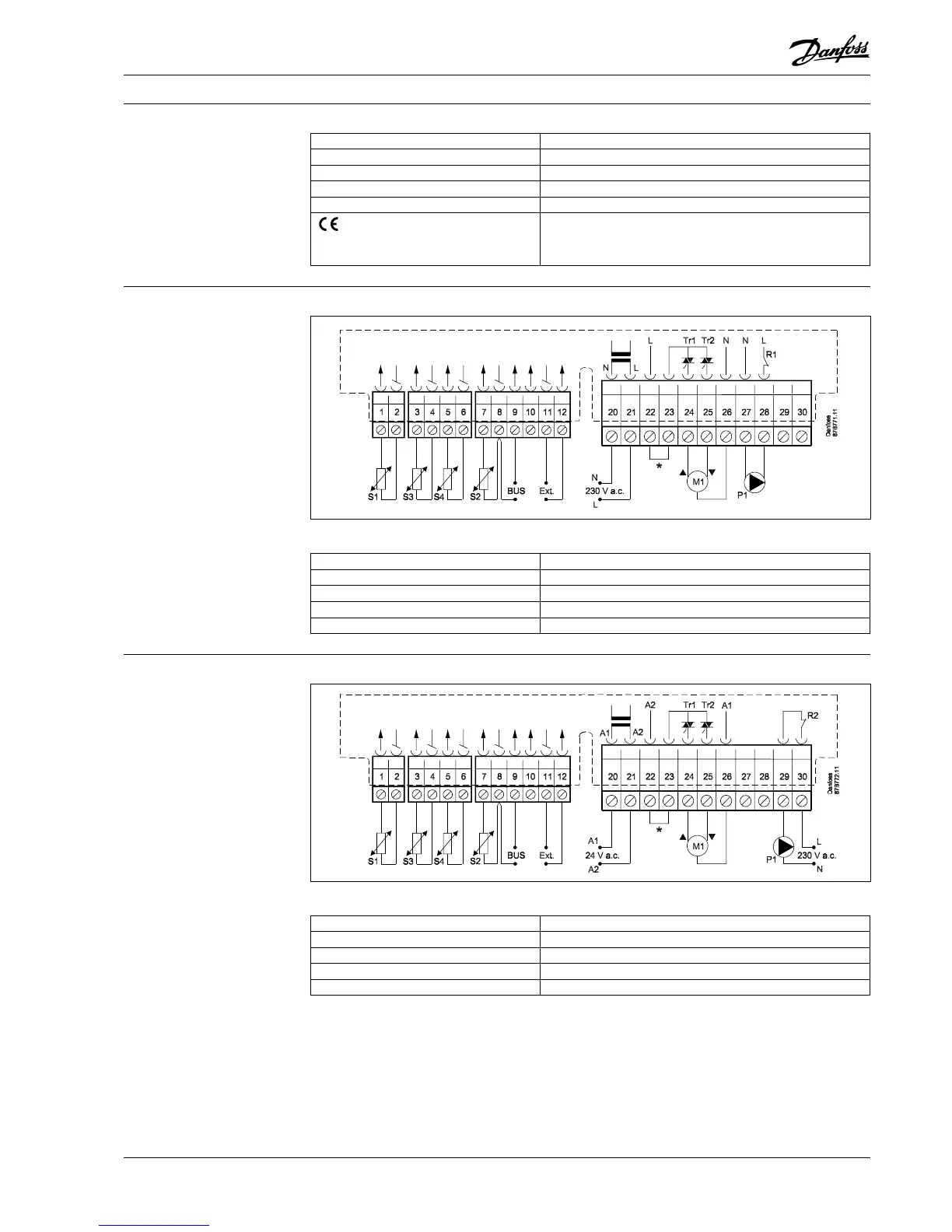

Wiring - 230 V a.c.
* Connections for safety thermostat
Supply voltage 230 V a.c. - 50 Hz
Voltage range 207 to 244 V a.c. (IEC 60038)
Power consumption 3 VA
Load on relay 1 outputs 4 (2) A - 230 V a.c.
Load on triac outputs 15 VA @ 230 V a.c.
Wiring - 24 V a.c.
* Connections for safety thermostat
Supply voltage 24 V a.c. - 50 Hz
Voltage range 21.6 to 26.4 V a.c. (IEC 60038)
Power consumption 3 VA
Load on relay 2 outputs 4 (2) A - 230 V a.c.
Load on triac outputs 15 VA @ 24 V a.c.
