InstallationGuideECLComfort210/310,applicationA214/A314
A214.6
Heatingwithroomtemperaturecontrol:

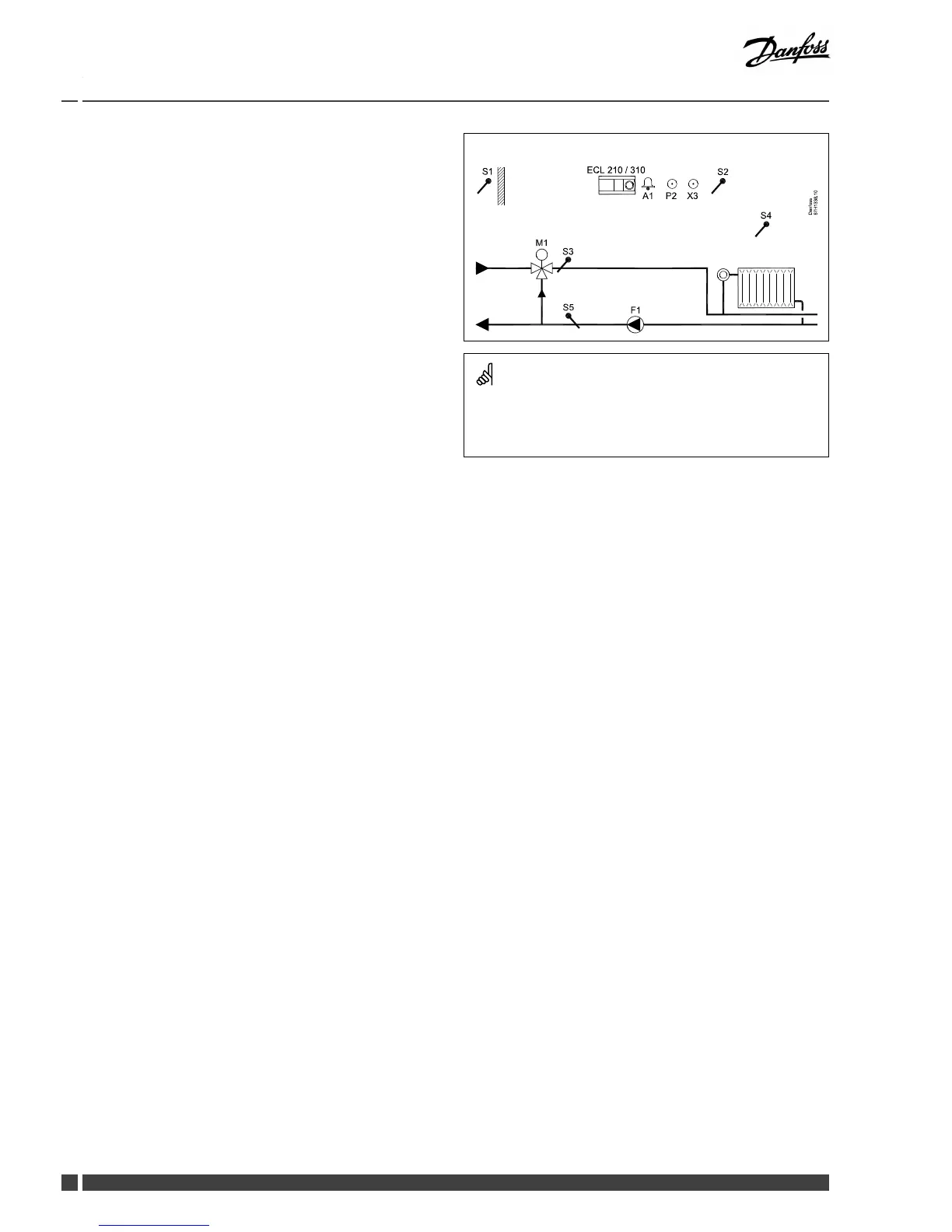

TypicalA214.6application:
Listofcomponents:
ECL210/310
ElectroniccontrollerECLComfort210or310
S1
Outdoortemperaturesensor
S2
(Optional)Compensationtemperaturesensor
S3
Flowtemperaturesensor
S4
Roomtemperaturesensor*
S5
(Optional)Returntemperaturesensor
S6
(Optional)Frosttemperaturesensor(notillustrated)
S7
(Optional)Frostthermostat(notillustrated)
S8
(Optional)Firethermostat(notillustrated)
F1
Circulationpump(ON/OFF)
P2
Accessoryoutput(ON/OFF)
X3
Optionaloutput(ON/OFF)
M1
Motorizedcontrolvalve,heating(3-pointcontrolled)
A1
Alarm
*Alternative:ECA30
