DKRCI.PD.RP0.A4.02 | 4

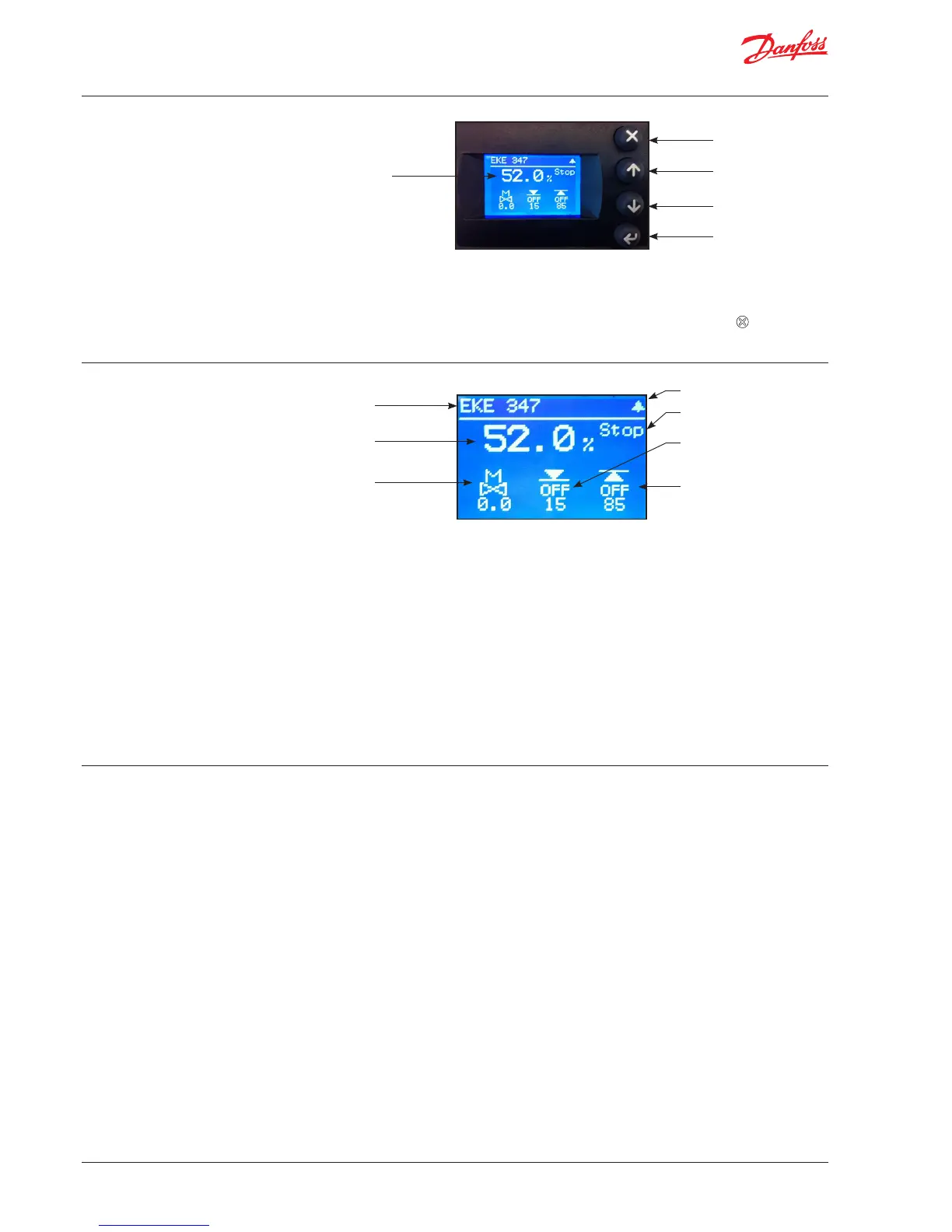

The user interface of the control panel consists
of a multiline display and 4 individual push
buttons: Enter button, Scroll up
button, Scroll down button and Back
button.
The gure shows the Home display image, which
give the actual overview. This is the starting
point for entering into menus, and you will
revert to this image by pushing 1 – 3 times
(depending on actual position).
Control Panel
The display itself show the state of Liquid level,
Controller Mode (controller On/O), Valve
opening degree, Lower level alarm (o = no
alarm present) and Upper level alarm (o = no
alarm present).
Additional to the external connected alarm
audio/video sources, a Bell symbol will ash in
the upper right corner in case of an alarm.
To see more details on system performance and
setting of parameters, 2 dierent main menu
levels can be reached by operation of the push
buttons.
From Home image the Status menu can be
reached by 1 push on Enter.
From Home image the Setup & service menu
can be reached by 1 push and hold on Enter.
For entrance a Log In is required by the pass-
word given during Commisioning.
Display
Back
Press and hold = Log Out
Scroll up
Scroll down
Enter
Press and hold = Log In
Home Image
Controller name
Actual liquid level
Valve opening degree
Flashing bell = Active alarm
Controller mode
Lower level alarm o (pump on)
Upper level alarm o
