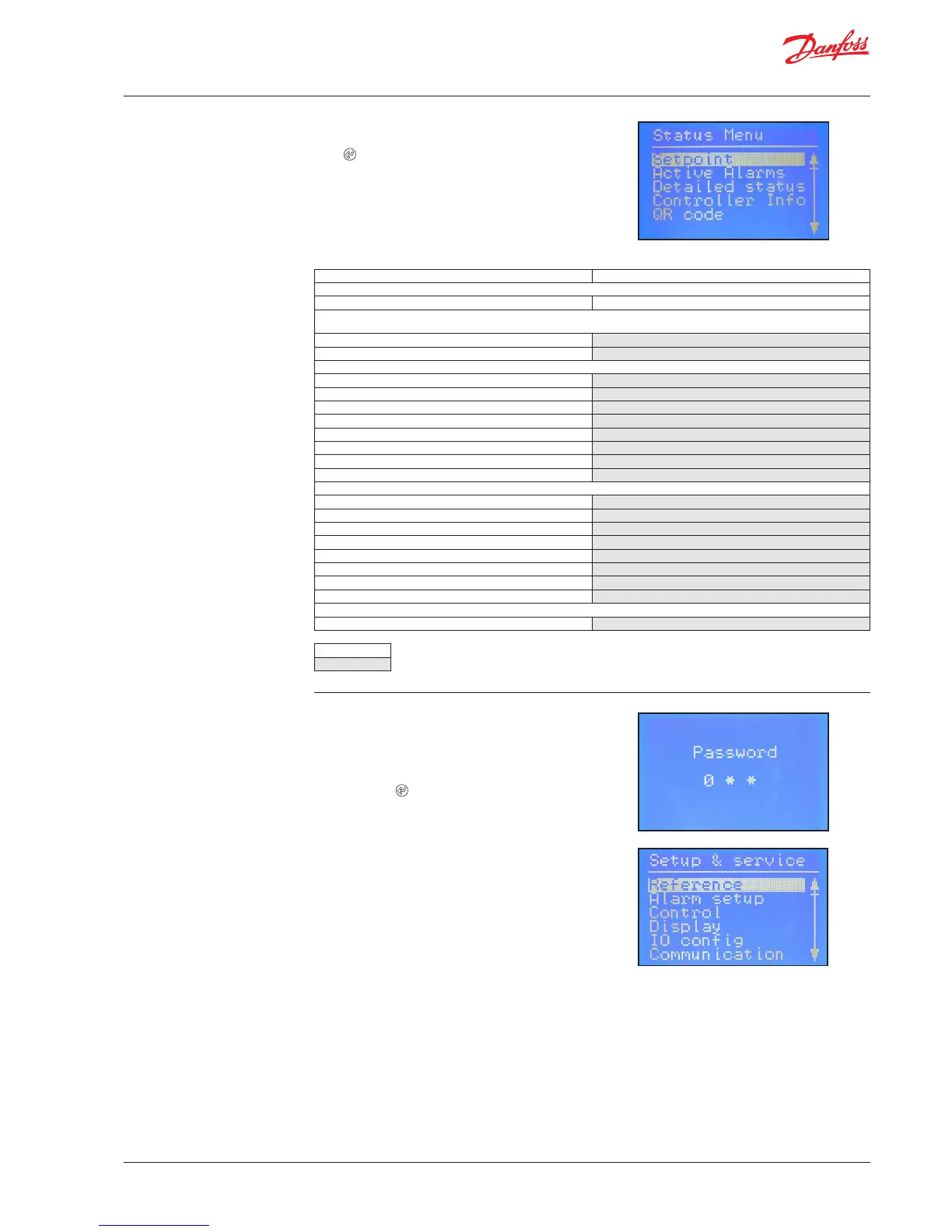

Status menu
To enter Status menu from Home image:
Push once.
The Status menu is an open menu accessible for
all. Therefore only 1 parameter can be changed
from here. A selection of other parameters can
be seen from the status menu.
Menus
Setup & service menu
(Requires log-in password assigned in
Commisioning menu)
To enter Setup and service menu from Home
image:
Push and hold .
Maneuvering in the Status menu and the Setup
and service menu’s are done by use of the 4
push buttons shown on page 4.
The Setup & service menu is divided into 3
access levels, where personnel have individual
authority.
Most advanced level is Commissioning, where
you have access to change all
allowable parameters, including password
issuing and re-run of Setup wizard.
Service level is for service personnel and has
fewer rights than commissioning.
The lowest level is for Daily use, and allows only
a few changes.
The table on the next page shows authority
given to the Commisioning level.
Status menu ( Open menu )
Options
Setpoint
Liquid level setpoint 0 - 100%
Active alarms
Example of alarm content. The list will be empty in normal operation as no alarm is active.
Level signal out of range hours minutes
Standby mode hours minutes
Detailed status
Controller state Stop, Manual, Auto, Slave, IO
Actual level 0.0 - 100%
Actual reference 0.0 - 100%
Actual OD 0.0 - 100%
Digital input status On / O
Actual level signal current mA
Oscillation amplitude 0.0 - 100%
Oscillation period sec
Controller Info
Type
Name (Controller name)
SW (Software version)
Bios (Bios version)
Adr (Controller address)
SN (Serial Number)
PV (Product version)
Site (Production site)
QR code
Code
Read & Write
Read only
To Next Page
