Mounting/Demounting

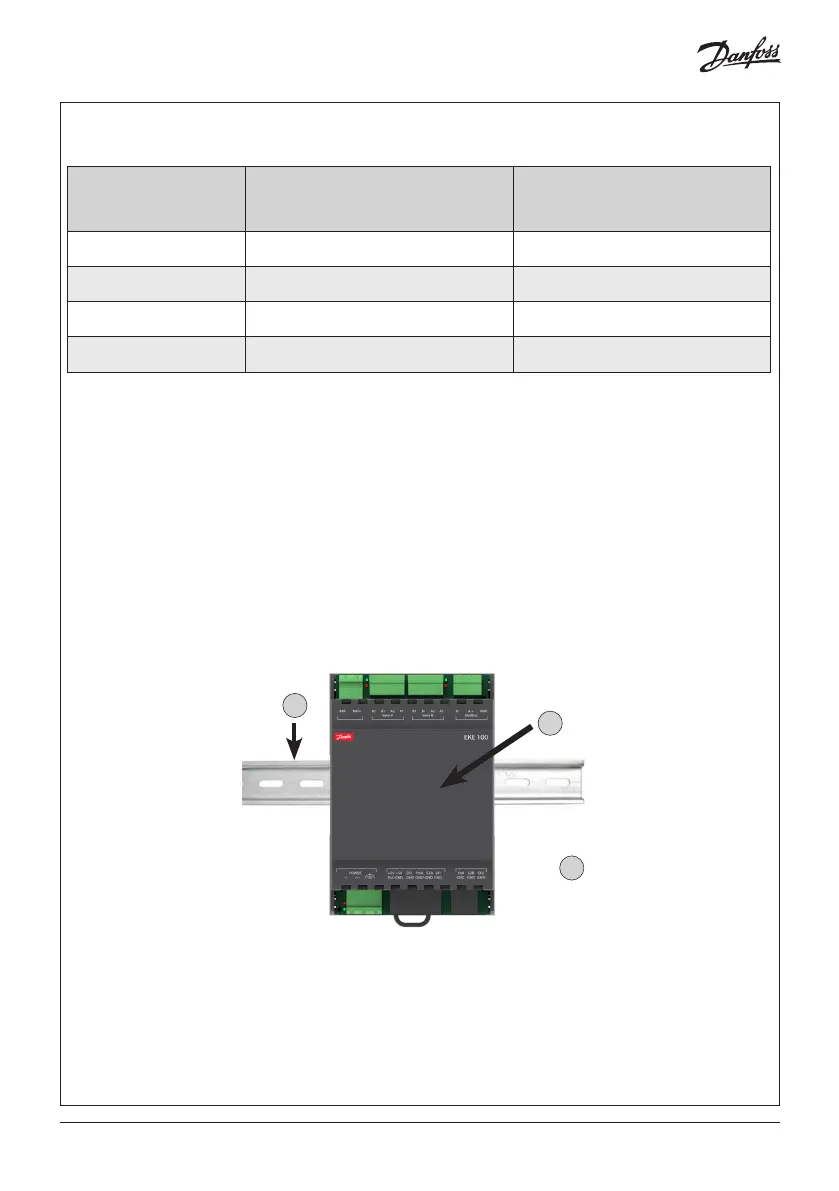

Mounting :
The unit can be mounted onto a 35 mm DIN rail simply by snapping it into place and securing it with
a stopper to prevent sliding. It is demounted by gently pulling the stirrup located in the base of the
housing.
1
2
3
“Click”
Driver input Terminal to use - signal Input A Terminal to use - signal Input B
Voltage A / Voltage B Ext. GND + PeA Ext. GND + PeB
Current A / Current B GND + PeA GND + PeB
Voltage A / Current B GND + PeA GND + PeB
Current A / Volatge B GND + PeA GND + PeB
See below table with recommended connection terminals for driver function
AN433741508202en-000203 | 5

Danfoss EKE Specifications

General

Category	Industrial Equipment
Supply voltage	24 V AC/DC
Enclosure rating	IP20
Mounting	DIN rail
Type	Electronic Controller
Communication	Yes
Input	Temperature Sensor
