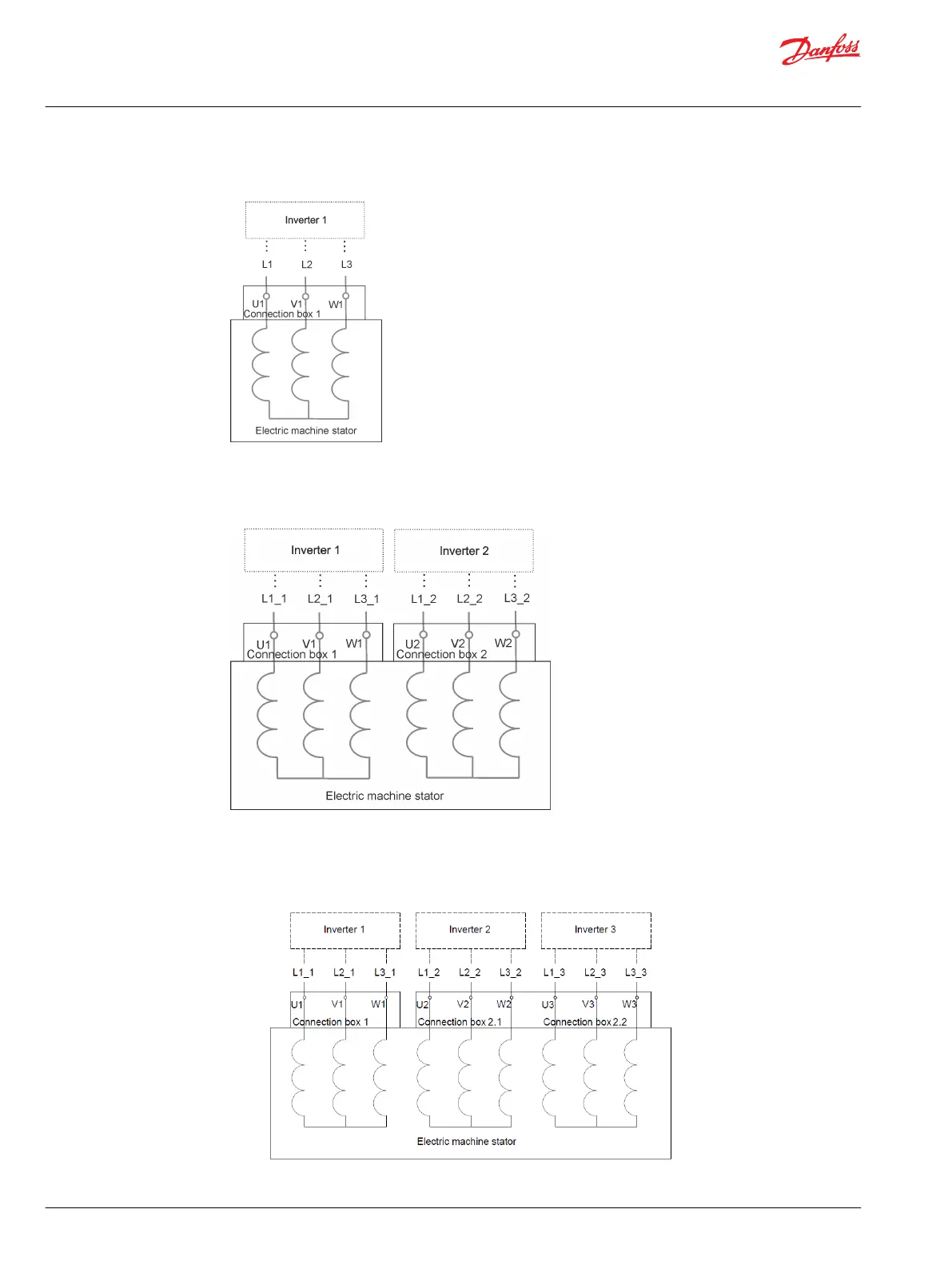

Connection diagram for SINGLE option
For an electric machine with option DUAL (two connection boxes each containing one three-phase
system), the electrical connection principles from the inverters are shown in the Figure below.
Connection diagram for DUAL option
For an electric machine with option TRI (three galvanically isolated three-phase systems), the electrical
connection principles from the inverters are shown in the Figure below.
Connection diagram for TRI option
User Guide
EM-PMI375
Installation
44 |
©
Danfoss | November 2021 BC265856307805en-000202
