Part Number Qty Description Type
27 3 Spring, Disc- D8, DIN 2093, 8,2 x 16 x 0,9
28 3 Washer D8, DIN 125
29 3 Cable glands M25 x 1,5 BG225MSTRI Pflitsch

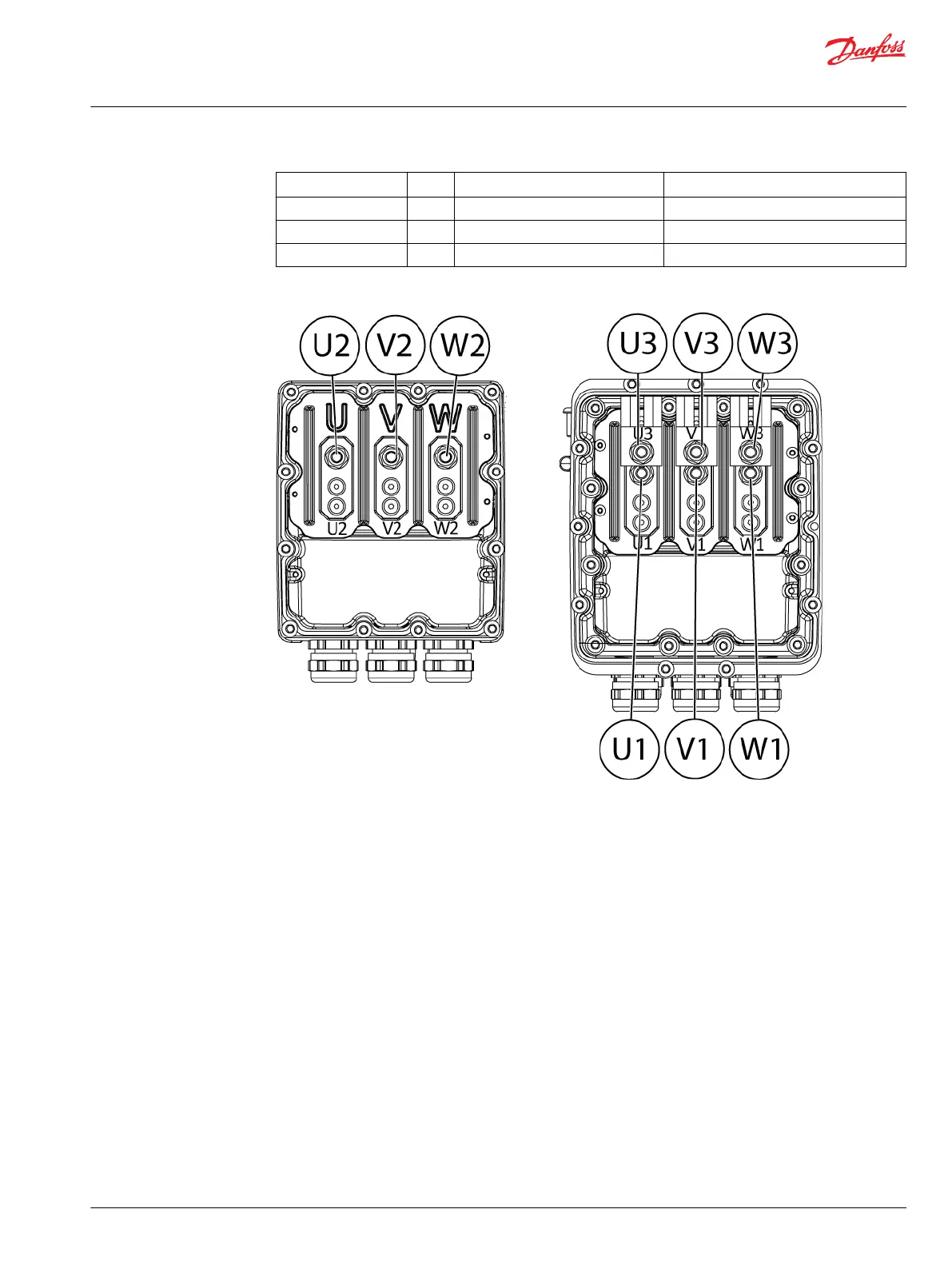

TRI option connection points
Connection diagram
The electric machines are intended to be powered and controlled by three-phase alternating current,
supplied by an inverter or inverters. The electric machine is not suitable for direct online use.
The amount of inverters depends on the electric machine and converter current ratings. See also the
relevant wiring diagrams.
For an electric machine with option SINGLE (one connection box containing one three-phase system), the
electrical connection principle from the inverter is shown in the Figure below.
User Guide
EM-PMI375
Installation
©
Danfoss | November 2021 BC265856307805en-000202 | 43
