Danfoss FT1330 Crimp Machine Operator’s Manual
48 | © Danfoss FT1330 Crimp Machine Operator’s Manual | 2023.02.
AQ439269212774en-000101

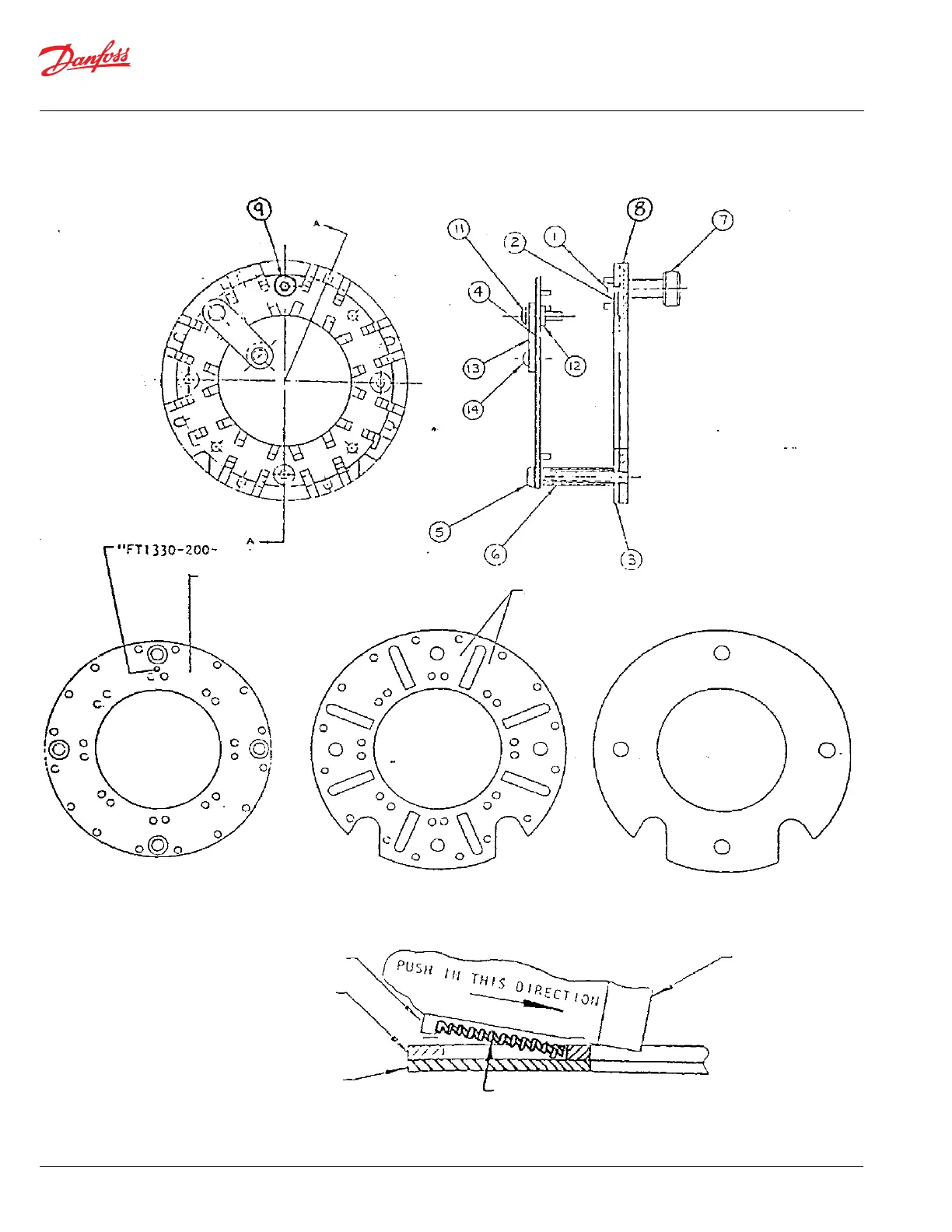

Assembly Instructions for Flat Field Crimp Die Cage
FRONT PLATE SPRING PLATE BACK PLATE
INSTALLING THE CRIMP DIE
LUBRICATE AREAS WHERE
CRIMP DIES CONTACT WITH
HIGH EFFICIENCY PTFE GREASE
T400G OPPOSITE SIDE
LUBRICATE WITH HIGH EFFICIENCY
PTFE GREASE T400G
ROLL PIN
SPRING PLATE
BACK PLATE
SPRING
CRIMP DIE
