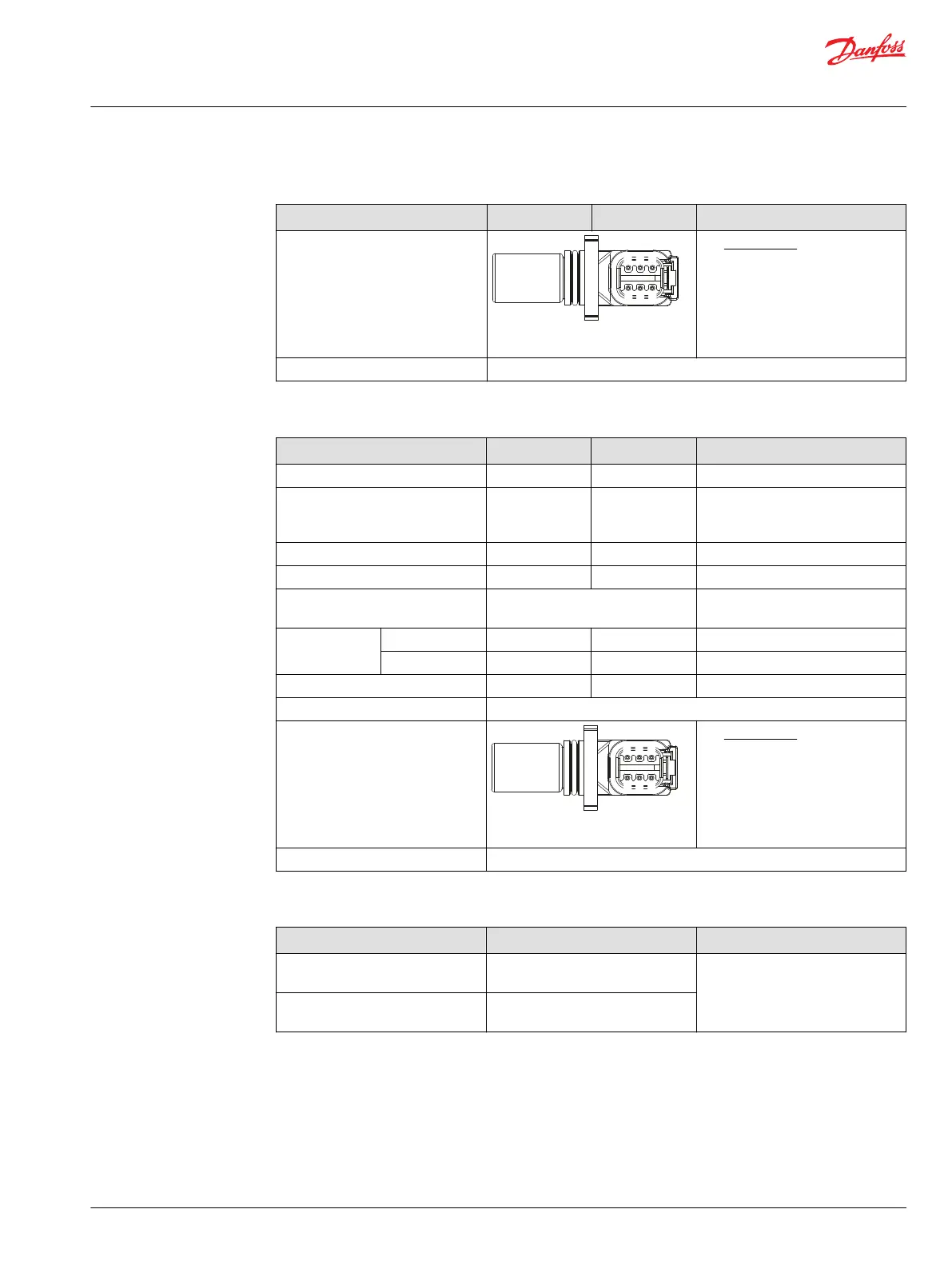

Technical data (continued)
Min. Max. Note
Connector terminals
4
3
2
1
5
6
P006035
Sensor pinout:
1 Speed signal 2
2 Direction signal
3 Speed signal 1
4 Supply
5 Ground
6 Temperature
Color of connector Black
Technical data
Min. Max. Note
Supply voltage range 7 V
DC
32 V
DC
Supply protection - 36 V
DC
36 V over voltage protection and -36
V permanent reverse polarity
protection
Max. required supply current - 30 mA
Max. output current - 50 mA
Operation mode NPN open collector With internal 2k7 pull-up resistor to
supply
Output signal
range
Low 2% 10%
High 55% 85% Max. output voltage 24V
Detectable frequency range 1 Hz 10.000 Hz
Speed and temperature sensor Order number 11102032
Connector terminals
4
3
2
1
5
6
P006035
Sensor pinout:
1 NC
2 NC
3 Speed signal 1
4 Supply
5 Ground
6 NC
Color of connector White (natural plastic color)
Mating connectors
Material Number Name Note
11033865 Assembly Bag, DEUTSCH, DTM06 6-
SOCKET Black
(20-24 AWG) / 0.2 – 0.5 mm²
11033863 Assembly Bag, DEUTSCH, DTM06 6-
SOCKET Grey
For more information, see Speed and Temperature Sensor, Technical Information 11046759.
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Operation
©
Danfoss | December 2016 11037153 | BC00000043en-US1103 | 23
