Options TAD1, TAD2 – Pressure Compensator Over Ride and electric BPD
TA – Pressure Compensator Over Ride / Default (high pressure below PCOR pressure = min.
displacement
D1 – with PCOR / with electric 12 V BPD / de-energized BPD = PCOR active at port A
D2 – with PCOR / with electric 24 V BPD / de-energized BPD = PCOR active at port A

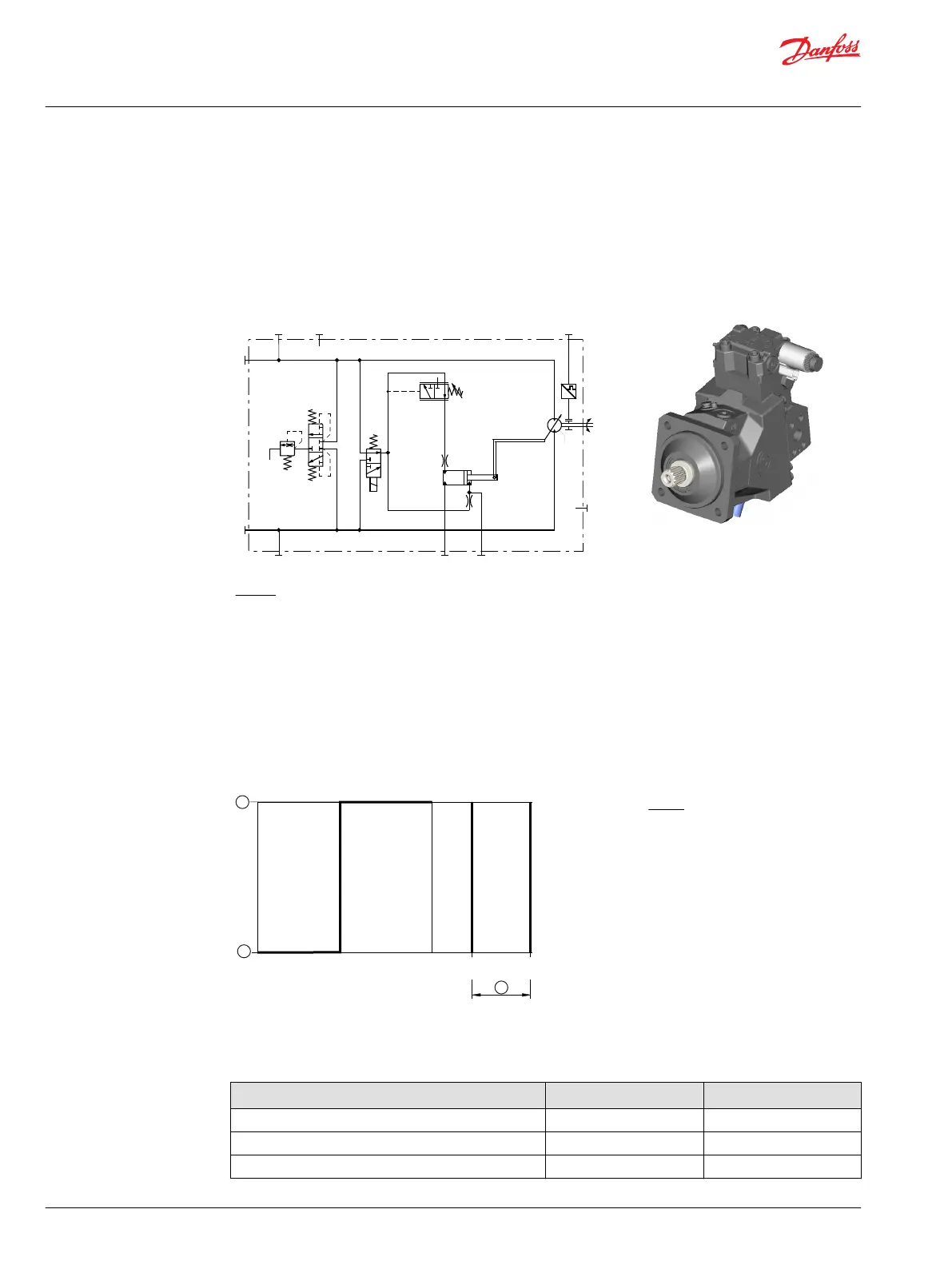

Hydraulic schematic
B
A
n
N
M4
M5
L2
L1
max min
C5
MA
MB
P301 325
Where:
A, B Main pressure lines
L1, L2 Drain lines
M4, M5 Gauge port servo pressure
MA, MB Gauge port system pressure
N Speed sensor (optional)
Option TAD1
Displacement versus PCOR pressure
P301 329
6°
32°
PCOR
160 bar
[2321 psi]
300 bar
[4351 psi]
1
2
3
Default: High pressure below PCOR pressure = min. displacement
Where:
1 Maximum displacement
2 Minimum displacement
3 Start setting range
Two-position solenoid data C5 (Brake pressure defeat)
Description 12 V 24 V
Min. supply voltage 9.5 V
DC
19.0 V
DC
Max. supply voltage (continuous) 14.6 V
DC
29.0 V
DC
Nominal coil resistance @ 20 °C [68 °F] 8.4 Ω 34.5 Ω
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Controls – nomenclature, description
86 |
©
Danfoss | December 2016 11037153 | BC00000043en-US1103
