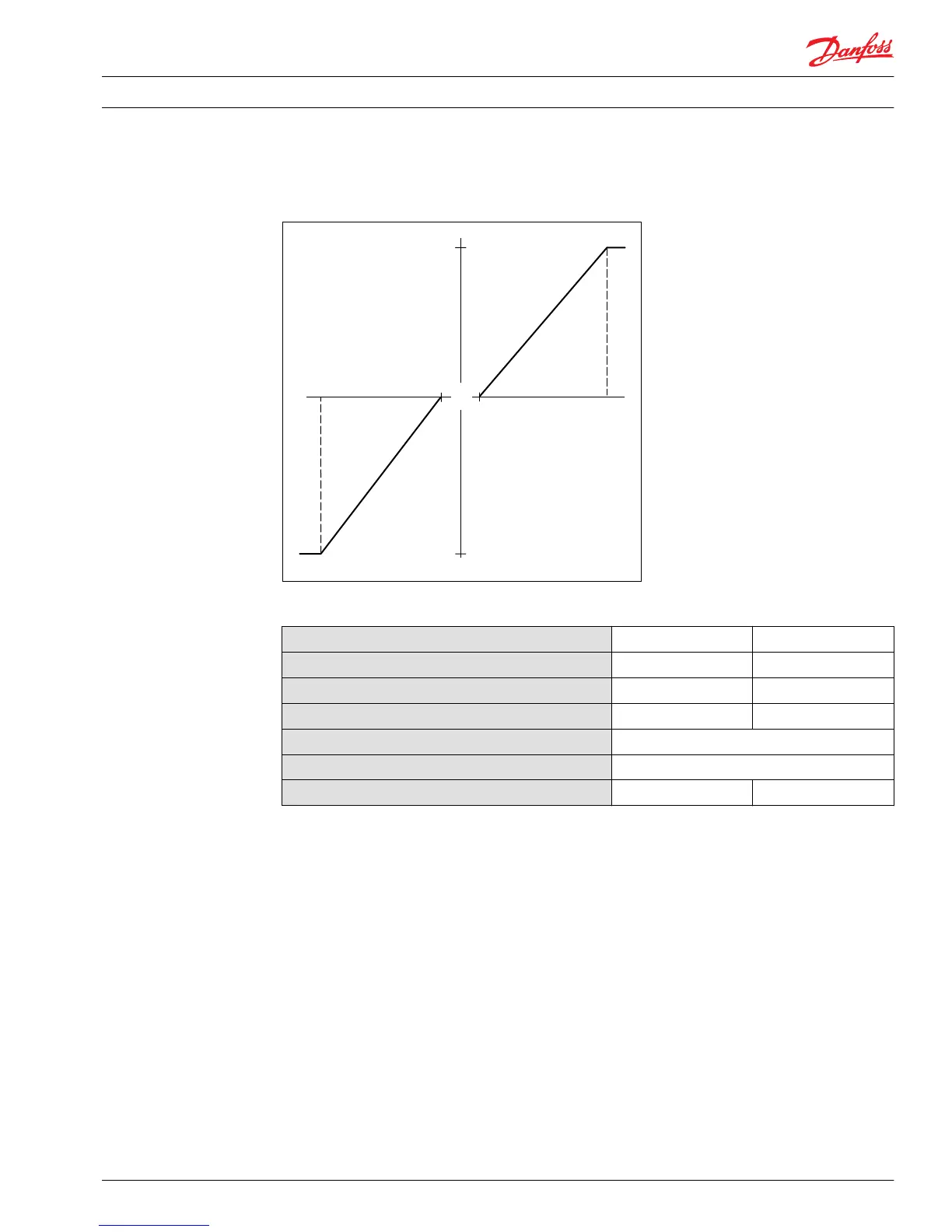

Electrical specifications
Pump displacement vs. control current
P003479E
"0"
-b -a
ba
100 %
100 %
Displacement
Current mA
Solenoid electrical specifications
Voltage
12V 24V
Maximum current
1800 mA 920 mA
Coil resistance @ 20 °C [70 °F]
3.66 Ω 14.20 Ω
Coil resistance @ 80 °C [176 °F]
4.52 Ω 17.52 Ω
PWM Range
70-200 Hz
PWM Frequency (preferred)
*
*
100 Hz
Inductance
33 mH 140 mH
*
PWM signal required for optimum control performance.
Electrical Installation M46 Pumps HC EDC
Product overview
L1427804 • Rev AB • September 2015 7
