MCD3000 Series
30 MG.15.B2.02 – VLT is a registered Danfoss trademark
Component Replacement Procedures

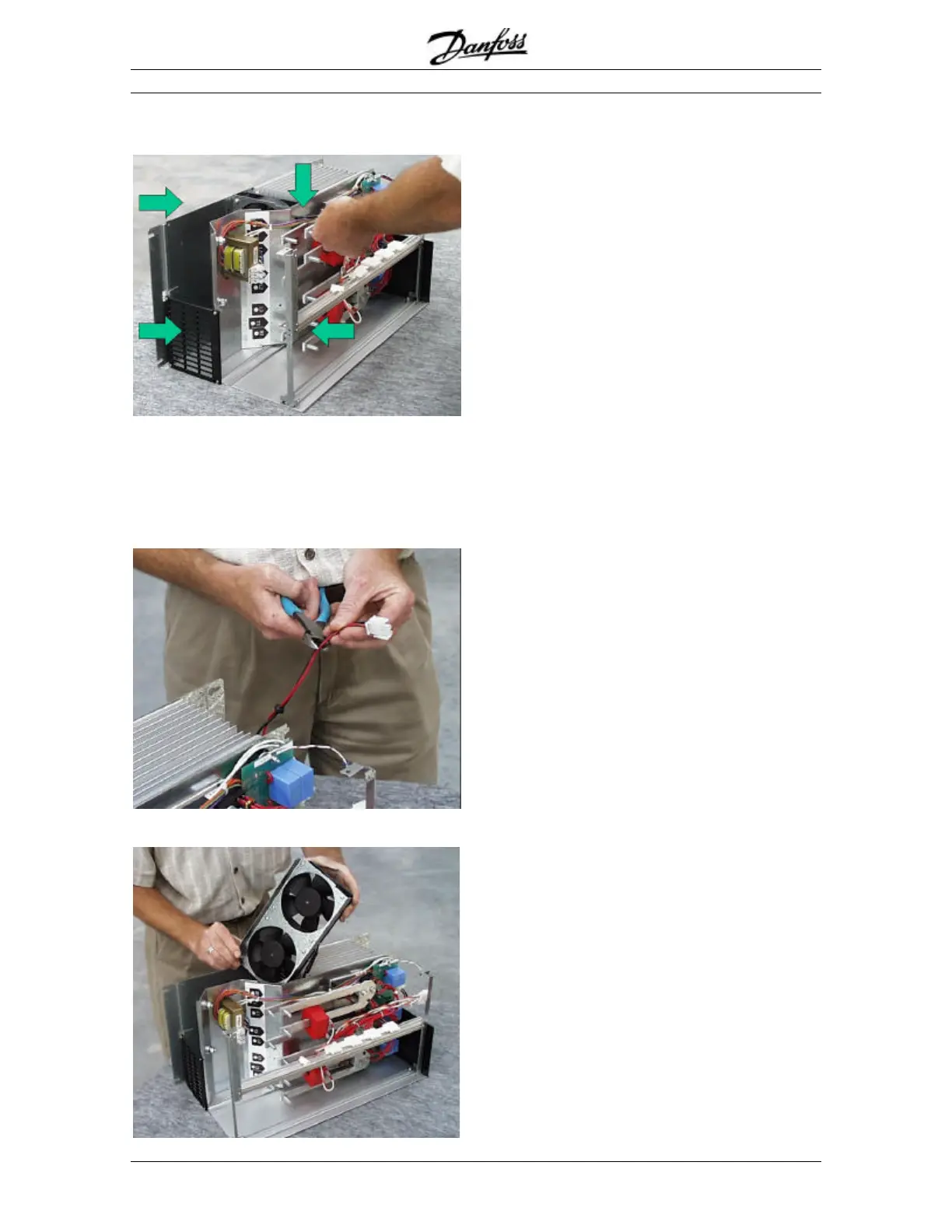

Step 8. Remove the screws (4) securing the fan
bracket.
Step 9. Cut the plug from the end of the fan wiring
loom, leaving at least 75mm wire between the cut and
the plug. Retain the plug, protective sleeve and
grommet so that these can be fitted to the new fan
wiring during re-assembly. Crimp terminals are
supplied with the new fan for this purpose.
Step 10. Remove the fan bracket from the starter.
Step 11. Replace the damaged fan, ensuring that the
protective sleeve is replaced over the fan wiring.
Step 12. Fit the fan bracket in reverse order.
