MCD3000 Series
MG.15.B2.02 – VLT is a registered Danfoss trademark 31

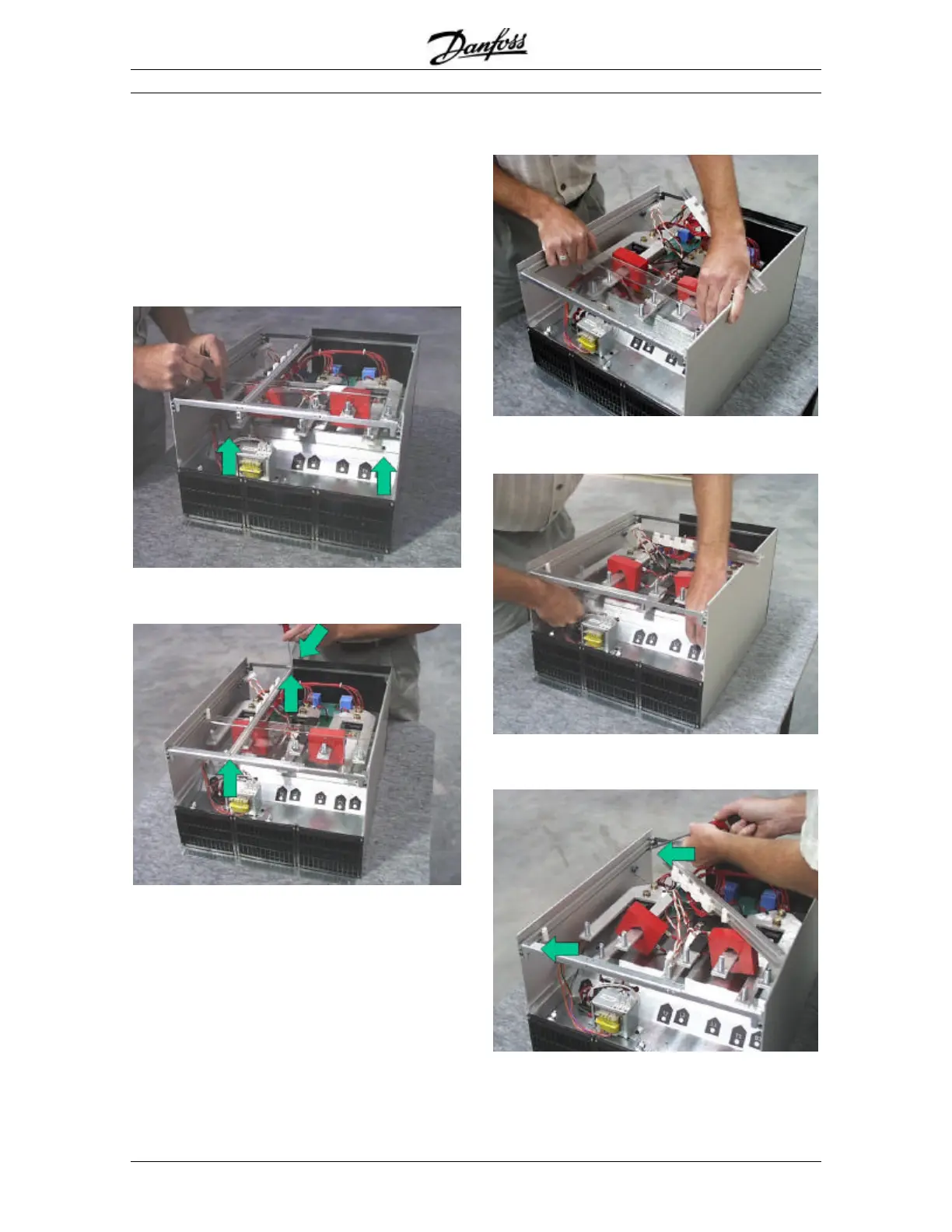

Component Replacement Procedures
Cooling Fans: MCD3132
Step 1. Disassemble the MCD3000 as described for
Identity Module replacement, Steps 1 to 3 (Page 18).
Step 2. Remove all remaining end caps & fan grills
from the left side of the MCD3000.
Step 3. Undo the screws (2) securing the bus bar
support bracket.
Step 4. Undo the screws securing the vertical support
rail and slide the rail out of the way.
Step 5. Unclip the CTs and slide off the bus bar
support bracket.
Step 6. Remove the insulation barrier located under
the bus bar support bracket.
Step 7. Undo the screws (2) securing the left side
panel to the top and bottom cross supports.
To Next Page
