Component Replacement Procedures

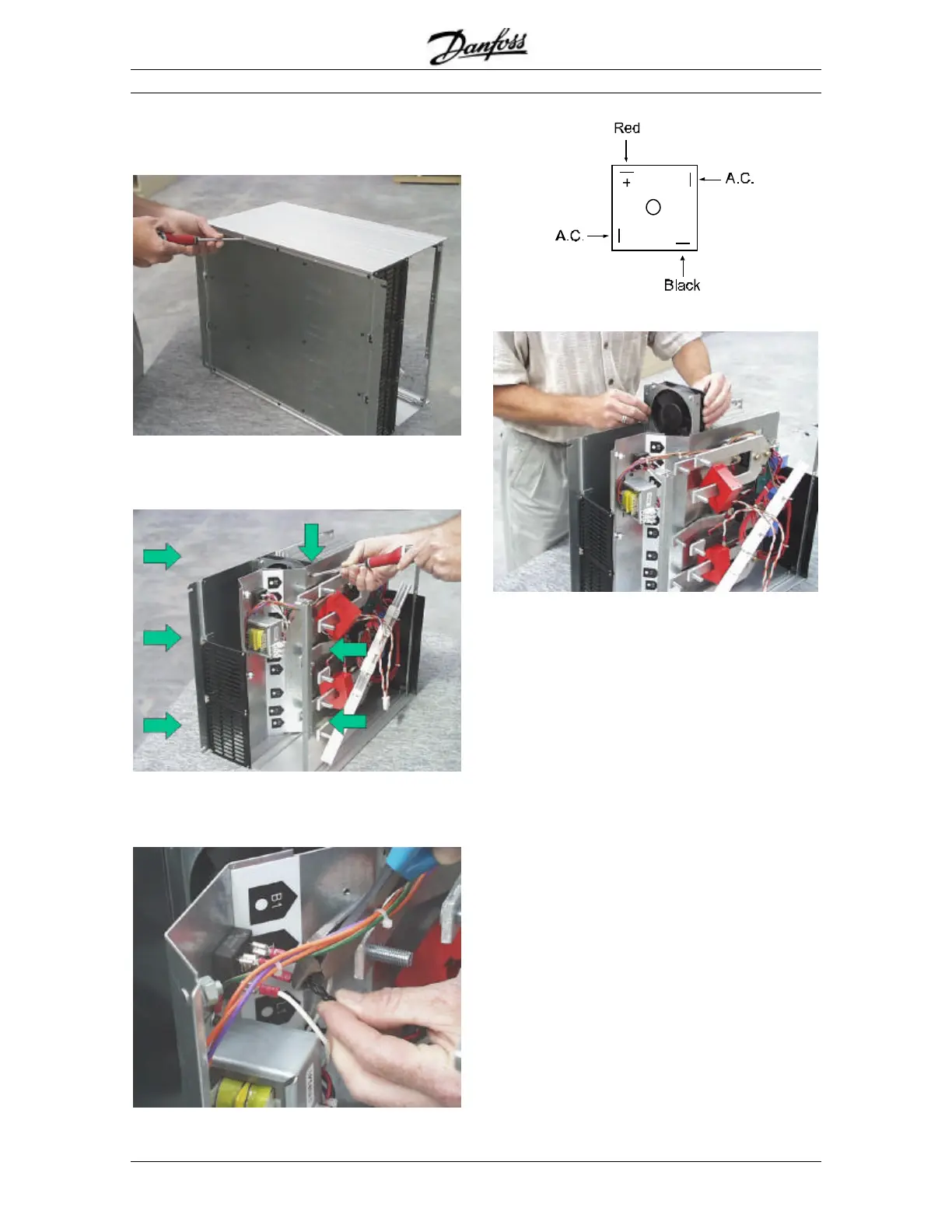

Step 8. Remove the left hand side panel by removing
the screws (4) securing the side panel to the base
plate.
Step 9. Remove the screws (6) securing the fan
bracket. This will also require the loosening of output
bus bar T2.
Step 10. Cut the crimp terminals (2) from the end of
the fan wiring loom. New crimp terminals are supplied
with the replacement fan for reassembly.
Step 11. Remove the fan bracket from the starter.
Step 12. Replace the damaged fan.
Step 13. Fit the fan bracket in reverse order.
