Component Replacement Procedures
Cooling Fans: MCD3185 ~ MCD3800

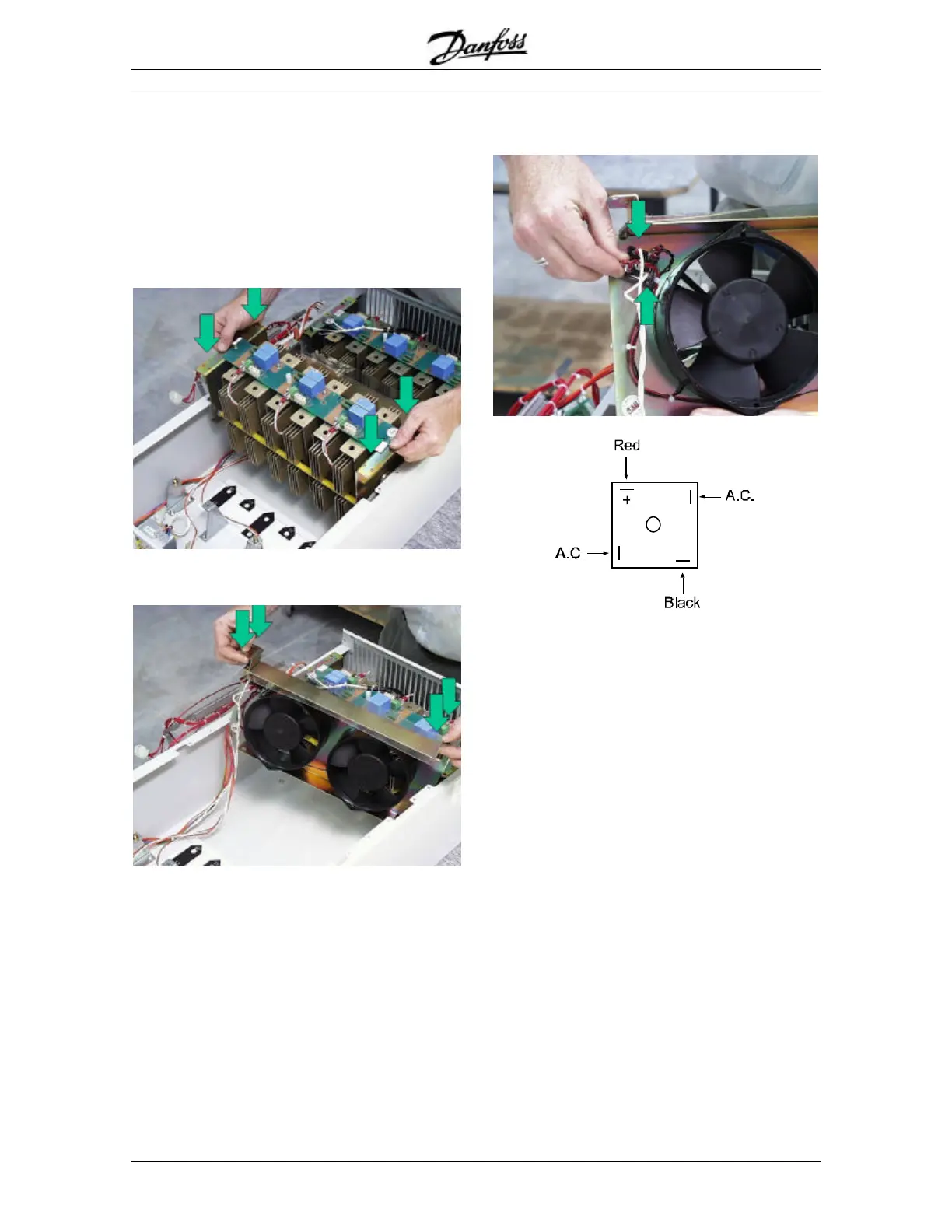

Step 1. Disassemble the MCD3000 as described for
Power Assembly replacement, Steps 1 to 11(Page 25)
Step 2. Undo the Power Assembly mounting screw (4)
and remove the lower power assembly. For models
MCD3600~3800 is will also require removal of the
polycarbonate fan insulation plate.
Step 3. Undo the Cooling Fan mounting assembly
fixing screws (4) and remove the fan assembly.
Step 4. Unplug the control supply from the cooling fan
rectifier to free the assembly.
Step 5. Replace the damaged fan on the fan
assembly and refit the Cooling Fan assembly in
reverse order.
