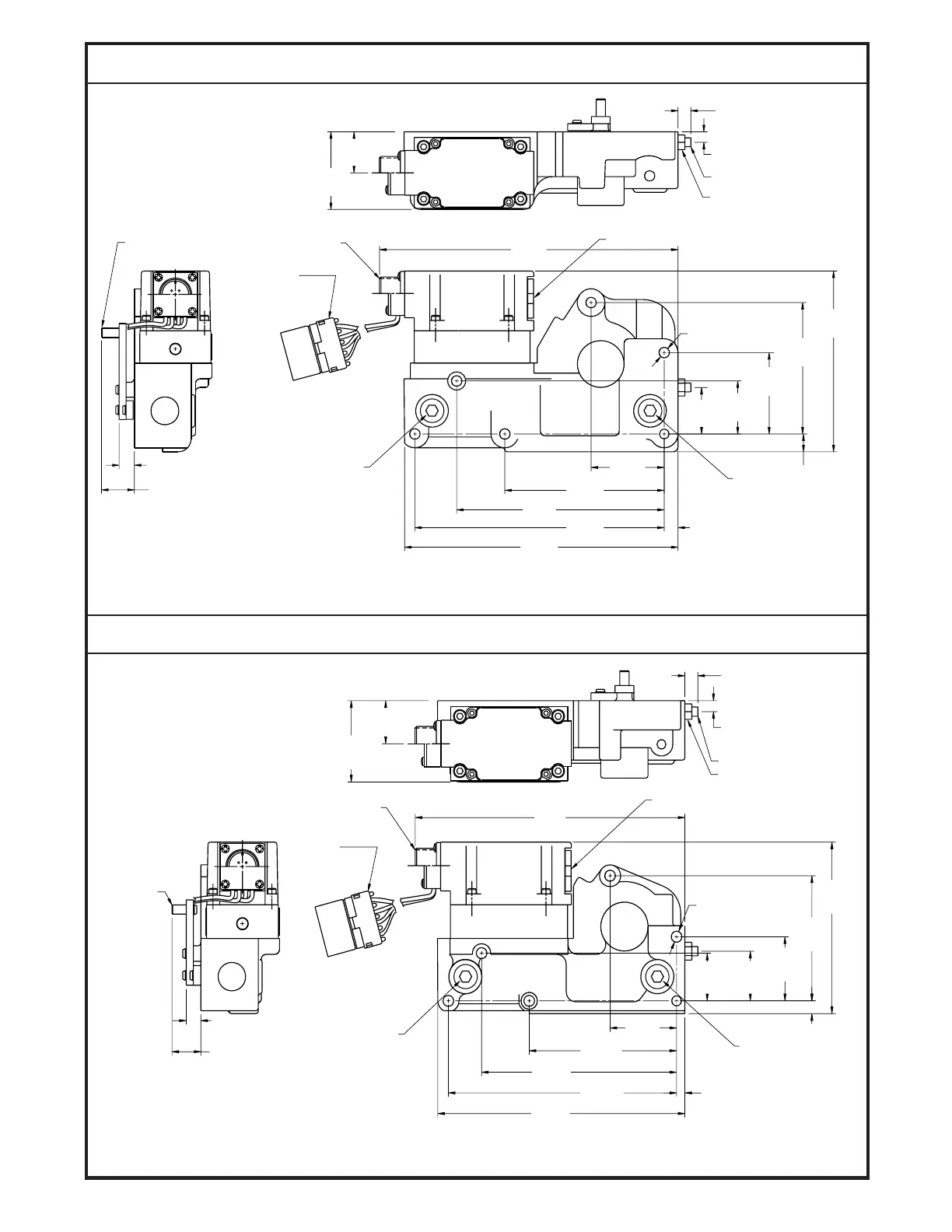

DIMENSIONS, 75, 100, 130, 180, AND 250 cc PUMP EDC
Dimensions of the MCV111B EDC for 75, 100, 130, 180, and 250 cc Pumps in Millimeters (Inches).
1788
CONTROL
LINKAGE
10,4
(0.41)
22,4
(0.88)
27,94
(1.10)
52,83
(2.08)
203,2
(8.00)
8,6 REF.
(0.34)
7,11
(0.28)
NEUTRAL ADJUST
7,14 DIA 6 PLACES
(0.28 DIA)
122,99
(4.84)
89,41
(3.52)
55,37
(2.18)
36,07
(1.42)
31,62
(1.25)
12,2
(0.48)
9,4
(0.37)
49,78
(1.96)
108,46
(4.27)
141,22
(5.56)
169,67
(6.68)
186,06
(7.33)
LOCK NUT
MANUAL OPERATOR
SAE
SERVO PORT
FITTING X1
SAE
SERVO PORT
FITTING X2
MS CONNECTOR
OPTION
PACKARD
WEATHER-PACK
CONNECTOR
OPTION
DIMENSIONS, 42 cc AND 55 cc PUMP EDC
LOCK NUT
MANUAL OPERATOR
SAE
SERVO PORT
FITTING X1
SAE
SERVO PORT
FITTING X2
CONTROL
LINKAGE
10,4
(0.41)
22,4
(0.88)
27,94
(1.10)
52,83
(2.08)
203,2
(8.00)
8,6 REF.
(0.34)
7,11
(0.28)
NEUTRAL ADJUST
7,14 DIA 6 PLACES
(0.281 DIA)
122,99
(4.84)
89,41
(3.52)
55,37
(2.18)
36,07
(1.42)
31,62
(1.25)
12,2
(0.48)
9,4
(0.37)
49,78
(1.96)
108,46
(4.27)
141,22
(5.56)
169,67
(6.68)
186,06
(7.33)
MS CONNECTOR
OPTION
PACKARD
WEATHER-PACK
CONNECTOR
OPTION
Dimensions of the MCV111B EDC for 42 cc and 55 cc Pumps in Millimeters (Inches).
1789
