130BB019.10
1
2
3
4
5
6
7
8
9
10

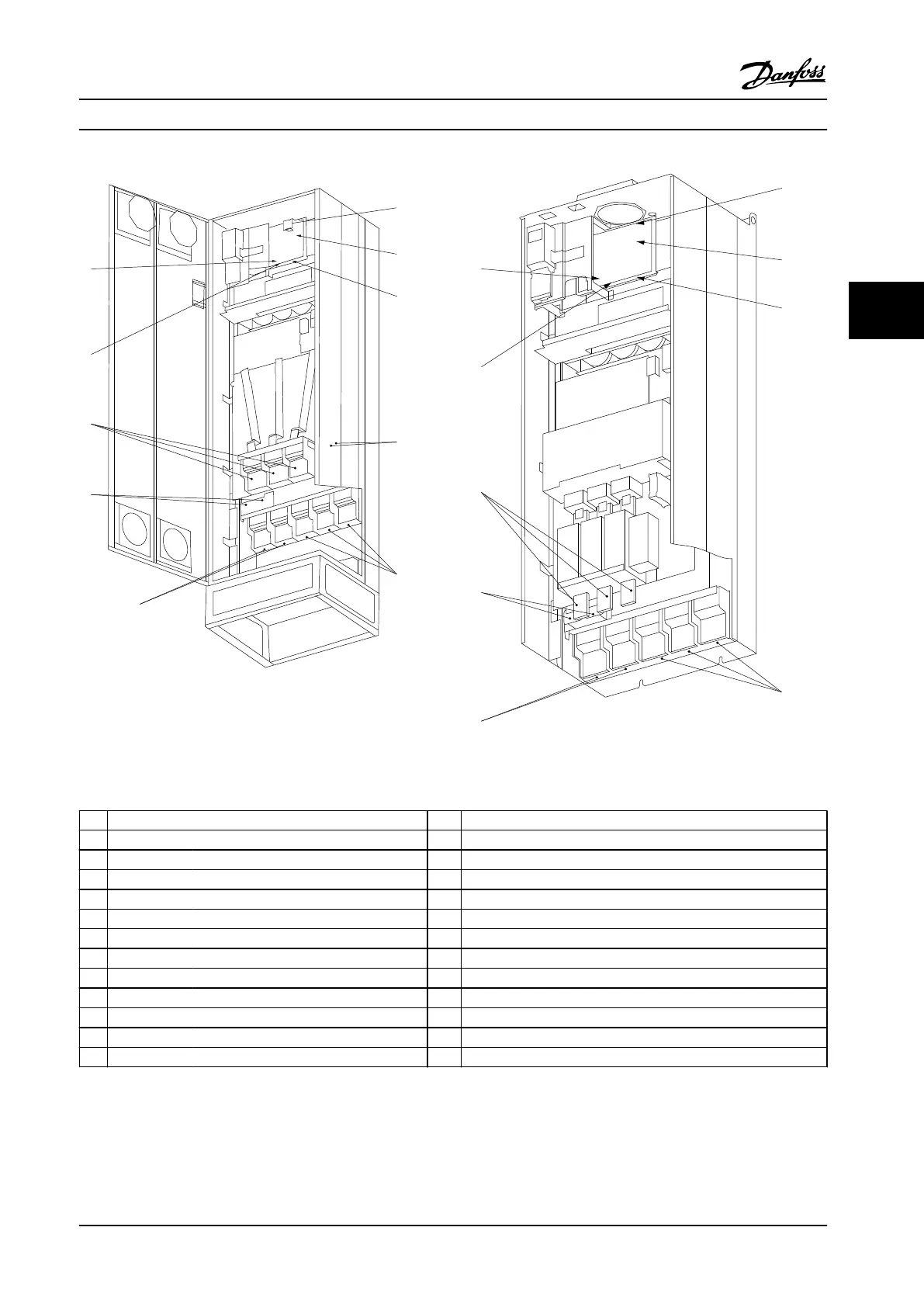

Figure 4.3 Compact IP21 (NEMA 1) and IP54 (NEMA 12)
Enclosure Type E1
130BB020.10
1
2
3
4
5
6
7
8
10
Figure 4.4 Compact IP00 (Chassis) with Disconnect, Fuse and
RFI Filter, Enclosure Type E2
1)
AUX relay 5) Load sharing
01 02 03 -DC +DC
04 05 06 88 89
2) Temp switch 6)
SMPS fuse (see Table 4.18 for part number)
106 104 105 7)
Fan fuse (see Table 4.19 for part number)
3) Line power 8) AUX fan
R S T 100 101 102 103
91 92 93 L1 L2 L1 L2
L1 L2 L3 9) Line power ground
4) Brake 10) Motor
-R +R U V W
81 82 96 97 98
T1 T2 T3
Table 4.2 Legend to Figure 4.3 and Figure 4.4
Electrical Installation Instruction Manual
MG11F522 Danfoss A/S © 08/2014 All rights reserved. 41
4 4
