Danfoss PTU 025 Instruction Manual

130BA861.13
4
6
5
7, 8, 9
3
2
1
1) External temperature monitoring 6) Motor
2) AUX relay U V W
01 02 03 96 97 98
04 05 06 T1 T2 T3
3) NAMUR 7)
NAMUR fuse (see Table 4.23 for part numbers)
4) AUX fan 8)
Fan fuses (See Table 4.19 for part numbers)
100 101 102 103 9)
SMPS fuses (See Table 4.18 for part numbers)
L1 L2 L1 L2
5) Brake
-R +R
81 82

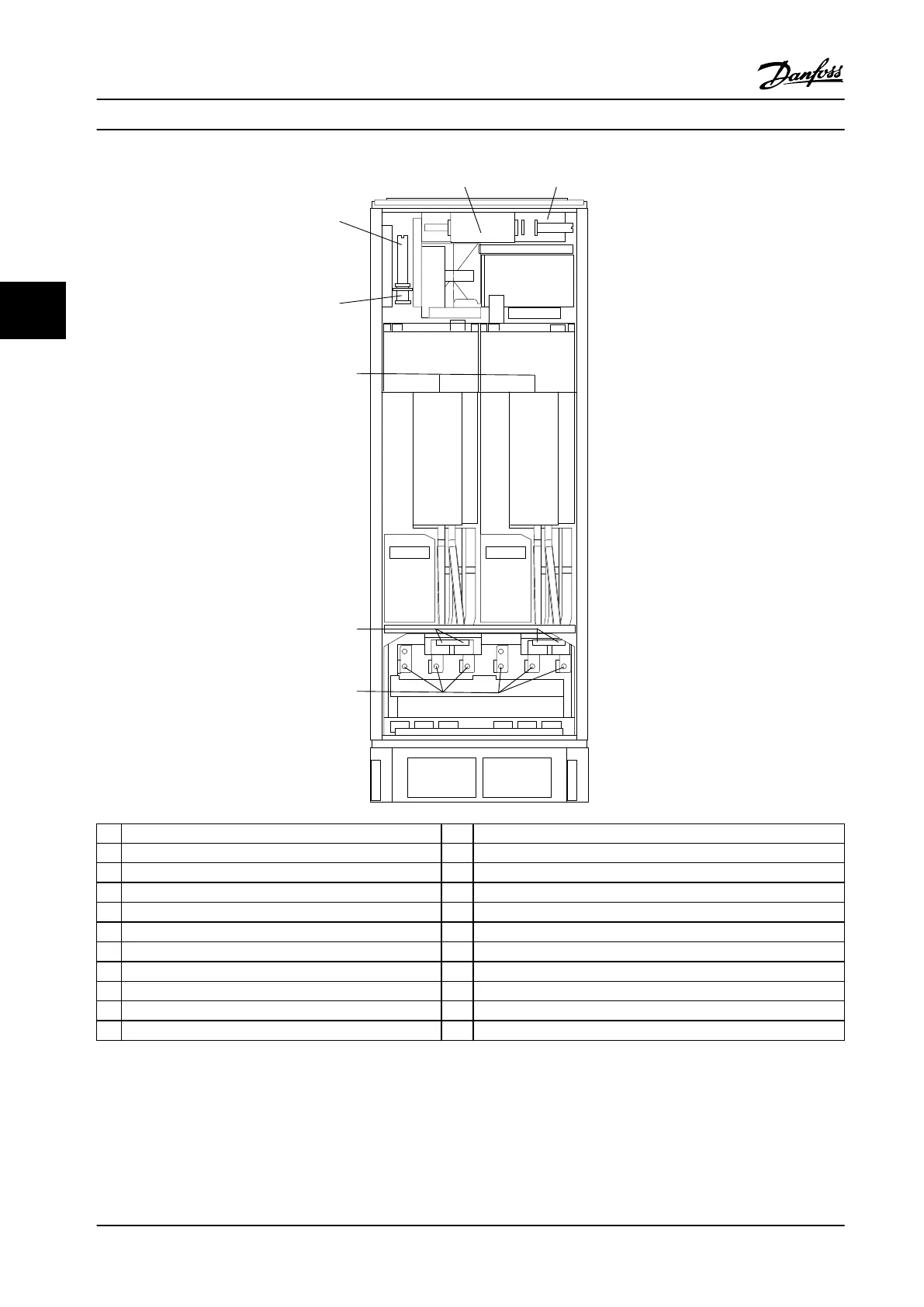

Figure 4.7 Inverter Cabinet, Enclosure Types F1 and F3
Electrical Installation
VLT
®
HVAC Drive FC 102
44 Danfoss A/S © 08/2014 All rights reserved. MG11F522
