PVG 32 PVM, mechanical activation

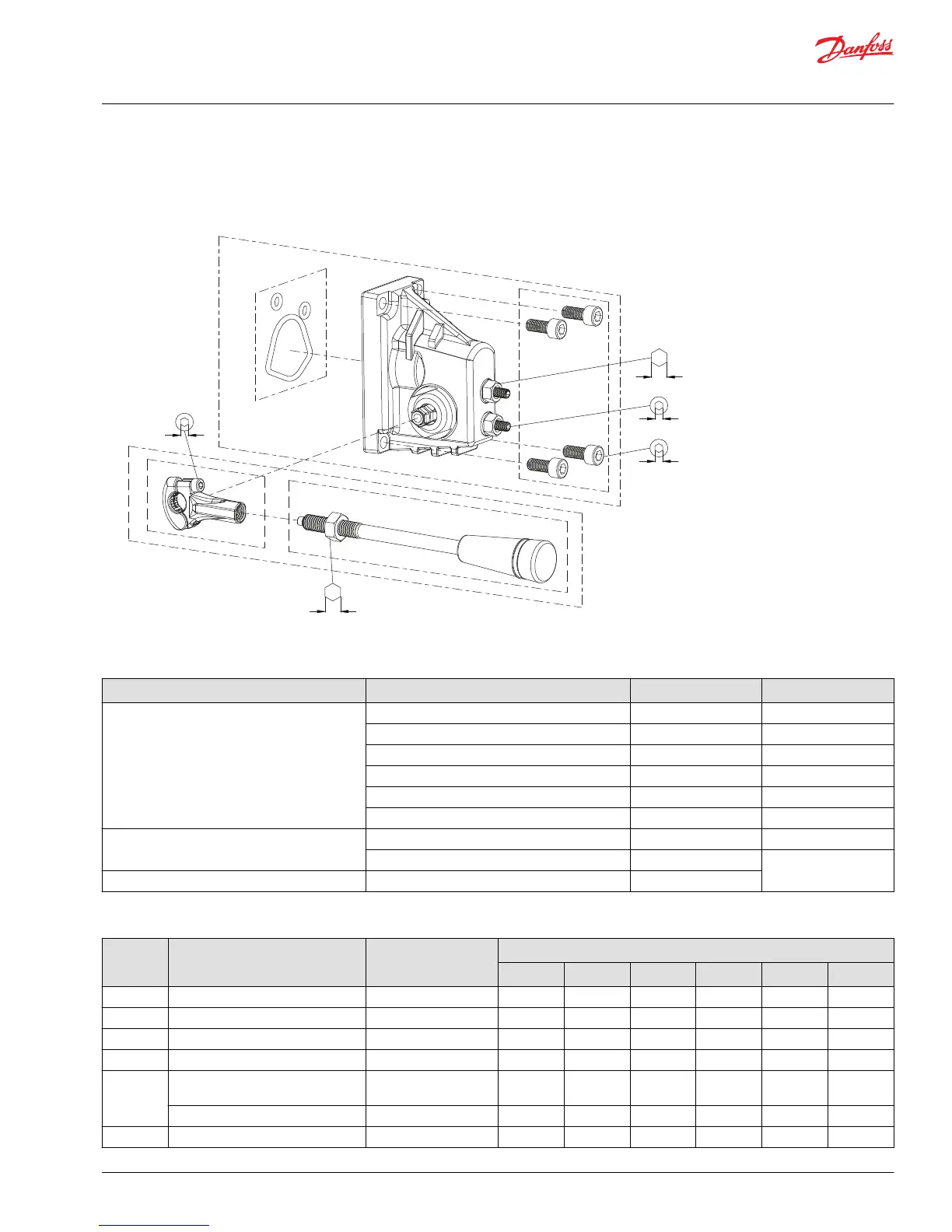

PVM exploded view
5[0.20]
8±0.5Nm
[70±4.5lbf-in]
10[0.40]
6±1Nm
[53±9lbf-in]
3[0.12]
13[0.51]
8±1Nm
[70±9lbf-in]
4[0.12]
2.5±1Nm
[22±9lbf-in]
1
2
6
3
5
4
PVM kits
Type Description Code number Letter
PVM (Aluminum) Non-adjustable 157B3193 A
Non-adjustable with lever base 157B3194 B
Non-adjustable with lever base and lever 157B3191 C
Adjustable 157B3173 D
Adjustable with lever base 157B3174 E
Adjustable with lever base and lever 157B3171 F
PVM (Anodized aluminum) Adjustable 157B3186 D
Adjustable with lever base and lever 157B3184 F
PVM (Cast iron) Adjustable with lever base and lever 157B3161
PVM parts list
Item Description Code number Letter
A B C D E F
1 PVM - 1 1 1 1 1 1
2 Seal kit 157B3999 1 1 1 1 1 1
3 Lever base 11064641 - 1 1 - 1 1
4 Lever with black knob 11077262 - - 1 - - 1
5 Lever base and lever with black
knob
11107587 - - 1 - - 1
Lever base and lever with red knob 11134809 - - - - - -
6 Screw M6x15 - 4 4 4 4 4 4
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
Danfoss | October 2018 AX284661889190en-000101 | 93
