Danfoss PVG 32

One of the drawbacks of a PC spool is that flow out of the valve is dependent on the size of the load and
with variable deadband.

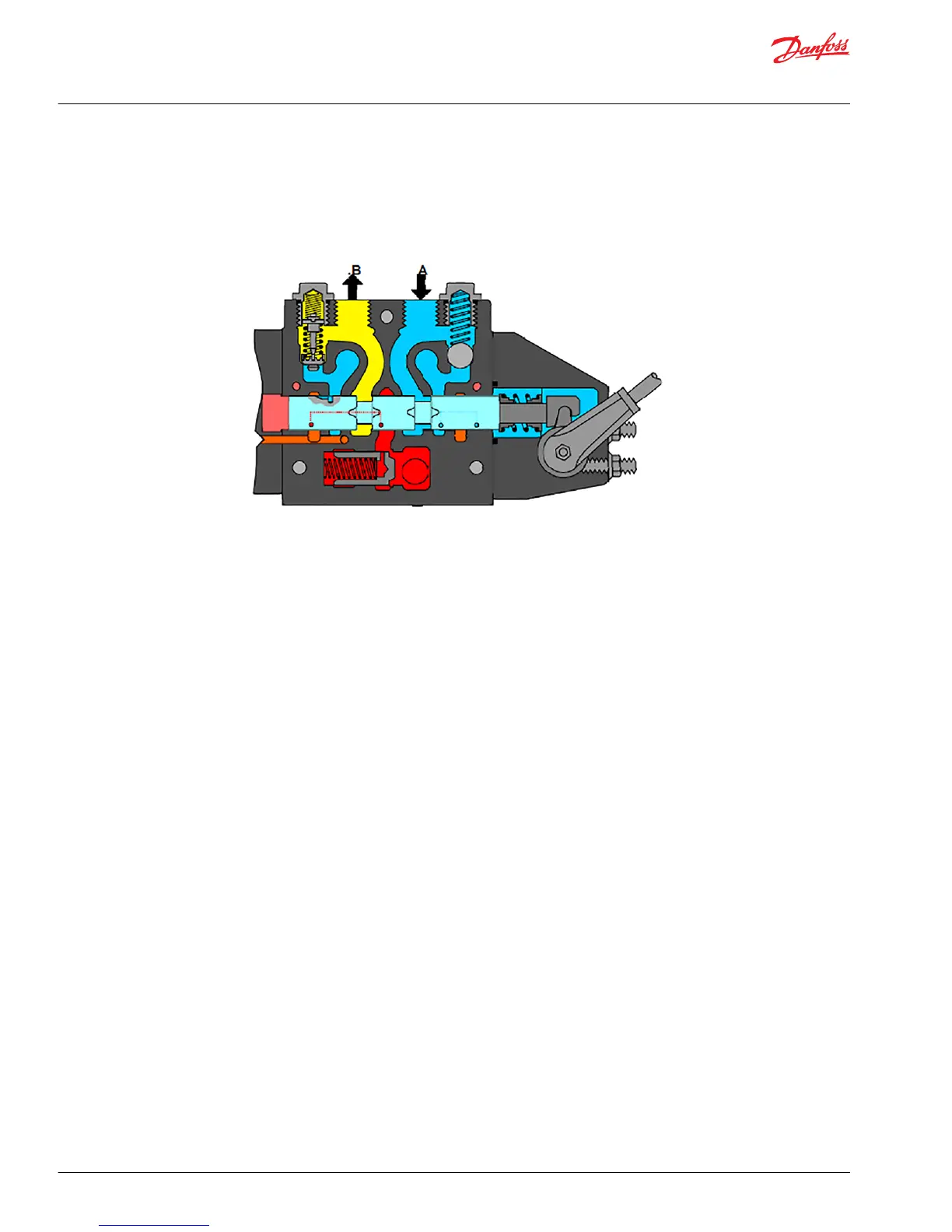

PC control to B port on page 8 illustrates a cut through PVB with PC control to one port.
PC control to B port
Application Guide
Using flow or pressure control spools
Functionality of a pressure control spool
