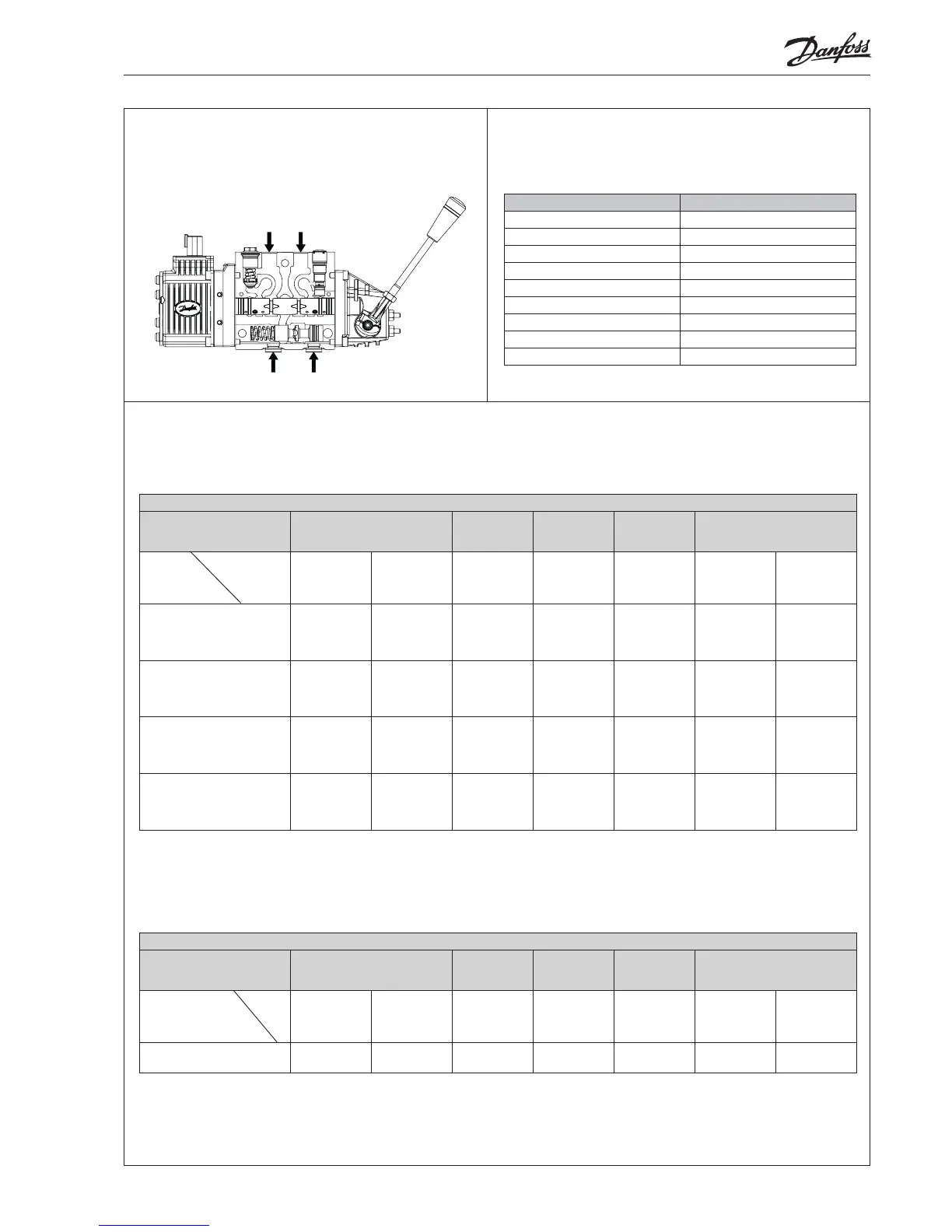

Danfoss PVG 32 Installation Guide

LS
B
AB
LS
A
P109135
Product Rated Pressure
PVG 32 w. PVS 300 bar [4351 psi]
PVG 32 w. PVSI 350 bar [5076 psi]
PVG 32 w. PVBZ 210 bar [3046 psi]
PVG 32 w. HIC steel 350 bar [5076 psi]
PVG 32 w. HIC aluminium 210 bar [3046 psi]
PVG 120/32 w. PVS 300 bar [4351 psi]
PVG 120/32 w. PVSI 350 bar [5076 psi]
PVG 100/32 w. PVS 300 bar [4351 psi]
PVG 100/32 w. PVSI 350 bar [5076 psi]
Proportional Valve Group PVG 32
© Danfoss A/S, 2017-03 AN00000350xx-04 • Rev 0102 • Mar 2017 3
Tilslutningsgevind type G (ISO 228/1)
Connection threads type G (ISO 228/1)
Anschlussgewinde Typ G (ISO 228/1)
Filetage de raccordement type G (ISO 228/1)
Maks. tilspændingsmoment / Max. tightening torques / Max. Anzugsmomente / Couples de serrage maxi
Tilslutning / Connection
Anschluss / Reccordment
P A/B T
LS, M, LSA,
LSB, PVH,
Accu
LX, PVS, PVSI
Tætning Gevind
Sealing Thread
Dichtung Gewinde
Etanchéite Filetage
G 1/2 G 3/4 G 1/2 G 3/4 G 1/4 G 1/8 G 1/4
med stålskive
with steel washer
mit Stahlscheibe
avec rondelle en acier
130 N•m
[1150 lbf•i n]
210 N•m
[1850 lbf•in]
130 N•m
[1150 lbf•i n]
210 N•m
[1850 lbf•in]
40 N•m
[350 lbf•in]
17 N•m
[150 lbf•in]
40 N•m
[350 lbf•in]
med kobberskive
With cooper washer
mit Kupferscheibe
avec rondelle en cuivre
30 N•m
[270 lbf•in]
50 N•m
[445 lbf•in]
30 N•m
[270 lbf•in]
50 N•m
[445 lbf•in]
20 N•m
[180 lbf•in]
15 N•m
[135 lbf•in]
20 N•m
[180 lbf•in]
med aluminiumsskive
with aluminium washer
mit Aluminiumscheibe
avec rondelle en aluminium
70 N•m
[620 lbf•in]
110 N • m
[970 lbf•in]
70 N•m
[620 lbf•in]
110 N • m
[970 lbf•in]
30 N•m
[270 lbf•in]
15 N•m
[135 lbf•in]
30 N•m
[270 lbf•in]
med skærekant
with cutting edge
mit Dichtkante
tranchant
130 N•m
[1150 lbf•i n]
210 N•m
[1850 lbf•in]
130 N•m
[1150 lbf•i n]
210 N•m
[1850 lbf•in]
40 N•m
[350 lbf•in]
17 N•m
[150 lbf•in]
40 N•m
[350 lbf•in]
Tilslutning - PVB, basismodul
Connection - PVB, basic module
Anschluss - PVB, Grundmodul
Raccordement - PVB, module de base
Nominel tryk
Rated pressure
Nomineller Druck
Pression nominale
UN og UNF tilslutningsgevind med O-ringstætning
UN and UNF connection threads – O-ring boss port
UN und UNF Anschlussgewinde mit O-ringsdichtung
Filetage de raccordement UN et UNF avec cône pour joint torique
Maks. tilspændingsmoment / Max. tightening torques / Max. Anzugsmomente / Couples de serrage maxi
Tilslutning / Connection
Anschluss / Reccordment
P A/B T
LS, M, LSA,
LSB, PVH,
Accu
LX, PVS, PVSI
Forskruning
Screwed connection
Verschraubung
Raccord
7/8 in - 14 1 1/16 in - 12 7/8 in - 14 1 1/16 in - 12 1/2 in - 20 3/8 in - 24 1/2 in - 20
O-ring
Joint torique
90 N•m
[800 lbf•in]
120 N•m
[1060 lbf•in]
90 N•m
[800 lbf•in]
120 N•m
[1060 lbf•in]
30 N•m
[270 lbf•in]
10 N•m
[90 lbf•in]
30 N•m
[270 lbf•in]
UNF

Danfoss PVG 32 Specifications

General

Category	Control Unit
Maximum working pressure	350 bar
Size	32
Type	Proportional Valve
Maximum operating pressure	420 bar
Porting pattern	ISO 4401
Electrical connection	AMP
