Danfoss TP7000-RF Installation Guide

TP7000 RANGE
6
F
D
ES
DK
NL
I
GR
PL
LT
CZ
HR
RO
GB

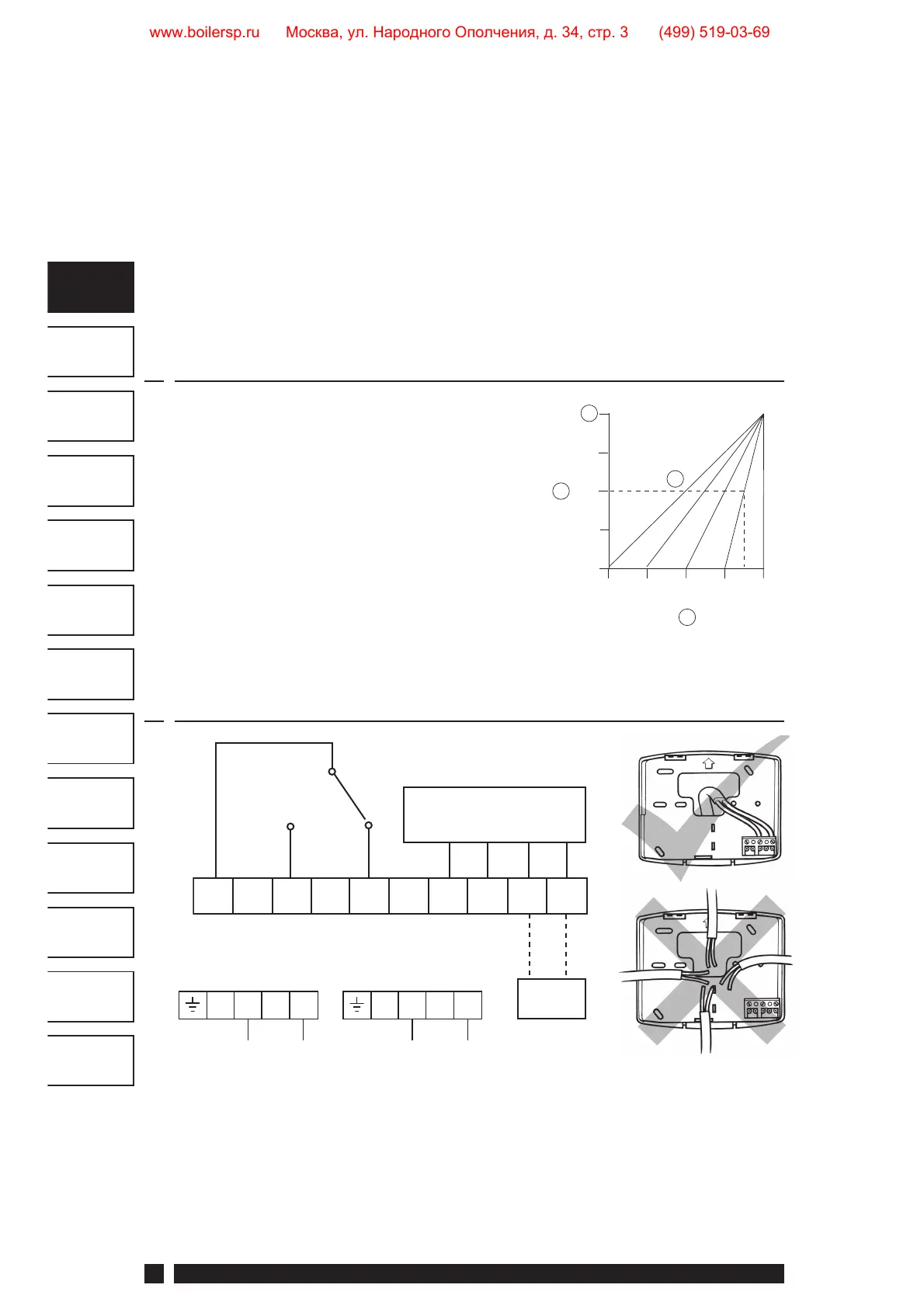

3.3 TP7000 Wiring (not RF models)
7-day - each day can be programmed with diff erent times and
temperatures.
5/2 day - one set of times & temperatures for weekdays, and another
set for weekends.
Optimum start control - function which switches the heating on
earlier than the Event 1 programmed time to ensure the required
temperature is achieved by the set time.
Chrono-proportional control - energy saving feature which fi res the
boiler at regular intervals to maintain a set temperature, achieving a
constant ambient environment for the user.
3.2 Setting Optimum Start Control
-4°C
-3°C
-2°C
-1°C
A
B
C
120
min.
90
min.
60
min.
30
min.
Event 1
time (0
)
D
 Set Sw2 to OSC ON
(see DIL settings page 4)
 Select OPTIMISER CURVE in
programming mode
A Event 1 Set Point
B Deviation from Set Point
C Switch On Time prior to Event
D Optimiser Curve Setting
1
234567
ELECTRONICS
REMOTE
SENSOR
'A' models
only
COM
ON
OFF
B
C
M 24V models only
24V
L
N
M 230V models only
230V
Note: 1.0mm
2
solid copper cable should be used to connect the
remote sensor to the TP7000A. Please ensure that:
a) the cable length does not exceed 50 metres,
b) to avoid electrical interference the cable should not be run
parallel in close proximity to other cables carrying mains electricity,
and where necessary the cable should cross over mains cabling at
right angles.
