Danfoss TP7000 Series Installation Guide

Danfoss Heating
5
F
D
ES
DK
NL
I
GR
PL
LT
CZ
HR
RO
GB
All models
w
1
5/2 day programming 7 day programming
w
2
Optimum start contoller enabled Optimum start contoller disabled
w
3
Chrono-proportional control On/O control
TP7000, M, & RF models with 3/6 cycles per hour option
w
4
Chrono-proportional, 6 cycles / hour Chrono-proportional, 3 cycles / hour

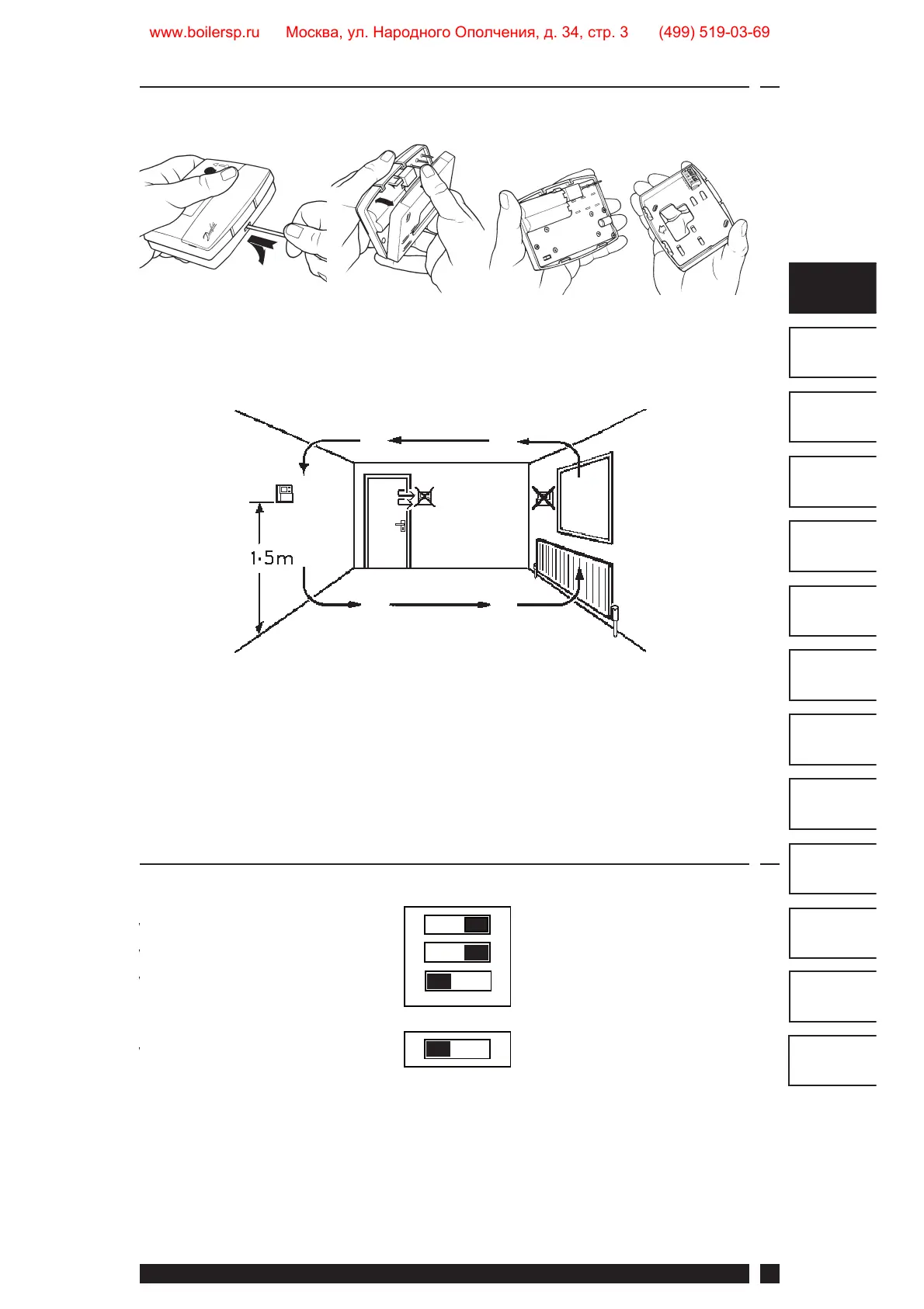

3.1 DIL Switch Settings
 First remove the wallplate from the back of the unit.
 From the top left hand corner of the wallplate, there must be
clearances of at least 15mm to the right, 15mm to the left, 30mm
above and 100mm below in order to mount the plug-in module.
 Before mounting the unit ensure the 4 DIL switches on the
rear of the unit have been moved to the required settings (see
below). Factory preset is 7-day, with Optimum Start and Chrono-
proportional control OFF.
NOTE
Use Chrono 3 for high thermal inertia systems, e.g. fl oor standing cast iron
boilers.
Use Chrono 6 for low thermal inertia systems, e.g. low water content
boilers and combi boilers.
3.0 Installation
www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

Danfoss TP7000 Series Specifications

General

Type	Programmable Room Thermostat
Mounting	Wall-mounted
Switching Voltage	230 VAC
Protection Class	IP30
Programs	7-day programming
Display	LCD
Battery	2 x AA batteries
Power Source	Battery
Switching Current	3A (resistive)
Accuracy	±0.5°C
