6

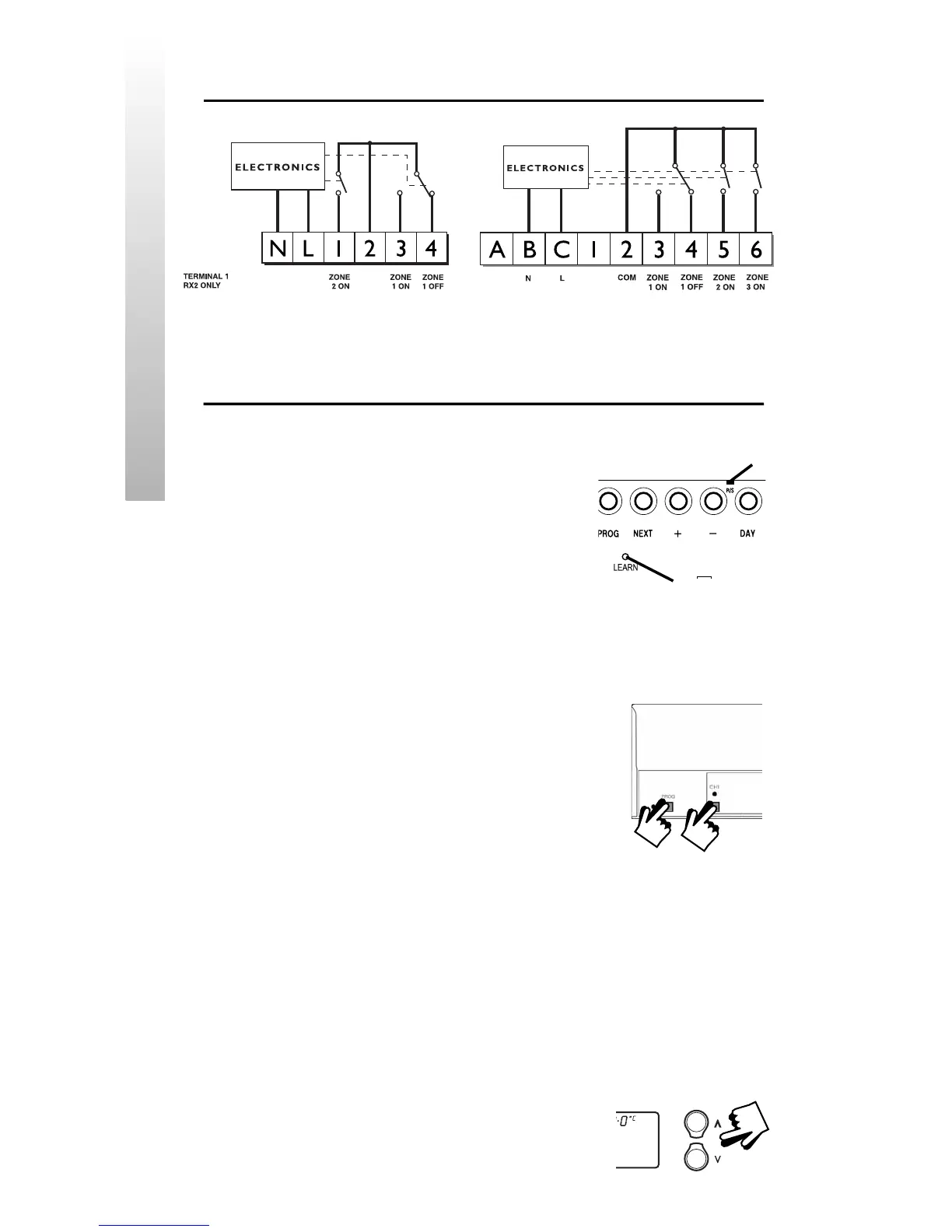

Commissioning (RF versions only)
To tune the RX receiver to the frequency of the thermostat
signal, follow steps 1-5 below
LEARN
1. TP7000-RF
Press the recessed RESET button,
using a non-metallic object, to reset
the unit.
2. Press & hold the recessed LEARN button for 3 seconds,
using a non-metallic object.
NOTE: Thermostat now transmits continuously for 5 mins
3. RX1
Press and hold buttons PROG and CH1
for 3 seconds until green light fl ashes once
4. RX2 (if applicable)
Stat 1 - perform steps 1-3
Stat 2 - wait 5 mins, perform steps1-2 and then press
PROG and CH2 on RX2
RX3 (if applicable)
Stat 1 - perform steps 1 – 3
Stat 2 - wait 5 mins, perform steps 1-2 and then press
PROG and CH2 on RX3
Stat 3 - wait 5 mins, perform steps 1-2 and then press
PROG and CH3 on RX3
5. TP7000-RF
Press or to return the unit to
normal operation.
RESET
GB - Installation Instructions
Receiver Wiring (RF models only)
RX1 & 2 (3055 12/01)
COM
RX3 (3056 12/01)
RX1 & RX2
RX3
NB. For mains voltage operated systems link terminal 2 to mains live supply
