Danfoss TS715Si Installation Guide

TS715SI
6
Before mounting the unit, ensure the 4 DIL switches on the rear have
been moved to the required settings.
Tick the INSTALLER SETTING box on the inside fl ap label to notify user
in which mode their unit is set (24hr, 5/2 day or 7 day).
GB
Not Used
Not Used
5/2 Day
7 Day
Sw.1
Sw.2
Sw.3
Sw.4
Not Used
Not Used
7 Day or 24 Hour
24 Hour

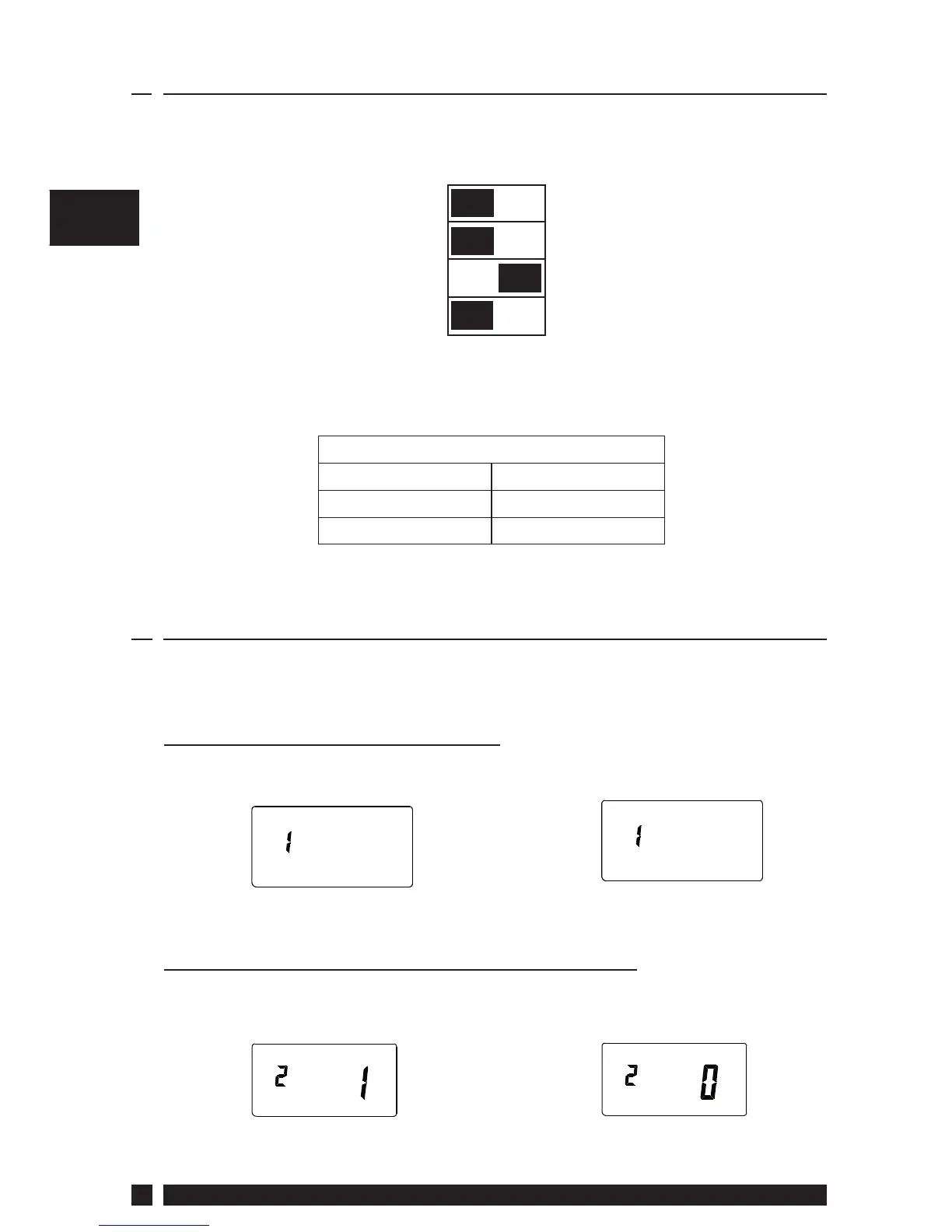

3.2 DIL Switch Settings
INSTALLER SETTING
24 Hour
5+2 Day
7 Day
4.0 Advanced Programming Options
To enter advanced programming press PROG, + and DAY/HOL
together and hold for 5 seconds.
Option 1 - (3 or 2 On/Off s per day)
Use + or - to change between 3 or 2 on/off s each day.
Option 2 - (Disable or enable auto time change)
Press NEXT, then use + or - to change between auto time change
enabled to auto time change disabled.
3
2
3 on/off s each day (Factory setting) 2 on/off s each day
Auto time change enabled (Factory setting) Auto time change disabled

Danfoss TS715Si Specifications

General

Switch Rating	230V AC, 50Hz
Mounting	Surface
Operating Voltage	230V AC
Frost Protection	Yes
Display	LCD
Accuracy	±0.5°C
Protection Class	IP30
Type	Electronic
Programming	7 day
Battery	2xAA
Temperature Range	5°C to 30°C
Dimensions	86 x 86 x 36 mm
Control Mode	On/Off
Ambient Temperature	0°C to 50°C
