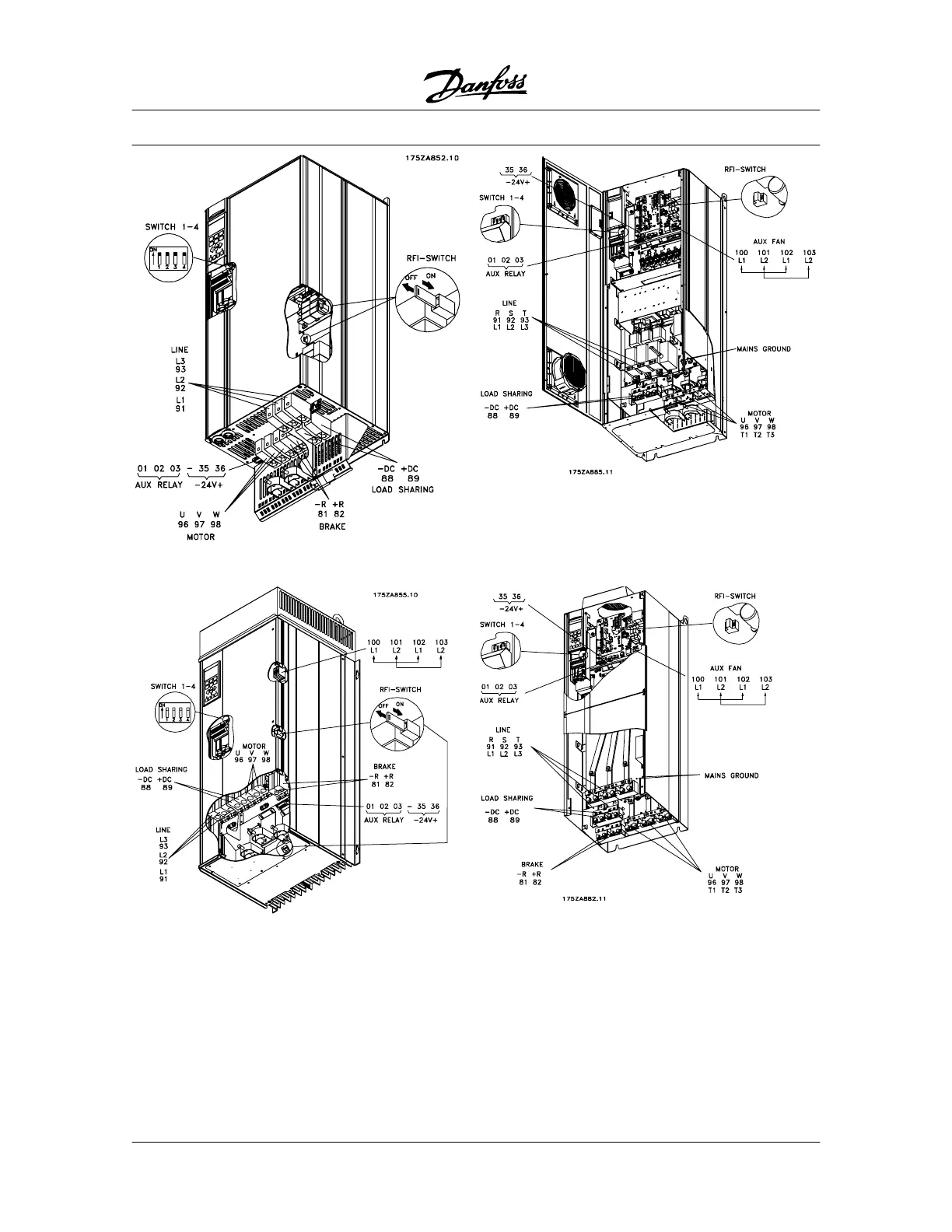

VLT® 5000 Crane
Status word [Hex] gives the status word sent
via the serial communication port in Hex code
from the frequency converter.
Brake power/2 min. [KW] states the brake
power transferred to an external brake resistor.
The mean power is calculated continuously
for the latest 120 seconds.
It is assumed that a resistor value has been
entered in parameter 401.
Brake power/sec. [kW] states the present brake
power transferred to an external brake resistor.
Stated as an instantaneous value.
It is assumed that a resistor value has been
entered in parameter 401.
Heat sink temp. [°C] states the present heat sink
temperature of the frequency converter. The cut-out
limit is 90 ± 5°C; cutting back in occurs at 60 ± 5°C.
Alarm word [Hex] indicates one or several
alarms in a Hex code.
Control word. [Hex] indicates the control
word for the frequency converter. See Serial
communicationinAppendix.
Warningword[Hex]indicates one or more
warnings in a Hex code.
010 DISPLAY LINE 1.1
Value:
See parameter 009 for choices.
✭ Reference [%]
Function:
This parameter enables a choice of the first of three data
values to be shown on the display, line 1, position 1.
For display read-outs, press the [DIS-
PLAY/STATUS] button.
011 DISPLAY LINE 1.2
Value:
See parameter 009 for choices
✭ Motor current [A]
Function:
This parameter enables a choice of the second
of the three data values to be shown on the
display, line 1, position 2.
For Display read-outs, press the [DIS-
PLAY/STATUS] button.
012 DISPLAY LINE 1.3
Value:
See parameter 009 for choices
✭ Power [kW]
Function:
Thisparameterenablesachoiceofthethirdofthethree
data values to be shown on the display, line 1, position 3.
Display read-outs are made by pressing the
[DISPLAY/STATUS] button.
014 LCP STOP
Value:
Not possible (DISABLE)
[0]
✭Possible (ENABLE)
[1]
Function:
This parameter disables/enables the local stop function
in question from the control panel.
This key is used when parameter 002 has been
set for Remote control [0] or Local [1].
Description of choice:
If Disable [0] is selected in this parameter, the
[STOP] key will be inactive.
NB!:
If Enable is selected, the [STOP] key
overrules all Start commands.
015 LCP JOGGING
Value:
✭Not possible (DISABLE)
[0]
Possible (ENABLE)
[1]
Function:
In this parameter, the jog function can be
enabled/disabled on the control panel.
The key can be used when parameter 002 has been
set for Remote control [0] or Local [1].
NB!:
LCP jogging is only available when
running in FC profile!
Description of choice:
If Disable [0] is selected in this parameter, the
[JOG] key will be inactive.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
