VLT® 5000 Crane
Programming
Description of choice:
Read out as one value.
Indication range: 0.0 - 999.9.
Reset the fault log after manual initialisation.
618 RESET kWh COUNT
Value:
✭No reset (DO NOT RESET)
[0]
Reset (RESET COUNTER)
[1]
Function:
Resetting parameter 602 kWh counter to zero.
Description of choice:
If Reset [1] is selected and you press the [OK] key, the
frequency converter’s kWh counter is reset to zero. This
parameter cannot be selected via serial communication.
NB!:
When the [OK] key is activated, the
counter is reset to zero.
619 RESET RUN. HOUR
Value:
✭No reset (DO NOT RESET)
[0]
Reset (RESET COUNTER)
[1]
Function:
Resetting of parameter 601 Hours run to zero.
Description of choice:
If Reset [1] is selected and you press the [OK]
key, the frequency converter’s parameter 601 is
reset to zero Hours run. This parameter cannot
be selected via serial communication.
NB!:
When the [OK] key is activated the
parameter is reset to zero.
620 OPERATION MODE
Value:
✭Normal function (NORMAL OPERATION)
[0]
Control card test (CONTROL CARD TEST)
[2]
Initialisation (INITIALIZE)
[3]
Function:
In addition to its normal function, this parameter
can be used for two different tests.
Also, all parameters (except parameters
603-605) can be initialised.
This function will not become active until the mains
supply to the frequency converter has been turned
off and then turned on again.
Description of choice:
Normal function [0] is selected for normal operation
with the motor in the selected application.
Control card test [2] is selected if control of
the analogue and digital inputs, as well as the
analogue, digital relay outputs and the +10 V control
voltage is desired. A test connector with internal
connections is required for this test.
Use the following procedure for the control card test:
1. Select Control card test.
2. Cut off the mains supply and wait for the
lightinthedisplaytogoout.
3. Insert the test plug (see below).
4. Connect to mains.
5. The frequency converter expects the [OK] key to be
pressed (if no LCP, set to Normal operation,when
the frequency converter will start up as usual).
6. Carry out various tests.
7. Press the [OK] key.
8. Parameter 620 is automatically set to
Normal operation.
If a test fails, the frequency converter will move into
an infinite loop. Replace control card.

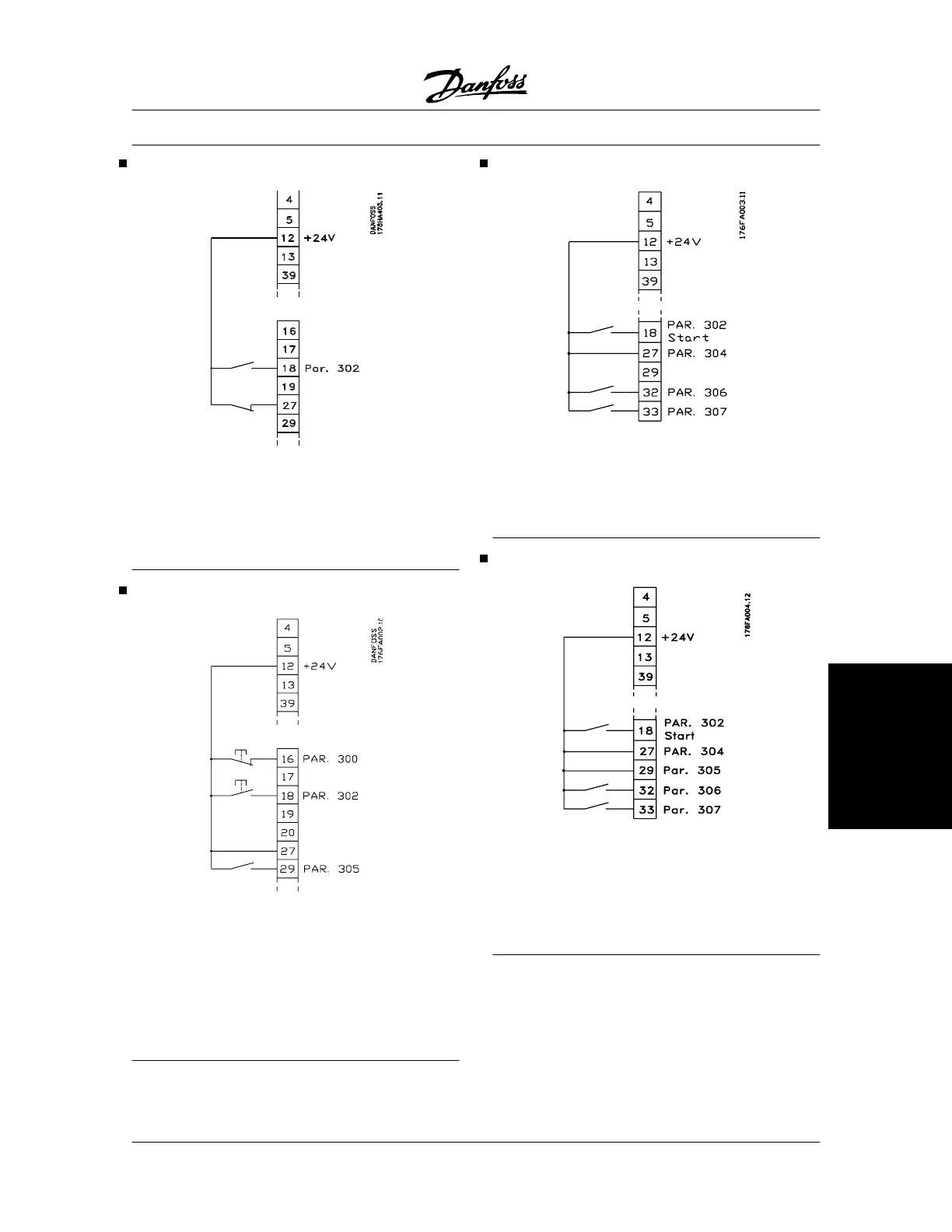

Test plugs (connect the following terminals
to each other):
4-16
5-12
17 - 18 - 19 - 26
20 - 39 - 55
27 - 29 - 32 - 33 - 37 - 46
42 - 60
45 - 53 - 58
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.50.N4.02 - VLT is a registered Danfoss trademark
71
