VLT
®
6000 HVAC Series
Programming
322 Terminal 45, output, pulse scaling
(AO 45 PULS SCALE)
Value:
1 - 32000 Hz
✭ 5000 Hz
Function:
This parameter allows scaling of the pulse output signal.
Description of choice:
Set the desired value.

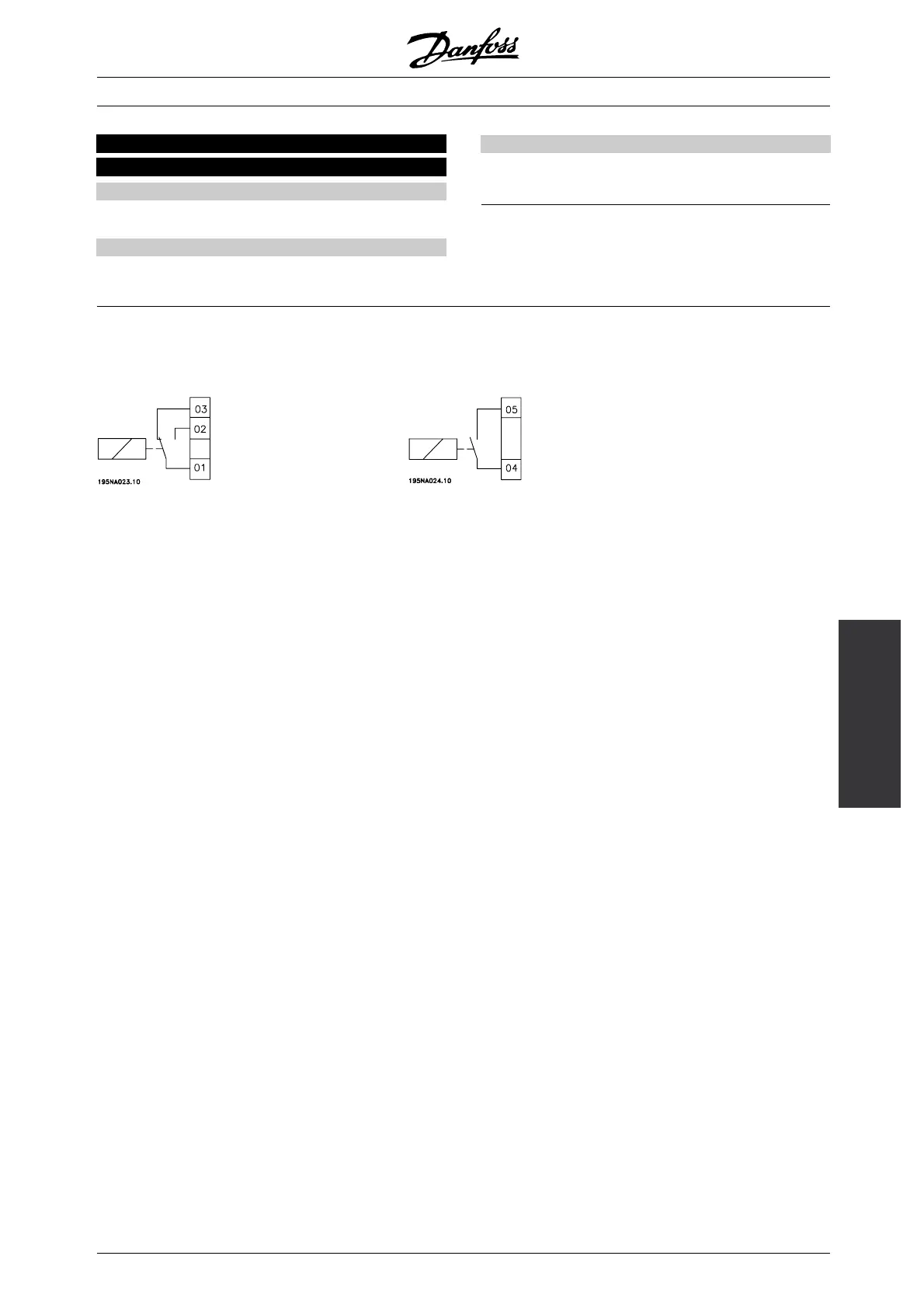

■ Relay outputs
Relay outputs 1 and 2 can be used to give the
present status or a warning.
Relay 1 Relay 2
1-3break,1-2make 4-5make
Max. 240 V AC, 2 Amp. Max. 50 V AC, 1 A, 60 VA.
The relay is placed with
the mains and motor
terminals.
Max. 75VDC,1A,30W.
The relay is placed on the control card,
see Electrical installation, control cables.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.61.A5.02 - VLT is a registered Danfoss trademark
111
