■ LC filter VLT 8042-8062 200-240 V /
8072-8602 380 - 480 V

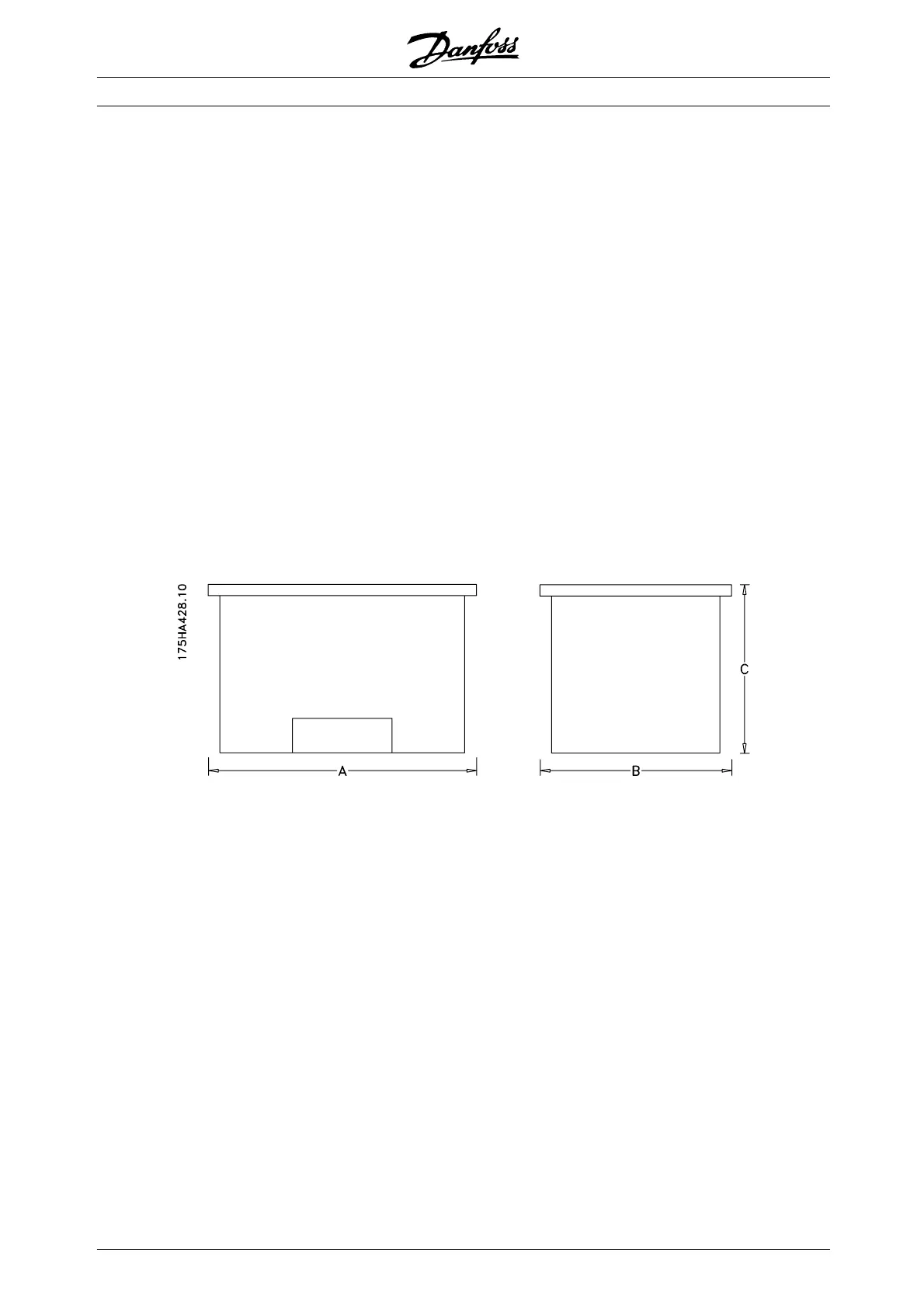

The table and the drawing give the measurements of IP
20 LC filters. IP 20 LC filters must be integrated and
protected against dust, water and aggressive gases.
Max. motor cable length:
- 150 m screened/armoured cable
- 300 m unscreened/unarmoured cable
If EMC standards are to be complied with:
- EN 55011-1B: Max. 50 m screened/armoured
cable
- EN 55011-1A: Max. 150 m screened/armoured
cable
LC-filter IP 20
LC type A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] Weight [kg]
175Z4701 740 550 600 70
175Z4702 740 550 600 70
175Z4703 740 550 600 110
175Z4704 740 550 600 120
175Z4705 830 630 650 220
175Z4706 830 630 650 250
175Z4707 830 630 650 250
175Z3139 1350 800 1000 350
175Z3140 1350 800 1000 400
175Z3141 1350 800 1000 400
175Z3142 1350 800 1000 470
MG.83.A2.02 - VLT is a registered Danfoss trademark
22
