VLT
®
8000 AQUA
Programming

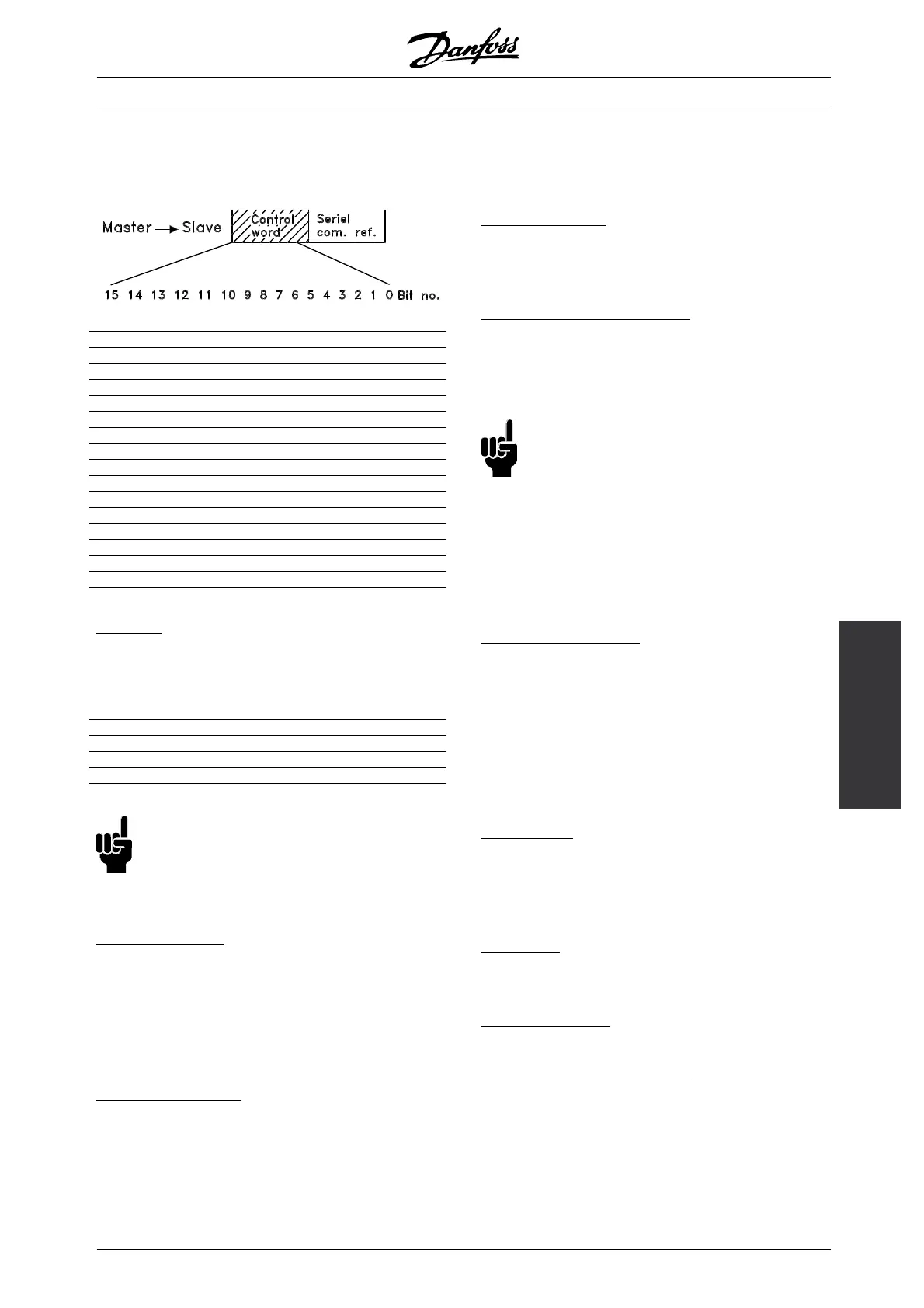

Control word according to FC protocol
The control word is used for transmitting commands
fromamaster(e.g. aPC)toaslave.
Bit Bit = 0 Bit =1
00 Preset ref. lsb
01 Preset ref. msb
02 DC braking
03 Coasting stop
04 Quick stop
05 Freeze output frequency
06 Ramp stop Start
07 Reset
08 Jog
09 No function No function
10 Data not valid Data valid
11 Activate relay 1
12 Activate relay 2
13 Choice of setup lsb
14 Choice of setup msb
15 Reversing
Bit 00/01:
Bits 00 and 01 are used for choosing between the four
pre-programmed references (parameters 211- 214
Preset reference) in accordance with the following table:
Preset ref. Parameter Bit 01 Bit 00
12110 0
22120 1
32131 0
42141 1
NB!:
Parameter 508 Choice of preset reference
is used to choose how bits 00/01 are
to be gated with the corresponding
functions of the digital inputs.
B
it 02, DC BRAKE:
Bit02=0leadstoDCbrakingandstop. Set
braking current and duration in parameter 114 DC
braking current and in parameter 115 DC braking
time. Note: Parameter 504 DC brake is used
for selecting how bit 02 is to be gated with the
corresponding function of terminal 27.
B
it 03, Coasting stop:
Bit 03 = "0" means that the frequency converter
immediately "lets go" of the motor (the output
transistors are "turned off"), which means that
the motor runs freely until it stops.
Bit 03 = "1" means that the frequency converter is able
to start the motor, provided the other conditions for
starting are fulfilled. Note: In parameter 503 Coasting
stop thechoiceismadeofhowbit03istobegated
with the corresponding function of terminal 27.
B
it 04, Quick stop:
Bit 04 = "0" leads to a stop in which the motor
speedisrampeddowntostopviaparameter
207 Ramp-down time.
B
it 05, Freeze output frequency:
Bit 05 = "0" means that the given output frequency (in
Hz) is frozen. The frozen output frequency can now
only be changed via the digital inputs programmed
for Speed up and Speed down.
NB!:
If Freeze output is active, the frequency
converter cannot be stopped via Bit 06 Start
or via terminal 18. The frequency converter
can only be stopped in the following ways:
Bit 03 Coasting stop
Terminal 27
Bit 02 DC braking
Terminal 19 programmed for DC braking
B
it 06, Ramp stop/start:
wBit 04 = "0" leads to a stop in which the motor
speedisrampeddowntostopviaparameter
207 Ramp-down time.
Bit 06 = "1" means that the frequency converter is able
to start the motor, provided the other conditions for
starting are fulfilled. Note: In parameter 505 Start a
choice is made of the way bit 06 Ramp stop/start is to
be gated with the corresponding function of terminal 18.
B
it 07, Reset:
Bit 07 = "0" leads to no reset.
Bit07="1"meansthatatripisreset.
Reset is activated on the leading edge of the signal,
i.e. at the change from logic 0 to logic 1.
B
it 08, Jog:
Bit 08 = "1" means that the output frequency is
determined by parameter 209 Jog frequency.
B
it 09, No function:
Bit 09 has no function.
B
it 10, Data not valid/Data valid:
Used for telling the frequency converter whether the
control is to be used or ignored. Bit 10 = "0" means that
the control word is ignored. Bit 10 = "1" means that the
control word is used. This function is relevant because
the control word is always contained in the telegram,
regardless of the type of telegram used, i.e. it is possible
MG.83.A2.02 - VLT is a registered Danfoss trademark
155
