VLT
®
8000 AQUA
■ Mechanical installation
Please pay attention to the requirements
that apply to integration and field mounting
kit, see the below list. The information given
in the list must be observed to avoid serious damage
or injury, especially when installing large units.

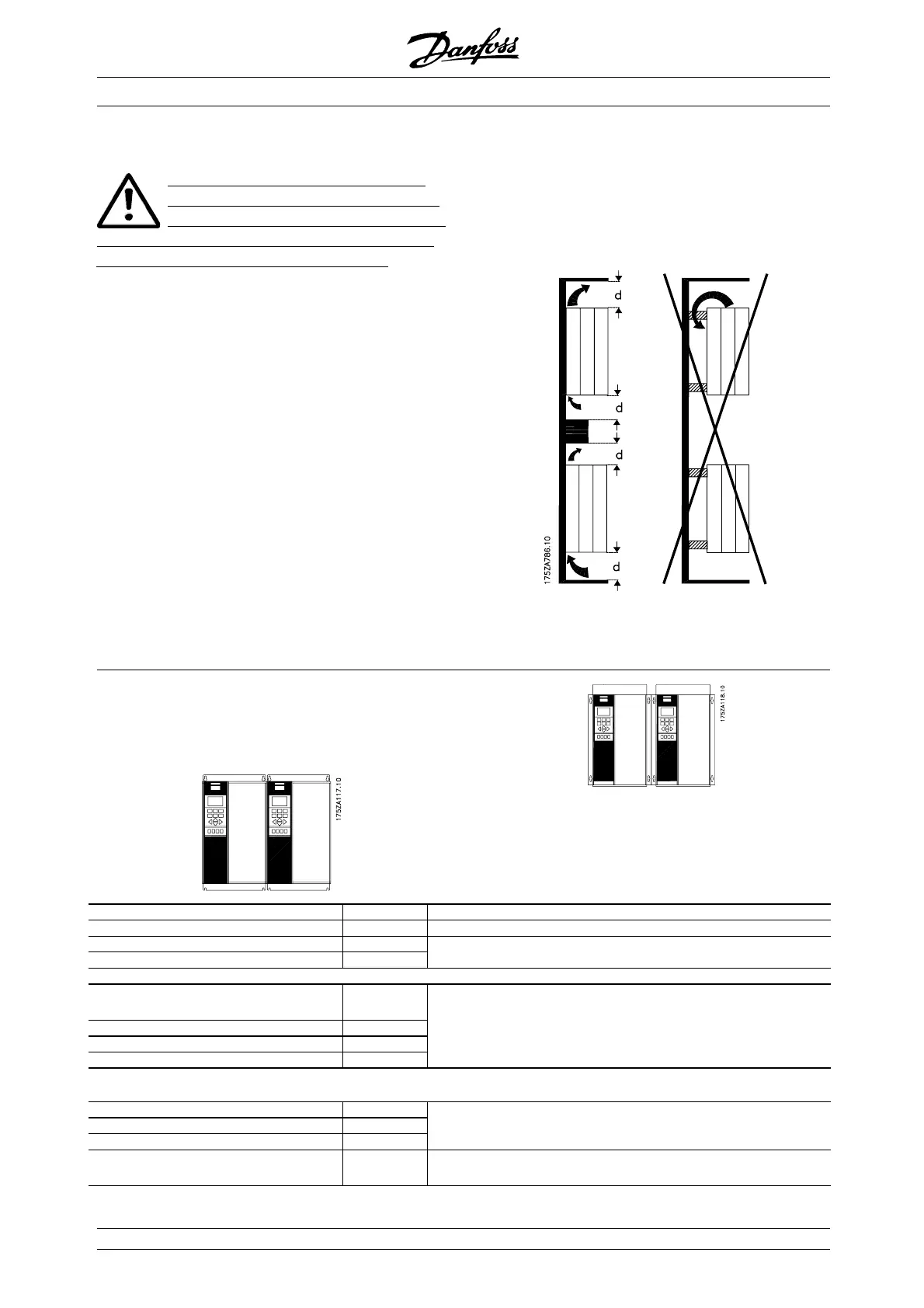

The frequency converter must be installed vertically.
The frequency converter is cooled by means of air
circulation. For the unit to be able to release its cooling
air, the minimum distance over and below the unit
must be as shown in the illustration below.
To protect the unit from overheating, it must be ensured
that the ambient temperature does not rise above the
max. temperature stated for the frequency converter
and that the 24-hour average temperature is not
exceeded. The max. temperature and 24-hour average
can be seen from the General Technical Data.
If the ambient temperature is in the range of 45°C -55°
C, derating of the frequency converter will become
relevant, see Derating for ambient temperature.
The service life of the frequency converter will
be reduced if derating for ambient temperature
is not taken into account.
■ Installation of VLT 8006-8652
All frequency converters must be installed in a
way that ensures proper cooling.
Cooling
All units require a minimum space above and
below the enclosure.
Side by side/flange by flange
All frequency converters can be mounted side
by side/flange by flange.
d [mm/in] Comments
Compact (all enclosure types)
VLT 8006-8011,
380-480 V
100/3.9
VLT 8002-8011, 525-600 V 100/3.9
Installation on a plane, vertical surface (no spacers)
VLT 8006-8032, 20
0-240 V
200/7.9
VLT 8016-8072 380-480 V 200/7.9
VLT 8102-8122 380-480 V 225/8.9
VLT 8016-8072 525-600 V 200/7.9
Installation on a plane, vertical surface (no spacers)
VLT 8042-8062, 200-240 V 225/8.9
VLT 8152-8352, 380-480 V 225/8.9
VLT 8052-8402, 525-690 V 225/8.9
Installation on a plane, vertical surface (no spacers)
IP 54 filter mats must be changed when they are dirty.
VLT 8452-8652, 380-480 V
VLT 8502-8652, 525-690 V
225/8.9 IP 00: Above and below enclosure.
IP 21/54: Only above enclosure
MG.83.A2.02 - VLT is a registered Danfoss trademark
54
