Danfoss VLT AHF 005 Installation Instructions

Pressure Signals on Outputs
The frequency converter can be congured to transmit the pressure values on analog output or active status on digital and relay
outputs. Perform the
conguration
in parameter group 5-** Main Menu - Digital In/Out and parameter group 6-** Main Menu - Analog
In/Out. See the wiring diagram in Illustration 1.6.

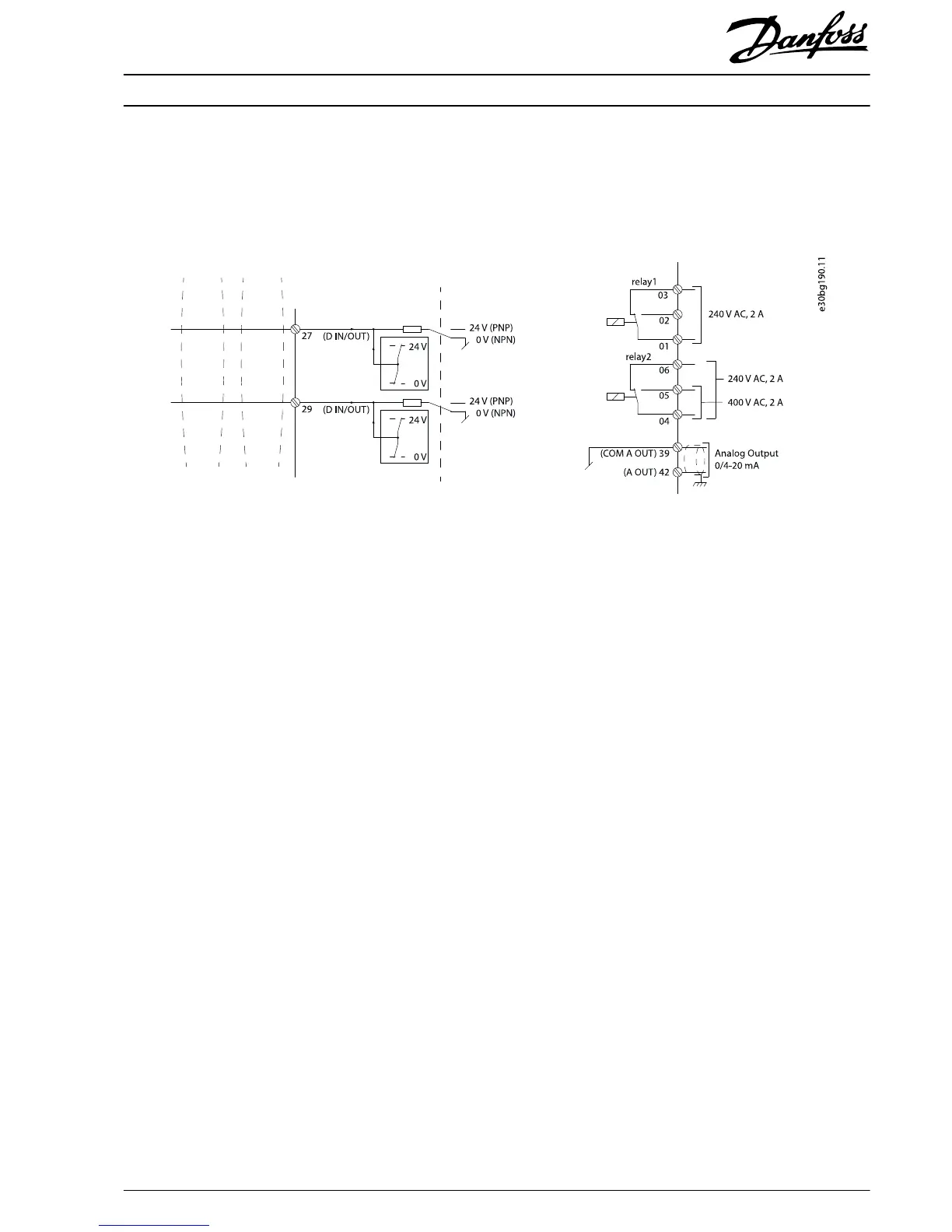

Illustration 1.6 Wiring Diagram
Installation Instructions
Pressure Transmitter Unit PTU 025
VLT
®
HVAC Drive FC 102
MI08A102 Danfoss A/S © 12/2017 All rights reserved. 5
