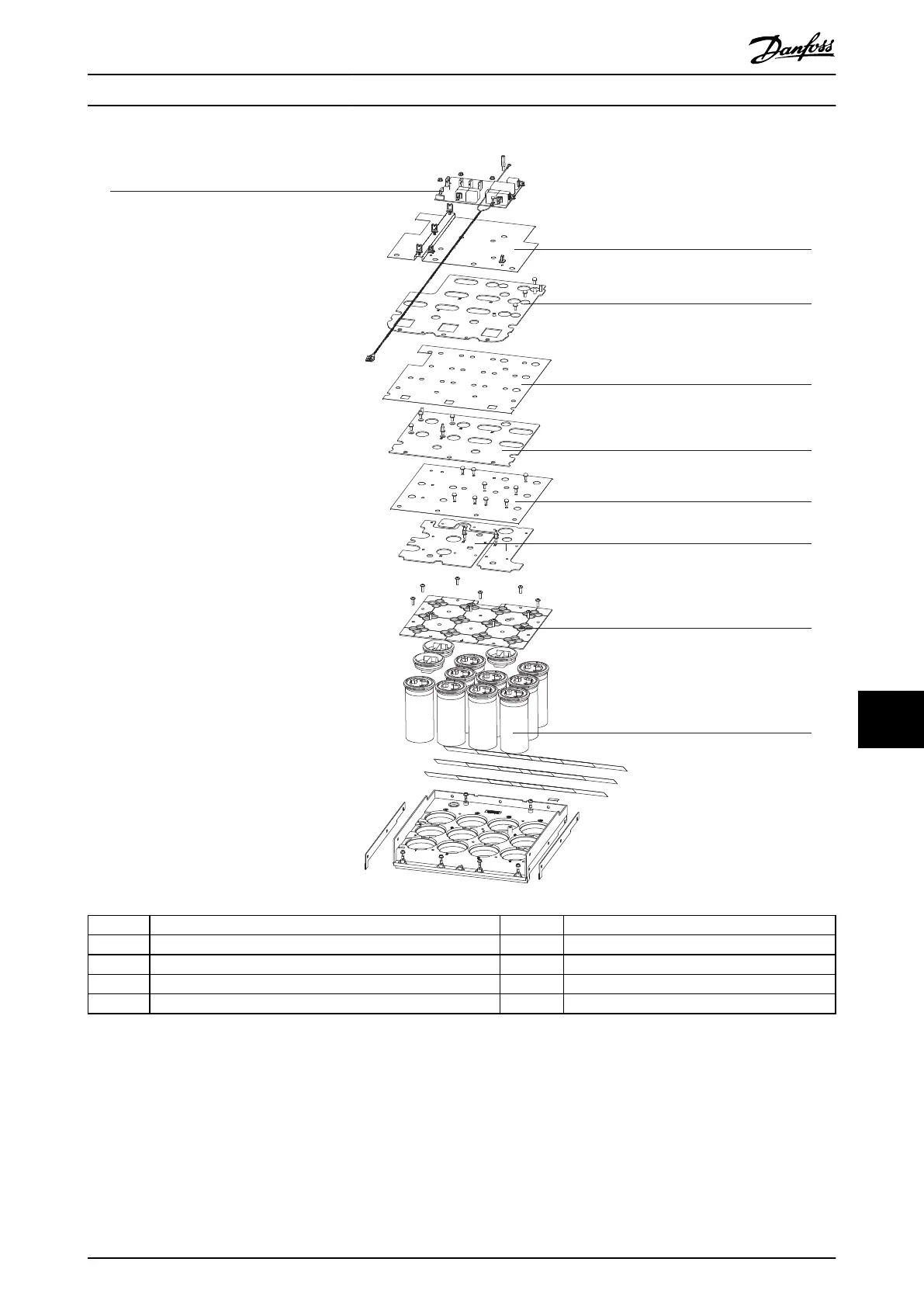

1 Balance/high frequency card 6 Insulator sheet
2 Capacitor bank cover 7 DC center plates
3 DC(+) plate 8 Capacitor locking panel
4 Insulator sheet 9 Standard DC capacitors
5 DC(-) plate – –
Illustration 11.15 Standard DC Capacitors, 690 V AC Unit
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 219
