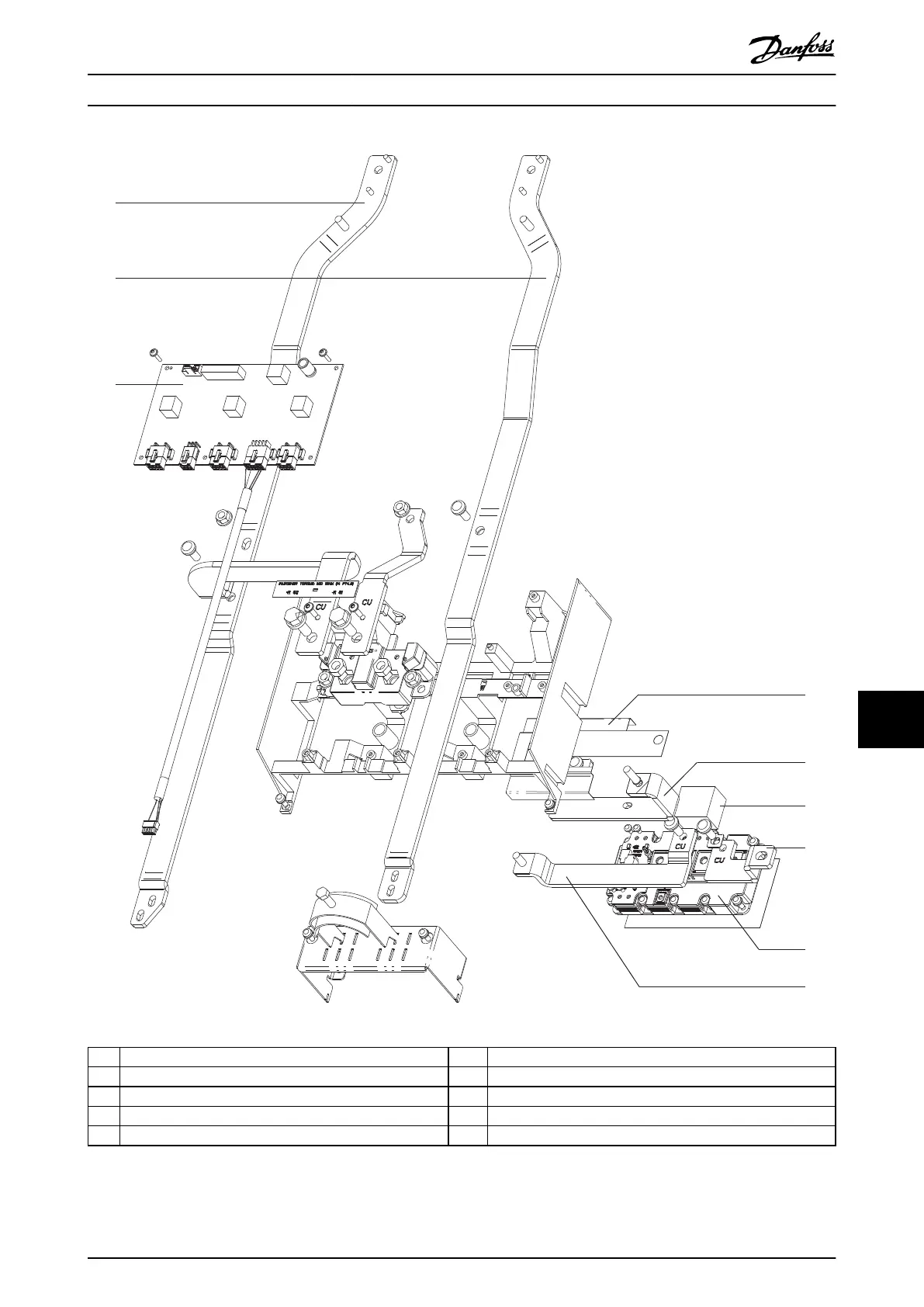

1 DC(+) bus rail 6 Snubber capacitor
2 DC(-) bus rail 7 DC(-) to brake IGBT busbar
3 Gate drive card 8 Brake IGBT module
4 Insulator shield 9 DC(+) to brake IGBT busbar
5 Brake IGBT output to R(-) terminal busbar – –
Illustration 11.30 Brake IGBT Module
