Danfoss VLT AQUA Drive FC 202 Service Guide

130BF764.10
1
2
3
4
5
6
7
8
9
10
1 MK802 (to DC power) 6 Fan power card
2 MK803 (to power card MK902) 7 Power card mounting plate
3 Plastic stando 8 MK602 (to door/top fans)
4 MK1200 (to inrush card and power card MK105) 9 MK600 (to heat sink fans)
5 Cable retaining clip 10 Screw (T20)

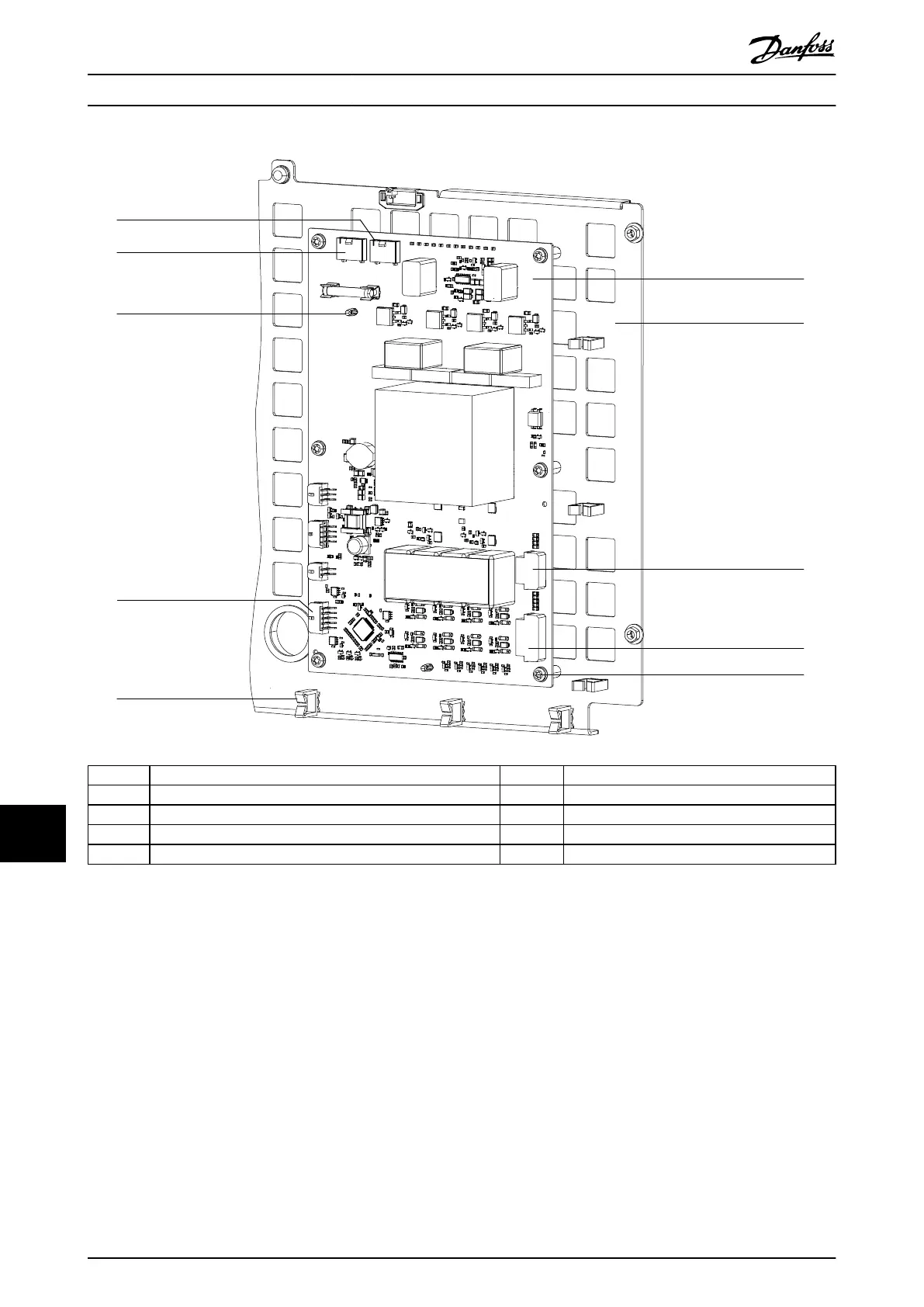

Illustration 13.4 Fan Power Card
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
268 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1313
