Danfoss VLT AQUA Drive FC 202

130BX138.11
Frequency
converter
AC Line
Motor cable
Motor
Stray capacitance Stray capacitance
Ground Potential 1
Potential 2 Potential 3

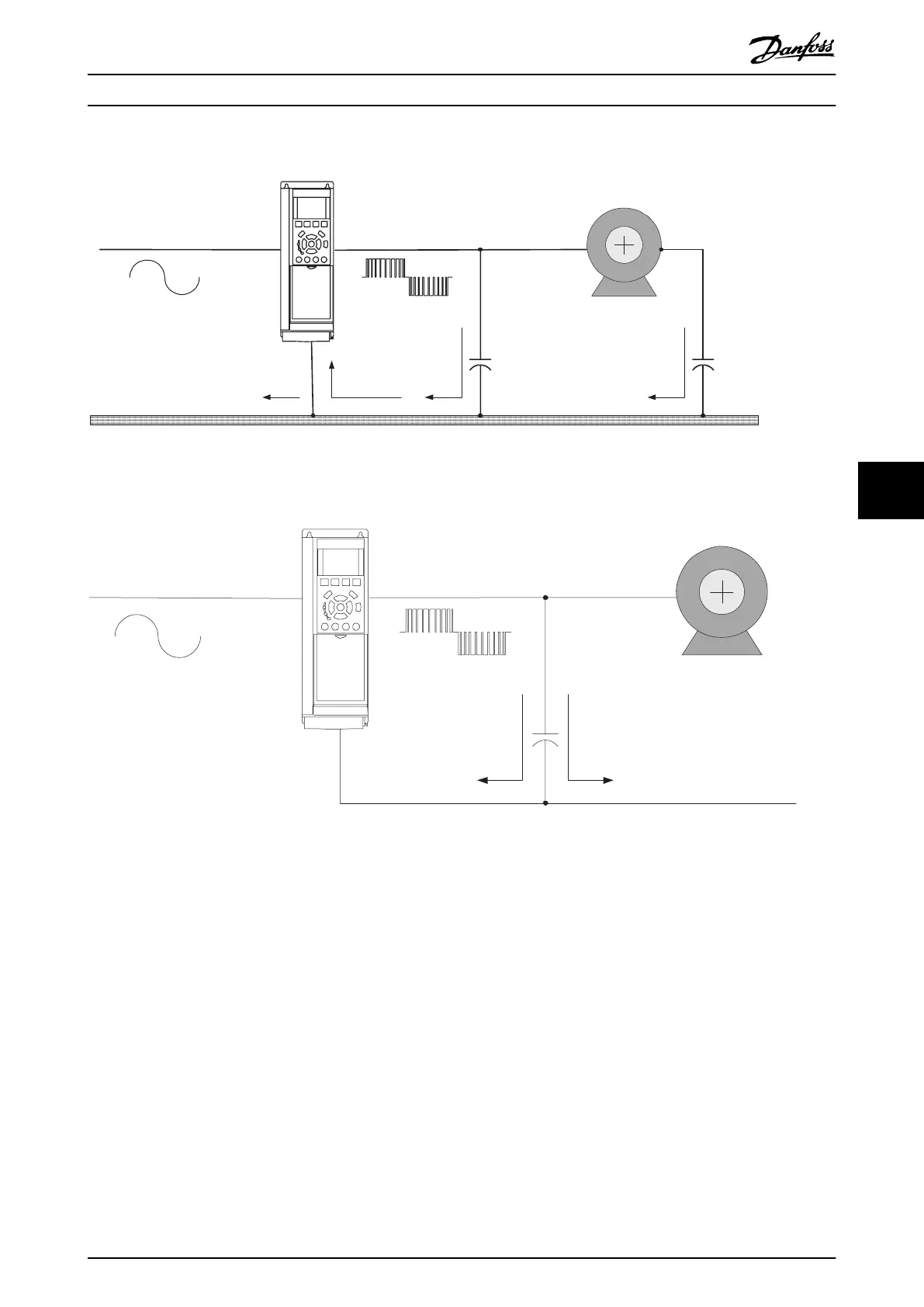

Illustration 7.2 Ground Currents
AC line
Frequency
converter
Motor cable
Motor
Stray capacitance
130BX139.12
Signal wiring to BMS
Illustration 7.3 Signal Conductor Currents
