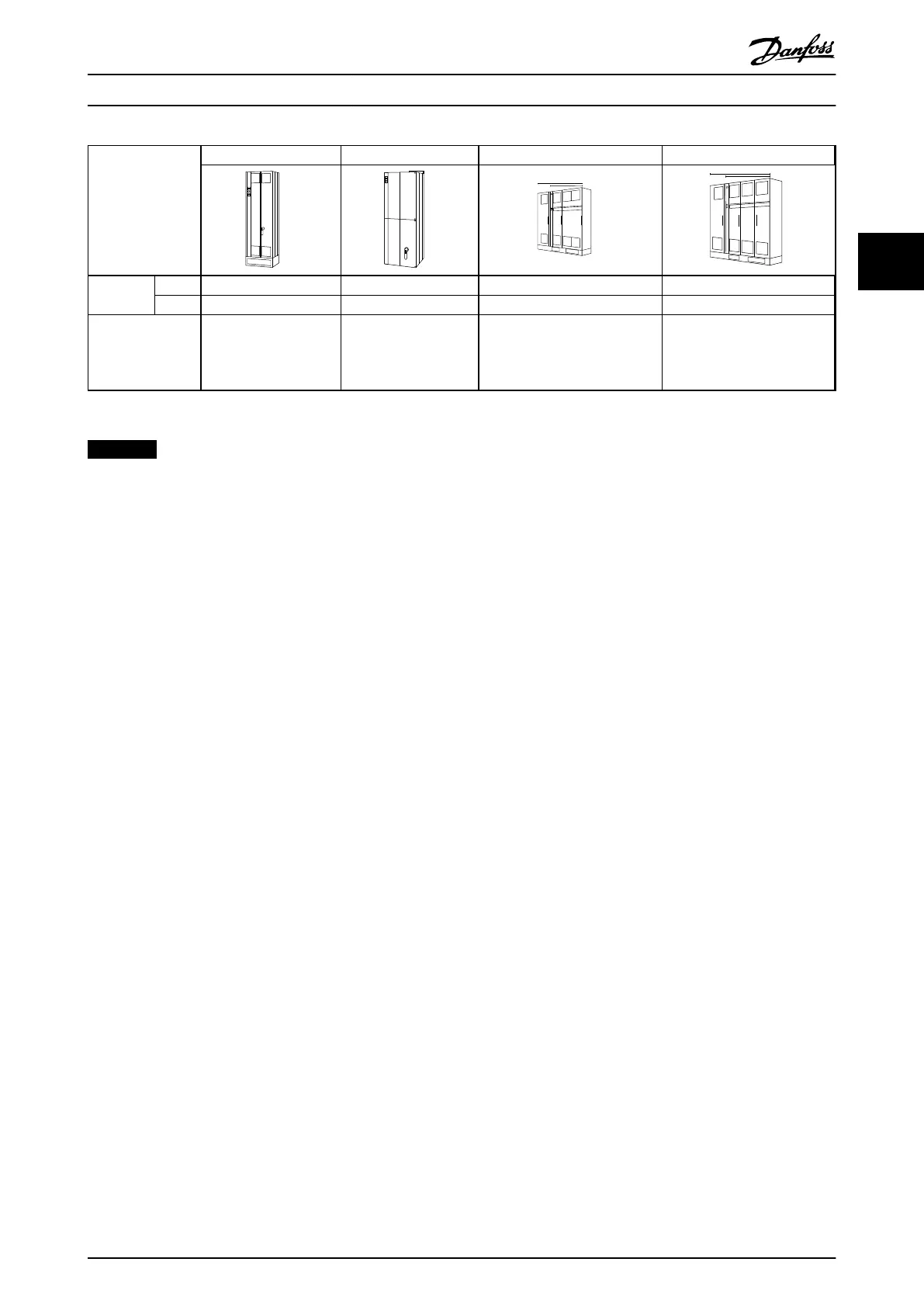

Enclosure type E1 E2 F1/F3 F2/F4
Enclosure
protection
IP 21/54 00 21/54 21/54
NEMA Type 1/Type 12 Chassis Type 1/Type 12 Type 1/Type 12
Normal overload
rated power -
110% overload
torque
315 - 450 kW at 400 V
(380 - 480 V)
450 - 630 kW at 690 V
(525-690 V)
315 - 450 kW at 400 V
(380 - 480 V)
450 - 630 kW at 690 V
(525-690 V)
500 - 710 kW at 400 V
(380 - 480 V)
710 - 900 kW at 690 V
(525-690 V)
800 - 1000 kW at 400 V
(380 - 480 V)
1000 - 1400 kW at 690 V
(525-690 V)
Table 3.6
NOTICE
The F enclosures are available in 4 different sizes, F1, F2, F3 and F4 The F1 and F2 consist of an inverter cabinet on the
right and rectifier cabinet on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The
F3 is an F1 with an additional options cabinet. The F4 is an F2 with an additional options cabinet.
How to Install VLT AQUA Drive FC 202 Operation Instructions
MG20P402 - Rev. 2013-12-16 19
