Danfoss VLT AutomationDrive FC 300 Series Operating Instructions

176FA246.10
U/T1 96
-DC 88
R/L1 91
S/L2 92
T/L3 93
+DC 89
V/T2 97
W/13

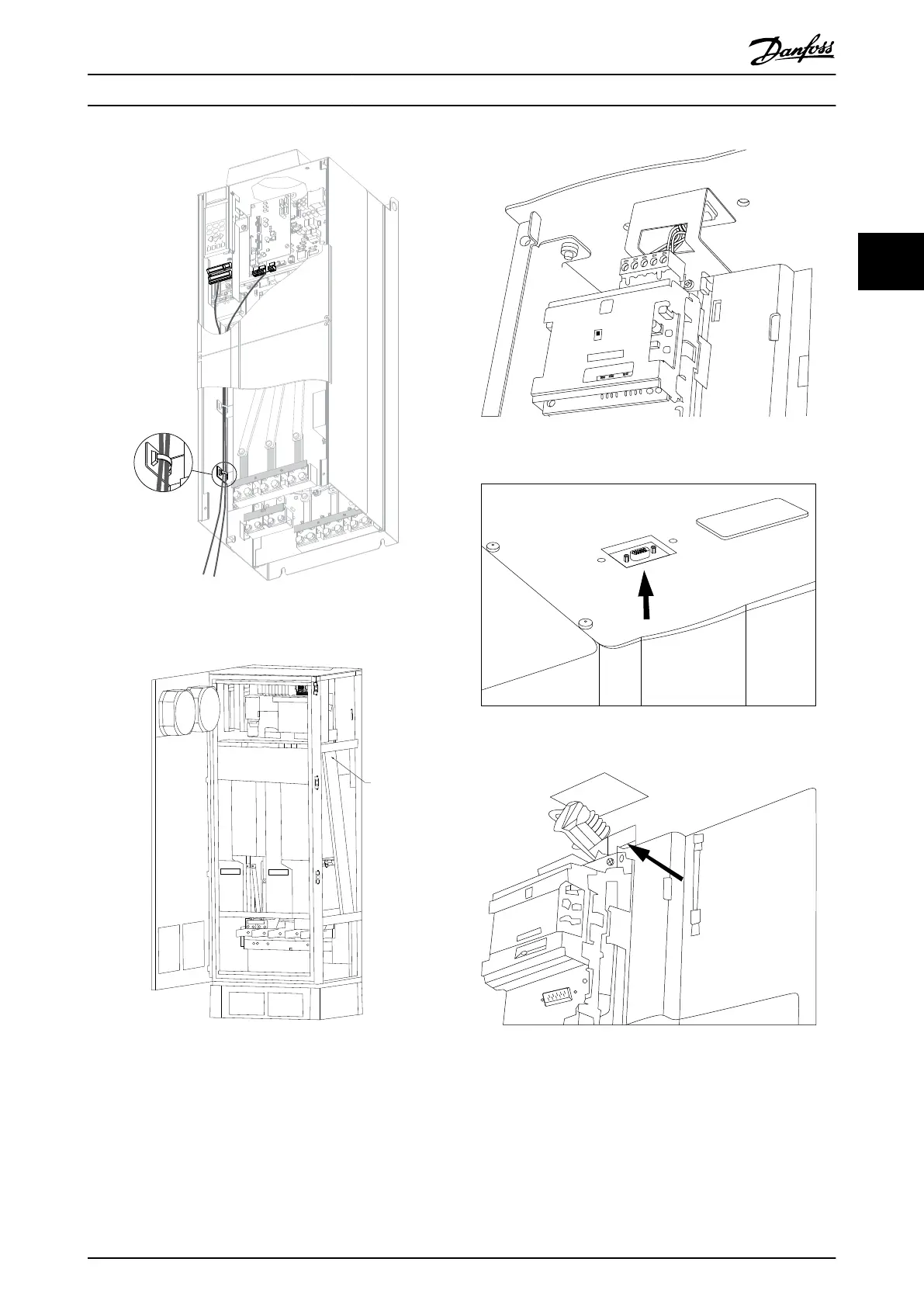

Illustration 3.65 Control Card Wiring Path for the D3. Control
Card Wiring for the D1, D2, D4, E1 and E2 use the same Path
130BB187.10
1
Illustration 3.66 Control Card Wiring Path for the F1/F3.
Control Card Wiring for the F2/F4 use the same Path
In the Chassis (IP00) and NEMA 1 units, it is also possible
to connect the fieldbus from the top of the unit as shown
in the following pictures. On the NEMA 1 unit a cover
plate must be removed.
Kit number for fieldbus top connection: 176F1742
130BA867.10
Probus Option A
FC300 Service
Illustration 3.67 Top Connection for Fieldbus.
130BB255.10
Illustration 3.68
130BB256.10
Illustration 3.69
How to Install
VLT
®
Automation Drive FC 300 Operating Instructions
MG33U402 - Rev. 2013-12-16 71
3 3
