NOTICE
PELV COMPLIANCE
Prevent electric shock by using protective extra low
voltage (PELV) electrical supply and complying with local
and national PELV regulations.
e30bf228.11
L1
L2
L3
PE
PE
u
v
w
2
1
3
5
16
17
18
14
12
8
7
10
9
4
11
13
4
6
15
90
4
1 PLC 10 Mains cable (unshielded)
2
Minimum 16 mm
2
(6 AWG) equalizing cable
11 Output contactor
3 Control cables 12 Cable insulation stripped
4 Minimum 200 mm (7.9 in) between control cables, motor
cables, and mains cables
13 Common ground busbar. Follow local and national
requirements for cabinet grounding
5 Mains supply 14 Brake resistor
6 Bare (unpainted) surface 15 Metal box
7 Star washers 16 Connection to motor
8 Brake cable (shielded) 17 Motor
9 Motor cable (shielded) 18 EMC cable gland

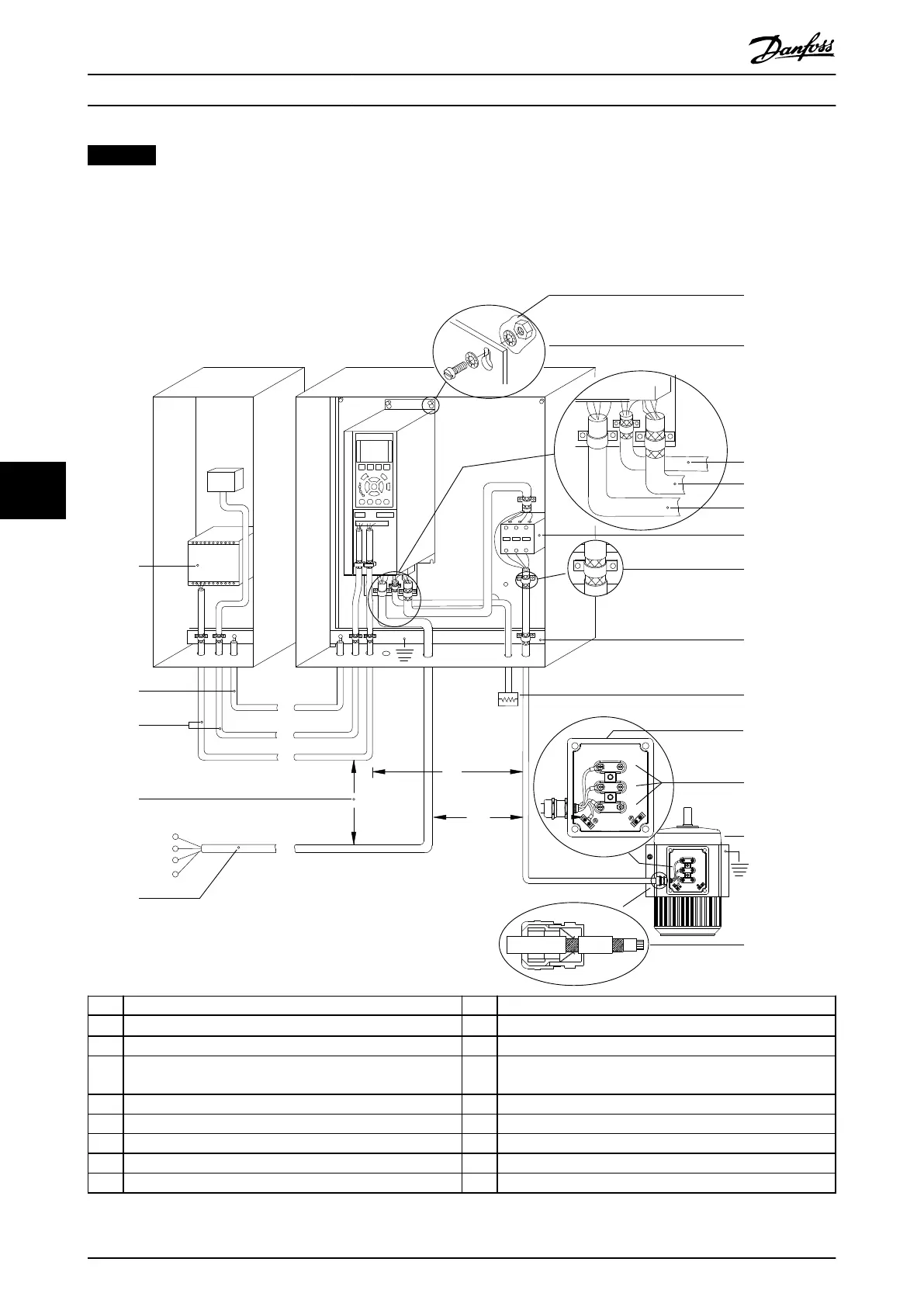

Illustration 7.18 Example of Proper EMC Installation
Electrical Installation Con... VLT® AutomationDrive FC 361
56 Danfoss A/S © 03/2019 All rights reserved. MG06K102
