Danfoss P/N
Typecode
Ω
L±2 mm L±0.08 in L1±2 mm L1±0.04 in
Weight [kg]
175U3474 MCE101A15R5P4K20E21TAW 15.5 660 25.98 630 24.80 29
175U3476 MCE101A13R5P5K50E21TAW 13.5 760 29.92 730 28.74 32.5
Table 9.31 Mechanical Dimensions
1 Torque 1–1.4 Nm (8.85–12.39 lb-in)

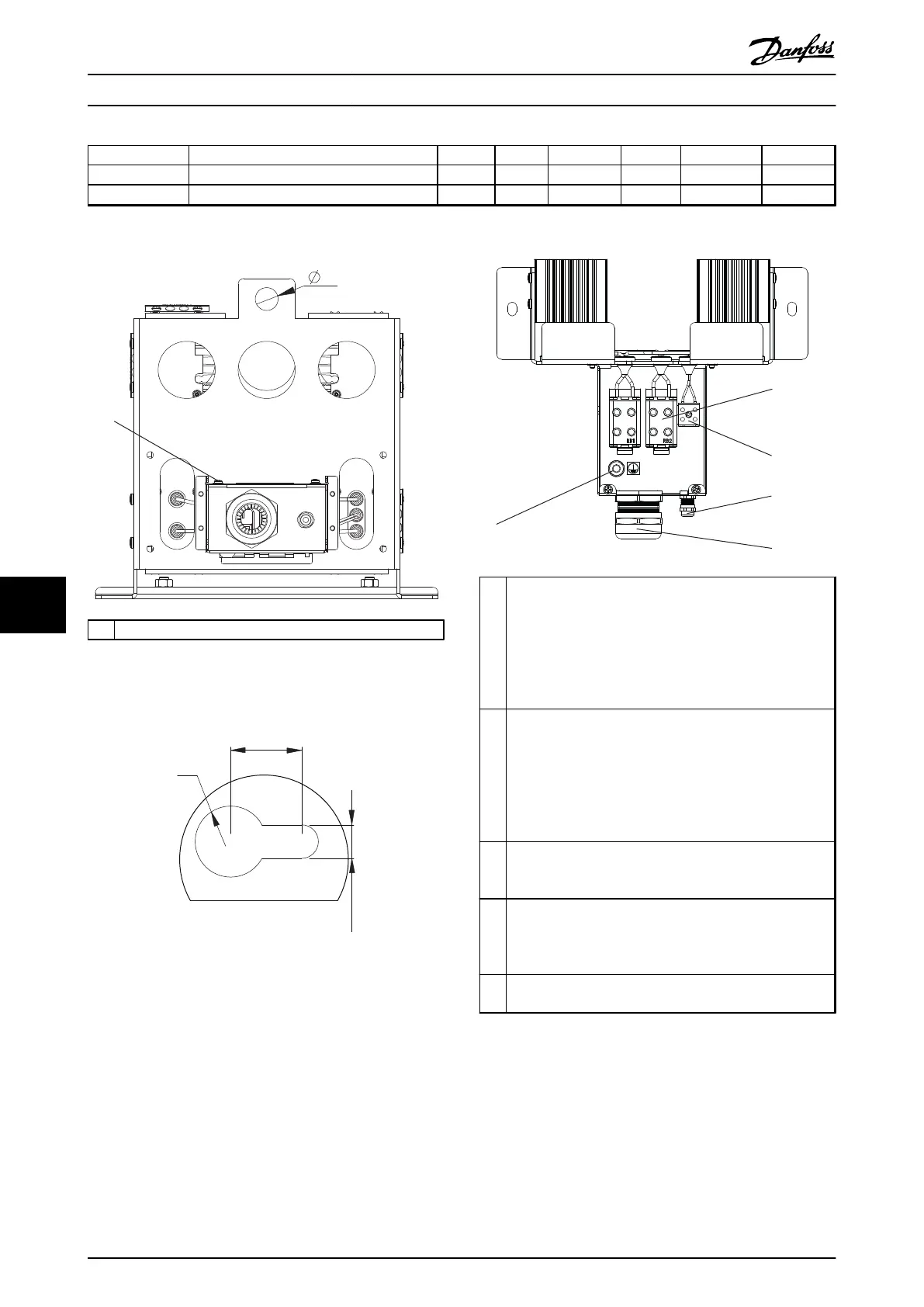

Illustration 9.80 IP21, End View, Connection Box
130BD297.10
[0.71]
18
[0.33]
8.5
[0.35]
R9
Illustration 9.81 Mounting Hole
1 Resistor connection:
Marked RB1/RB2
Type: ENSTO KE 66
IEC: Cu 2.5-50 mm
2
, AI: 6-50 mm
2
/750 V
UL: AWG 6-1/0/600 V
Wire stripping: 23 mm (0.9 in)
Torque: 10 Nm (88.51 lb-in)
2 Temperature switch connection:
Marked: T1/T2
Type: PHOENIX G5/2 with screw connection
IEC: 0.2-4 mm
2
500 V
UL: AWG 24-12/300 V
Wire stripping: 8 mm (0.31 in)
Torque: 0.7 Nm (6.2 lb-in)
3 For temperature switch cable:
Clamping range: 3.5–7.0 mm (0.14–0.28 in)
Size Wrench (SW): 16 mm (0.63 in)
4 For resistor cable:
Cable gland with internal connection for braid
Clamping range: 19-28 mm
Size Wrench (SW): 45 mm (1.78 in)
5 PE: M8
Torque: 4.5–5.5 Nm (39.83–48.68 lb-in)
Illustration 9.82 Connection Box
